EIGRP 실습

router eigrp [AS]

network [목적 네트워크] [wild mask]

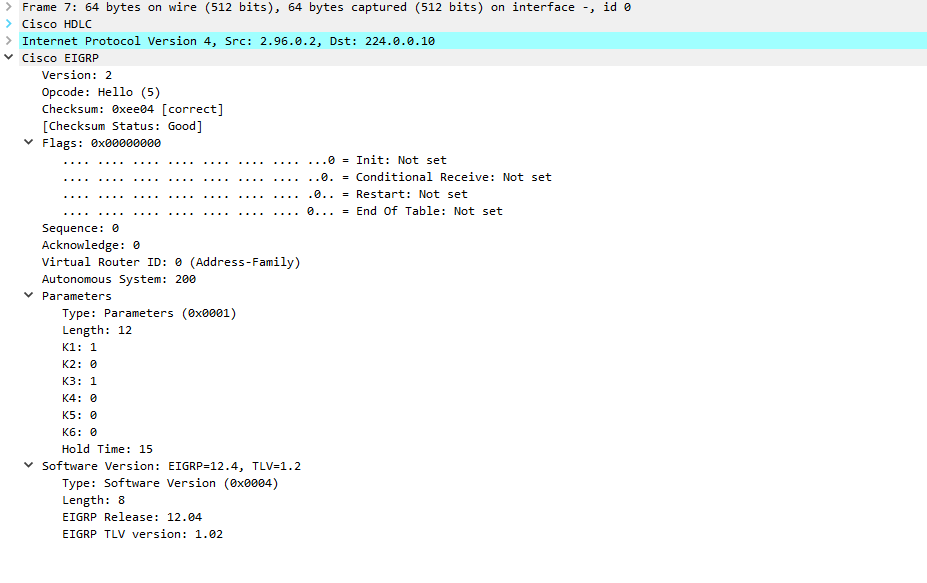

R2 -> R1 EIGRP HELLO 패킷

R1 --> R2 Hello ack 패킷

2.100.0.1 shut down시 R2 --> R1 update 패킷

R1 --> R2 Reply 패킷



R1

R1 sh run

Building configuration...

Current configuration : 1722 bytes
!
upgrade fpd auto
version 12.4
service timestamps debug datetime msec
service timestamps log datetime msec
no service password-encryption
!
hostname R1
!
boot-start-marker
boot-end-marker
!
logging message-counter syslog
!
no aaa new-model
ip source-route
no ip icmp rate-limit unreachable
ip cef
!
!
!
!
no ip domain lookup
no ipv6 cef
!
multilink bundle-name authenticated
!
!
voice dsp waitstate 0
!
!
!
!
!
!
!
!
!
!
!
!
!
memory-size iomem 0
archive
 log config
  hidekeys
!
!
!
!
!
ip tcp synwait-time 5
!
!
!
!
interface Loopback10
 ip address 20.96.0.1 255.252.0.0
!
interface FastEthernet0/0
 no ip address
 shutdown
 duplex half
!
interface Serial1/0
 ip address 2.96.0.1 255.252.0.0
 serial restart-delay 0
!
interface Serial1/1
 no ip address
 shutdown
 serial restart-delay 0
!
interface Serial1/2
 ip address 2.120.0.2 255.252.0.0
 serial restart-delay 0
!
interface Serial1/3
 no ip address
 shutdown
 serial restart-delay 0
!
interface Ethernet2/0
 no ip address
 shutdown
 duplex half
!
interface Ethernet2/1
 no ip address
 shutdown
 duplex half
!
interface Ethernet2/2
 no ip address
 shutdown
 duplex half
!
interface Ethernet2/3
 no ip address
 shutdown
 duplex half
!
router eigrp 200
 network 2.96.0.0 0.3.255.255
 network 2.120.0.0 0.3.255.255
 network 20.96.0.0 0.3.255.255
 no auto-summary
!
ip forward-protocol nd
no ip http server
no ip http secure-server
!
!
!
logging alarm informational
no cdp log mismatch duplex
!
!
!
!
!
!
!
control-plane
!
!
!
mgcp fax t38 ecm
!
!
!
!
gatekeeper
 shutdown
!
!
line con 0
 exec-timeout 0 0
 privilege level 15
 logging synchronous
 stopbits 1
line aux 0
 exec-timeout 0 0
 privilege level 15
 logging synchronous
 stopbits 1
line vty 0 4
 login
!
end

R1 sh ip eigrp neighbor

IP-EIGRP neighbors for process 200
H   Address                 Interface       Hold Uptime   SRTT   RTO  Q  Seq
                                            (sec)         (ms)       Cnt Num
1   2.96.0.2                Se1/0              6 00:55:33   68   408  0  59
0   2.120.0.1               Se1/2              5 00:55:44   68   408  0  54

R1 sh ip eigrp topology

IP-EIGRP Topology Table for AS(200)/ID(20.96.0.1)

Codes: P - Passive, A - Active, U - Update, Q - Query, R - Reply,
       r - reply Status, s - sia Status

P 20.20.0.0/14, 1 successors, FD is 7425536
        via 2.120.0.1 (7425536/6913536), Serial1/2
P 2.0.0.0/14, 1 successors, FD is 7297536
        via 2.120.0.1 (7297536/6785536), Serial1/2
P 20.16.0.0/14, 1 successors, FD is 6913536
        via 2.120.0.1 (6913536/6401536), Serial1/2
P 2.4.0.0/14, 1 successors, FD is 6785536
        via 2.120.0.1 (6785536/6273536), Serial1/2
P 2.8.0.0/14, 1 successors, FD is 6273536
        via 2.120.0.1 (6273536/5761536), Serial1/2
P 20.24.0.0/14, 1 successors, FD is 7425536
        via 2.120.0.1 (7425536/6913536), Serial1/2
P 2.12.0.0/14, 1 successors, FD is 6273536
        via 2.120.0.1 (6273536/5761536), Serial1/2
P 20.4.0.0/14, 1 successors, FD is 6401536
        via 2.120.0.1 (6401536/5889536), Serial1/2
P 2.16.0.0/14, 1 successors, FD is 6785536
        via 2.120.0.1 (6785536/6273536), Serial1/2
P 20.0.0.0/14, 1 successors, FD is 6913536
        via 2.120.0.1 (6913536/6401536), Serial1/2
P 2.20.0.0/14, 1 successors, FD is 7297536
        via 2.120.0.1 (7297536/6785536), Serial1/2
P 20.12.0.0/14, 1 successors, FD is 6401536
        via 2.120.0.1 (6401536/5889536), Serial1/2
P 2.24.0.0/14, 1 successors, FD is 7809536
        via 2.120.0.1 (7809536/7297536), Serial1/2
P 20.8.0.0/14, 1 successors, FD is 5889536
        via 2.120.0.1 (5889536/5377536), Serial1/2
P 2.28.0.0/14, 1 successors, FD is 5761536
        via 2.120.0.1 (5761536/5249536), Serial1/2
P 20.52.0.0/14, 1 successors, FD is 4862976
        via 2.120.0.1 (4862976/4350976), Serial1/2
P 2.32.0.0/14, 1 successors, FD is 5758976
        via 2.120.0.1 (5758976/5246976), Serial1/2
P 20.48.0.0/14, 1 successors, FD is 5374976
        via 2.120.0.1 (5374976/4862976), Serial1/2
P 2.36.0.0/14, 1 successors, FD is 6270976
        via 2.120.0.1 (6270976/5758976), Serial1/2
P 2.40.0.0/14, 1 successors, FD is 5246976
        via 2.120.0.1 (5246976/4734976), Serial1/2
P 20.56.0.0/14, 1 successors, FD is 4350976
        via 2.120.0.1 (4350976/3838976), Serial1/2
P 2.44.0.0/14, 1 successors, FD is 5758976
        via 2.120.0.1 (5758976/5246976), Serial1/2
P 20.36.0.0/14, 1 successors, FD is 5374976
        via 2.120.0.1 (5374976/4862976), Serial1/2
P 2.48.0.0/14, 1 successors, FD is 5246976
        via 2.120.0.1 (5246976/4734976), Serial1/2
P 20.32.0.0/14, 1 successors, FD is 5886976
        via 2.120.0.1 (5886976/5374976), Serial1/2
P 2.52.0.0/14, 1 successors, FD is 4734976
        via 2.120.0.1 (4734976/4222976), Serial1/2
P 20.44.0.0/14, 1 successors, FD is 4862976
        via 2.120.0.1 (4862976/4350976), Serial1/2
P 2.56.0.0/14, 1 successors, FD is 4734976
        via 2.120.0.1 (4734976/4222976), Serial1/2
P 20.40.0.0/14, 1 successors, FD is 5886976
        via 2.120.0.1 (5886976/5374976), Serial1/2
P 2.60.0.0/14, 1 successors, FD is 4222976
        via 2.120.0.1 (4222976/3710976), Serial1/2
P 2.64.0.0/14, 1 successors, FD is 5244416
        via 2.120.0.1 (5244416/4732416), Serial1/2
P 2.68.0.0/14, 1 successors, FD is 4732416
        via 2.120.0.1 (4732416/4220416), Serial1/2
P 2.72.0.0/14, 1 successors, FD is 4220416
        via 2.120.0.1 (4220416/3708416), Serial1/2
P 2.76.0.0/14, 1 successors, FD is 3708416
        via 2.120.0.1 (3708416/3196416), Serial1/2
P 2.80.0.0/14, 1 successors, FD is 3708416
        via 2.120.0.1 (3708416/3196416), Serial1/2
P 20.64.0.0/12, 1 successors, FD is 4860416
        via 2.120.0.1 (4860416/4348416), Serial1/2
P 2.84.0.0/14, 1 successors, FD is 4220416
        via 2.120.0.1 (4220416/3708416), Serial1/2
P 2.88.0.0/14, 1 successors, FD is 4732416
        via 2.120.0.1 (4732416/4220416), Serial1/2
P 2.92.0.0/14, 1 successors, FD is 3196416
        via 2.120.0.1 (3196416/2684416), Serial1/2
P 20.116.0.0/14, 1 successors, FD is 2809856
        via 2.120.0.1 (2809856/2297856), Serial1/2
P 2.96.0.0/14, 1 successors, FD is 2169856
        via Connected, Serial1/0
P 20.112.0.0/14, 1 successors, FD is 3321856
        via 2.120.0.1 (3321856/2809856), Serial1/2
P 2.100.0.0/14, 1 successors, FD is 2681856
        via 2.96.0.2 (2681856/2169856), Serial1/0
P 2.104.0.0/14, 1 successors, FD is 3193856
        via 2.96.0.2 (3193856/2681856), Serial1/0
P 20.120.0.0/14, 1 successors, FD is 2297856
        via 2.120.0.1 (2297856/128256), Serial1/2
P 2.108.0.0/14, 2 successors, FD is 3705856
        via 2.96.0.2 (3705856/3193856), Serial1/0
        via 2.120.0.1 (3705856/3193856), Serial1/2
P 20.100.0.0/14, 1 successors, FD is 2297856
        via 2.96.0.2 (2297856/128256), Serial1/0
P 2.112.0.0/14, 1 successors, FD is 3193856
        via 2.120.0.1 (3193856/2681856), Serial1/2
P 20.96.0.0/12, 1 successors, FD is 3836416
        via 2.120.0.1 (3836416/3324416), Serial1/2
P 20.96.0.0/14, 1 successors, FD is 128256
        via Connected, Loopback10
P 2.116.0.0/14, 1 successors, FD is 2681856
        via 2.120.0.1 (2681856/2169856), Serial1/2
P 20.108.0.0/14, 1 successors, FD is 3321856
        via 2.96.0.2 (3321856/2809856), Serial1/0
P 2.120.0.0/14, 1 successors, FD is 2169856
        via Connected, Serial1/2
P 20.104.0.0/14, 1 successors, FD is 2809856
        via 2.96.0.2 (2809856/2297856), Serial1/0
P 2.124.0.0/14, 1 successors, FD is 3196416
        via 2.96.0.2 (3196416/2684416), Serial1/0
P 2.128.0.0/14, 1 successors, FD is 4220416
        via 2.96.0.2 (4220416/3708416), Serial1/0
P 2.132.0.0/14, 1 successors, FD is 5756416
        via 2.96.0.2 (5756416/5244416), Serial1/0
P 2.136.0.0/14, 1 successors, FD is 5244416
        via 2.96.0.2 (5244416/4732416), Serial1/0
P 2.140.0.0/14, 1 successors, FD is 4732416
        via 2.96.0.2 (4732416/4220416), Serial1/0
P 2.144.0.0/14, 1 successors, FD is 4220416
        via 2.96.0.2 (4220416/3708416), Serial1/0
P 20.128.0.0/14, 1 successors, FD is 3836416
        via 2.96.0.2 (3836416/3324416), Serial1/0
P 2.148.0.0/14, 1 successors, FD is 3708416
        via 2.96.0.2 (3708416/3196416), Serial1/0
P 20.140.0.0/14, 1 successors, FD is 4860416
        via 2.96.0.2 (4860416/4348416), Serial1/0
P 2.152.0.0/14, 1 successors, FD is 3708416
        via 2.96.0.2 (3708416/3196416), Serial1/0
P 2.156.0.0/14, 1 successors, FD is 4222976
        via 2.96.0.2 (4222976/3710976), Serial1/0
P 2.192.2.0/24, 1 successors, FD is 4299776
        via 2.96.0.2 (4299776/3787776), Serial1/0
P 2.192.3.0/24, 1 successors, FD is 4274176
        via 2.96.0.2 (4274176/3762176), Serial1/0
P 2.192.1.0/24, 1 successors, FD is 4325376
        via 2.96.0.2 (4325376/3813376), Serial1/0
P 2.192.6.0/24, 1 successors, FD is 4274176
        via 2.96.0.2 (4274176/3762176), Serial1/0
P 2.192.7.0/24, 1 successors, FD is 4248576
        via 2.96.0.2 (4248576/3736576), Serial1/0
P 2.192.4.0/24, 1 successors, FD is 4248576
        via 2.96.0.2 (4248576/3736576), Serial1/0
P 2.192.5.0/24, 1 successors, FD is 4299776
        via 2.96.0.2 (4299776/3787776), Serial1/0
P 20.192.4.0/24, 1 successors, FD is 4376576
        via 2.96.0.2 (4376576/3864576), Serial1/0
P 20.192.5.0/24, 1 successors, FD is 4402176
        via 2.96.0.2 (4402176/3890176), Serial1/0
P 20.192.6.0/24, 1 successors, FD is 4376576
        via 2.96.0.2 (4376576/3864576), Serial1/0
P 20.192.7.0/24, 1 successors, FD is 4350976
        via 2.96.0.2 (4350976/3838976), Serial1/0
P 20.192.1.0/24, 1 successors, FD is 4427776
        via 2.96.0.2 (4427776/3915776), Serial1/0
P 20.192.2.0/24, 1 successors, FD is 4427776
        via 2.96.0.2 (4427776/3915776), Serial1/0
P 20.192.3.0/24, 1 successors, FD is 4402176
        via 2.96.0.2 (4402176/3890176), Serial1/0

R2

R2 sh run

Building configuration...

Current configuration : 1724 bytes
!
upgrade fpd auto
version 12.4
service timestamps debug datetime msec
service timestamps log datetime msec
no service password-encryption
!
hostname R2
!
boot-start-marker
boot-end-marker
!
logging message-counter syslog
!
no aaa new-model
ip source-route
no ip icmp rate-limit unreachable
ip cef
!
!
!
!
no ip domain lookup
no ipv6 cef
!
multilink bundle-name authenticated
!
!
voice dsp waitstate 0
!
!
!
!
!
!
!
!
!
!
!
!
!
memory-size iomem 0
archive
 log config
  hidekeys
!
!
!
!
!
ip tcp synwait-time 5
!
!
!
!
interface Loopback10
 ip address 20.100.0.1 255.252.0.0
!
interface FastEthernet0/0
 no ip address
 shutdown
 duplex half
!
interface Serial1/0
 ip address 2.96.0.2 255.252.0.0
 serial restart-delay 0
!
interface Serial1/1
 ip address 2.100.0.1 255.252.0.0
 serial restart-delay 0
!
interface Serial1/2
 no ip address
 shutdown
 serial restart-delay 0
!
interface Serial1/3
 no ip address
 shutdown
 serial restart-delay 0
!
interface Ethernet2/0
 no ip address
 shutdown
 duplex half
!
interface Ethernet2/1
 no ip address
 shutdown
 duplex half
!
interface Ethernet2/2
 no ip address
 shutdown
 duplex half
!
interface Ethernet2/3
 no ip address
 shutdown
 duplex half
!
router eigrp 200
 network 2.96.0.0 0.3.255.255
 network 2.100.0.0 0.3.255.255
 network 20.100.0.0 0.3.255.255
 no auto-summary
!
ip forward-protocol nd
no ip http server
no ip http secure-server
!
!
!
logging alarm informational
no cdp log mismatch duplex
!
!
!
!
!
!
!
control-plane
!
!
!
mgcp fax t38 ecm
!
!
!
!
gatekeeper
 shutdown
!
!
line con 0
 exec-timeout 0 0
 privilege level 15
 logging synchronous
 stopbits 1
line aux 0
 exec-timeout 0 0
 privilege level 15
 logging synchronous
 stopbits 1
line vty 0 4
 login
!
end

R2 sh ip eigrp neighbor

IP-EIGRP neighbors for process 200
H   Address                 Interface       Hold Uptime   SRTT   RTO  Q  Seq
                                            (sec)         (ms)       Cnt Num
0   2.100.0.2               Se1/1              6 00:25:56   45   270  0  65
1   2.96.0.1                Se1/0              8 00:59:47   45   270  0  50

R2 sh ip eigrp topology

IP-EIGRP Topology Table for AS(200)/ID(20.100.0.1)

Codes: P - Passive, A - Active, U - Update, Q - Query, R - Reply,
       r - reply Status, s - sia Status

P 20.20.0.0/14, 1 successors, FD is 7425536
        via 2.100.0.2 (7425536/6913536), Serial1/1
P 2.0.0.0/14, 1 successors, FD is 7297536
        via 2.100.0.2 (7297536/6785536), Serial1/1
P 20.16.0.0/14, 1 successors, FD is 6913536
        via 2.100.0.2 (6913536/6401536), Serial1/1
P 2.4.0.0/14, 1 successors, FD is 6785536
        via 2.100.0.2 (6785536/6273536), Serial1/1
P 2.8.0.0/14, 1 successors, FD is 6273536
        via 2.100.0.2 (6273536/5761536), Serial1/1
P 20.24.0.0/14, 1 successors, FD is 7425536
        via 2.100.0.2 (7425536/6913536), Serial1/1
P 2.12.0.0/14, 1 successors, FD is 6273536
        via 2.100.0.2 (6273536/5761536), Serial1/1
P 20.4.0.0/14, 1 successors, FD is 6401536
        via 2.100.0.2 (6401536/5889536), Serial1/1
P 2.16.0.0/14, 1 successors, FD is 6785536
        via 2.100.0.2 (6785536/6273536), Serial1/1
P 20.0.0.0/14, 1 successors, FD is 6913536
        via 2.100.0.2 (6913536/6401536), Serial1/1
P 2.20.0.0/14, 1 successors, FD is 7297536
        via 2.100.0.2 (7297536/6785536), Serial1/1
P 20.12.0.0/14, 1 successors, FD is 6401536
        via 2.100.0.2 (6401536/5889536), Serial1/1
P 2.24.0.0/14, 1 successors, FD is 7809536
        via 2.100.0.2 (7809536/7297536), Serial1/1
P 20.8.0.0/14, 1 successors, FD is 5889536
        via 2.100.0.2 (5889536/5377536), Serial1/1
P 2.28.0.0/14, 1 successors, FD is 5761536
        via 2.100.0.2 (5761536/5249536), Serial1/1
P 20.52.0.0/14, 1 successors, FD is 4862976
        via 2.100.0.2 (4862976/4350976), Serial1/1
P 2.32.0.0/14, 1 successors, FD is 5758976
        via 2.100.0.2 (5758976/5246976), Serial1/1
P 20.48.0.0/14, 1 successors, FD is 5374976
        via 2.100.0.2 (5374976/4862976), Serial1/1
P 2.36.0.0/14, 1 successors, FD is 6270976
        via 2.100.0.2 (6270976/5758976), Serial1/1
P 2.40.0.0/14, 1 successors, FD is 5246976
        via 2.100.0.2 (5246976/4734976), Serial1/1
P 20.56.0.0/14, 1 successors, FD is 4350976
        via 2.100.0.2 (4350976/3838976), Serial1/1
P 2.44.0.0/14, 1 successors, FD is 5758976
        via 2.100.0.2 (5758976/5246976), Serial1/1
P 20.36.0.0/14, 1 successors, FD is 5374976
        via 2.100.0.2 (5374976/4862976), Serial1/1
P 2.48.0.0/14, 1 successors, FD is 5246976
        via 2.100.0.2 (5246976/4734976), Serial1/1
P 20.32.0.0/14, 1 successors, FD is 5886976
        via 2.100.0.2 (5886976/5374976), Serial1/1
P 2.52.0.0/14, 1 successors, FD is 4734976
        via 2.100.0.2 (4734976/4222976), Serial1/1
P 20.44.0.0/14, 1 successors, FD is 4862976
        via 2.100.0.2 (4862976/4350976), Serial1/1
P 2.56.0.0/14, 1 successors, FD is 4734976
        via 2.100.0.2 (4734976/4222976), Serial1/1
P 20.40.0.0/14, 1 successors, FD is 5886976
        via 2.100.0.2 (5886976/5374976), Serial1/1
P 2.60.0.0/14, 1 successors, FD is 4222976
        via 2.100.0.2 (4222976/3710976), Serial1/1
P 2.64.0.0/14, 1 successors, FD is 5244416
        via 2.100.0.2 (5244416/4732416), Serial1/1
P 2.68.0.0/14, 1 successors, FD is 4732416
        via 2.100.0.2 (4732416/4220416), Serial1/1
P 2.72.0.0/14, 1 successors, FD is 4220416
        via 2.100.0.2 (4220416/3708416), Serial1/1
P 2.76.0.0/14, 1 successors, FD is 3708416
        via 2.100.0.2 (3708416/3196416), Serial1/1
P 2.80.0.0/14, 1 successors, FD is 3708416
        via 2.100.0.2 (3708416/3196416), Serial1/1
P 20.64.0.0/12, 1 successors, FD is 4860416
        via 2.100.0.2 (4860416/4348416), Serial1/1
P 2.84.0.0/14, 1 successors, FD is 4220416
        via 2.100.0.2 (4220416/3708416), Serial1/1
P 2.88.0.0/14, 1 successors, FD is 4732416
        via 2.100.0.2 (4732416/4220416), Serial1/1
P 2.92.0.0/14, 1 successors, FD is 3196416
        via 2.100.0.2 (3196416/2684416), Serial1/1
P 20.116.0.0/14, 1 successors, FD is 3321856
        via 2.96.0.1 (3321856/2809856), Serial1/0
P 2.96.0.0/14, 1 successors, FD is 2169856
        via Connected, Serial1/0
P 20.112.0.0/14, 1 successors, FD is 3321856
        via 2.100.0.2 (3321856/2809856), Serial1/1
P 2.100.0.0/14, 1 successors, FD is 2169856
        via Connected, Serial1/1
P 2.104.0.0/14, 1 successors, FD is 2681856
        via 2.100.0.2 (2681856/2169856), Serial1/1
P 20.120.0.0/14, 1 successors, FD is 2809856
        via 2.96.0.1 (2809856/2297856), Serial1/0
P 2.108.0.0/14, 1 successors, FD is 3193856
        via 2.100.0.2 (3193856/2681856), Serial1/1
P 20.100.0.0/14, 1 successors, FD is 128256
        via Connected, Loopback10
P 2.112.0.0/14, 2 successors, FD is 3705856
        via 2.96.0.1 (3705856/3193856), Serial1/0
        via 2.100.0.2 (3705856/3193856), Serial1/1
P 20.96.0.0/12, 1 successors, FD is 3836416
        via 2.100.0.2 (3836416/3324416), Serial1/1
P 20.96.0.0/14, 1 successors, FD is 2297856
        via 2.96.0.1 (2297856/128256), Serial1/0
P 2.116.0.0/14, 1 successors, FD is 3193856
        via 2.96.0.1 (3193856/2681856), Serial1/0
P 20.108.0.0/14, 1 successors, FD is 2809856
        via 2.100.0.2 (2809856/2297856), Serial1/1
P 2.120.0.0/14, 1 successors, FD is 2681856
        via 2.96.0.1 (2681856/2169856), Serial1/0
P 20.104.0.0/14, 1 successors, FD is 2297856
        via 2.100.0.2 (2297856/128256), Serial1/1
P 2.124.0.0/14, 1 successors, FD is 2684416
        via 2.100.0.2 (2684416/2172416), Serial1/1
P 2.128.0.0/14, 1 successors, FD is 3708416
        via 2.100.0.2 (3708416/3196416), Serial1/1
P 2.132.0.0/14, 1 successors, FD is 5244416
        via 2.100.0.2 (5244416/4732416), Serial1/1
P 2.136.0.0/14, 1 successors, FD is 4732416
        via 2.100.0.2 (4732416/4220416), Serial1/1
P 2.140.0.0/14, 1 successors, FD is 4220416
        via 2.100.0.2 (4220416/3708416), Serial1/1
P 2.144.0.0/14, 1 successors, FD is 3708416
        via 2.100.0.2 (3708416/3196416), Serial1/1
P 20.128.0.0/14, 1 successors, FD is 3324416
        via 2.100.0.2 (3324416/2812416), Serial1/1
P 2.148.0.0/14, 1 successors, FD is 3196416
        via 2.100.0.2 (3196416/2684416), Serial1/1
P 20.140.0.0/14, 1 successors, FD is 4348416
        via 2.100.0.2 (4348416/3836416), Serial1/1
P 2.152.0.0/14, 1 successors, FD is 3196416
        via 2.100.0.2 (3196416/2684416), Serial1/1
P 2.156.0.0/14, 1 successors, FD is 3710976
        via 2.100.0.2 (3710976/3198976), Serial1/1
P 2.192.2.0/24, 1 successors, FD is 3787776
        via 2.100.0.2 (3787776/3275776), Serial1/1
P 2.192.3.0/24, 1 successors, FD is 3762176
        via 2.100.0.2 (3762176/3250176), Serial1/1
P 2.192.1.0/24, 1 successors, FD is 3813376
        via 2.100.0.2 (3813376/3301376), Serial1/1
P 2.192.6.0/24, 1 successors, FD is 3762176
        via 2.100.0.2 (3762176/3250176), Serial1/1
P 2.192.7.0/24, 1 successors, FD is 3736576
        via 2.100.0.2 (3736576/3224576), Serial1/1
P 2.192.4.0/24, 1 successors, FD is 3736576
        via 2.100.0.2 (3736576/3224576), Serial1/1
P 2.192.5.0/24, 1 successors, FD is 3787776
        via 2.100.0.2 (3787776/3275776), Serial1/1
P 20.192.4.0/24, 1 successors, FD is 3864576
        via 2.100.0.2 (3864576/3352576), Serial1/1
P 20.192.5.0/24, 1 successors, FD is 3890176
        via 2.100.0.2 (3890176/3378176), Serial1/1
P 20.192.6.0/24, 1 successors, FD is 3864576
        via 2.100.0.2 (3864576/3352576), Serial1/1
P 20.192.7.0/24, 1 successors, FD is 3838976
        via 2.100.0.2 (3838976/3326976), Serial1/1
P 20.192.1.0/24, 1 successors, FD is 3915776
        via 2.100.0.2 (3915776/3403776), Serial1/1
P 20.192.2.0/24, 1 successors, FD is 3915776
        via 2.100.0.2 (3915776/3403776), Serial1/1
P 20.192.3.0/24, 1 successors, FD is 3890176
        via 2.100.0.2 (3890176/3378176), Serial1/1

R3

R3 sh run

Building configuration...

Current configuration : 1726 bytes
!
upgrade fpd auto
version 12.4
service timestamps debug datetime msec
service timestamps log datetime msec
no service password-encryption
!
hostname R3
!
boot-start-marker
boot-end-marker
!
logging message-counter syslog
!
no aaa new-model
ip source-route
no ip icmp rate-limit unreachable
ip cef
!
!
!
!
no ip domain lookup
no ipv6 cef
!
multilink bundle-name authenticated
!
!
voice dsp waitstate 0
!
!
!
!
!
!
!
!
!
!
!
!
!
memory-size iomem 0
archive
 log config
  hidekeys
!
!
!
!
!
ip tcp synwait-time 5
!
!
!
!
interface Loopback10
 ip address 20.104.0.1 255.252.0.0
!
interface FastEthernet0/0
 no ip address
 shutdown
 duplex half
!
interface Serial1/0
 ip address 2.104.0.1 255.252.0.0
 serial restart-delay 0
!
interface Serial1/1
 ip address 2.100.0.2 255.252.0.0
 serial restart-delay 0
!
interface Serial1/2
 no ip address
 shutdown
 serial restart-delay 0
!
interface Serial1/3
 no ip address
 shutdown
 serial restart-delay 0
!
interface Ethernet2/0
 no ip address
 shutdown
 duplex half
!
interface Ethernet2/1
 no ip address
 shutdown
 duplex half
!
interface Ethernet2/2
 no ip address
 shutdown
 duplex half
!
interface Ethernet2/3
 no ip address
 shutdown
 duplex half
!
router eigrp 200
 network 2.100.0.0 0.3.255.255
 network 2.104.0.0 0.3.255.255
 network 20.104.0.0 0.3.255.255
 no auto-summary
!
ip forward-protocol nd
no ip http server
no ip http secure-server
!
!
!
logging alarm informational
no cdp log mismatch duplex
!
!
!
!
!
!
!
control-plane
!
!
!
mgcp fax t38 ecm
!
!
!
!
gatekeeper
 shutdown
!
!
line con 0
 exec-timeout 0 0
 privilege level 15
 logging synchronous
 stopbits 1
line aux 0
 exec-timeout 0 0
 privilege level 15
 logging synchronous
 stopbits 1
line vty 0 4
 login
!
end

R3 sh ip eigrp neighbor

IP-EIGRP neighbors for process 200
H   Address                 Interface       Hold Uptime   SRTT   RTO  Q  Seq
                                            (sec)         (ms)       Cnt Num
0   2.100.0.1               Se1/1              4 00:24:32   54   324  0  57
1   2.104.0.2               Se1/0              3 01:01:35   53   318  0  78

R3 sh ip eigrp topology

IP-EIGRP Topology Table for AS(200)/ID(20.104.0.1)

Codes: P - Passive, A - Active, U - Update, Q - Query, R - Reply,
       r - reply Status, s - sia Status

P 20.20.0.0/14, 1 successors, FD is 6913536
        via 2.104.0.2 (6913536/6401536), Serial1/0
P 2.0.0.0/14, 1 successors, FD is 6785536
        via 2.104.0.2 (6785536/6273536), Serial1/0
P 20.16.0.0/14, 1 successors, FD is 6401536
        via 2.104.0.2 (6401536/5889536), Serial1/0
P 2.4.0.0/14, 1 successors, FD is 6273536
        via 2.104.0.2 (6273536/5761536), Serial1/0
P 2.8.0.0/14, 1 successors, FD is 5761536
        via 2.104.0.2 (5761536/5249536), Serial1/0
P 20.24.0.0/14, 1 successors, FD is 6913536
        via 2.104.0.2 (6913536/6401536), Serial1/0
P 2.12.0.0/14, 1 successors, FD is 5761536
        via 2.104.0.2 (5761536/5249536), Serial1/0
P 20.4.0.0/14, 1 successors, FD is 5889536
        via 2.104.0.2 (5889536/5377536), Serial1/0
P 2.16.0.0/14, 1 successors, FD is 6273536

R4

R4 sh run

Building configuration...

Current configuration : 1766 bytes
!
upgrade fpd auto
version 12.4
service timestamps debug datetime msec
service timestamps log datetime msec
no service password-encryption
!
hostname R4
!
boot-start-marker
boot-end-marker
!
logging message-counter syslog
!
no aaa new-model
ip source-route
no ip icmp rate-limit unreachable
ip cef
!
!
!
!
no ip domain lookup
no ipv6 cef
!
multilink bundle-name authenticated
!
!
voice dsp waitstate 0
!
!
!
!
!
!
!
!
!
!
!
!
!
memory-size iomem 0
archive
 log config
  hidekeys
!
!
!
!
!
ip tcp synwait-time 5
!
!
!
!
interface Loopback10
 ip address 20.108.0.1 255.252.0.0
!
interface FastEthernet0/0
 ip address 2.124.0.1 255.252.0.0
 duplex half
!
interface Serial1/0
 ip address 2.104.0.2 255.252.0.0
 serial restart-delay 0
!
interface Serial1/1
 ip address 2.108.0.1 255.252.0.0
 serial restart-delay 0
!
interface Serial1/2
 no ip address
 shutdown
 serial restart-delay 0
!
interface Serial1/3
 no ip address
 shutdown
 serial restart-delay 0
!
interface Ethernet2/0
 no ip address
 shutdown
 duplex half
!
interface Ethernet2/1
 no ip address
 shutdown
 duplex half
!
interface Ethernet2/2
 no ip address
 shutdown
 duplex half
!
interface Ethernet2/3
 no ip address
 shutdown
 duplex half
!
router eigrp 200
 network 2.104.0.0 0.3.255.255
 network 2.108.0.0 0.3.255.255
 network 2.124.0.0 0.3.255.255
 network 20.108.0.0 0.3.255.255
 no auto-summary
!
ip forward-protocol nd
no ip http server
no ip http secure-server
!
!
!
logging alarm informational
no cdp log mismatch duplex
!
!
!
!
!
!
!
control-plane
!
!
!
mgcp fax t38 ecm
!
!
!
!
gatekeeper
 shutdown
!
!
line con 0
 exec-timeout 0 0
 privilege level 15
 logging synchronous
 stopbits 1
line aux 0
 exec-timeout 0 0
 privilege level 15
 logging synchronous
 stopbits 1
line vty 0 4
 login
!
end

R4 sh ip eigrp neighbor

IP-EIGRP neighbors for process 200
H   Address                 Interface       Hold Uptime   SRTT   RTO  Q  Seq
                                            (sec)         (ms)       Cnt Num
2   2.124.0.2               Fa0/0              9 00:19:11  203  1218  0  43
1   2.108.0.2               Se1/1              8 01:09:57   61   366  0  65
0   2.104.0.1               Se1/0              9 01:11:10   59   354  0  63

R4 sh ip eigrp topology

IP-EIGRP Topology Table for AS(200)/ID(20.108.0.1)

Codes: P - Passive, A - Active, U - Update, Q - Query, R - Reply,
       r - reply Status, s - sia Status

P 20.20.0.0/14, 1 successors, FD is 6401536
        via 2.108.0.2 (6401536/5889536), Serial1/1
P 2.0.0.0/14, 1 successors, FD is 6273536
        via 2.108.0.2 (6273536/5761536), Serial1/1
P 20.16.0.0/14, 1 successors, FD is 5889536
        via 2.108.0.2 (5889536/5377536), Serial1/1
P 2.4.0.0/14, 1 successors, FD is 5761536
        via 2.108.0.2 (5761536/5249536), Serial1/1
P 2.8.0.0/14, 1 successors, FD is 5249536
        via 2.108.0.2 (5249536/4737536), Serial1/1
P 20.24.0.0/14, 1 successors, FD is 6401536
        via 2.108.0.2 (6401536/5889536), Serial1/1
P 2.12.0.0/14, 1 successors, FD is 5249536
        via 2.108.0.2 (5249536/4737536), Serial1/1
P 20.4.0.0/14, 1 successors, FD is 5377536
        via 2.108.0.2 (5377536/4865536), Serial1/1
P 2.16.0.0/14, 1 successors, FD is 5761536
        via 2.108.0.2 (5761536/5249536), Serial1/1
P 20.0.0.0/14, 1 successors, FD is 5889536
        via 2.108.0.2 (5889536/5377536), Serial1/1
P 2.20.0.0/14, 1 successors, FD is 6273536
        via 2.108.0.2 (6273536/5761536), Serial1/1
P 20.12.0.0/14, 1 successors, FD is 5377536
        via 2.108.0.2 (5377536/4865536), Serial1/1
P 2.24.0.0/14, 1 successors, FD is 6785536
        via 2.108.0.2 (6785536/6273536), Serial1/1
P 20.8.0.0/14, 1 successors, FD is 4865536
        via 2.108.0.2 (4865536/4353536), Serial1/1
P 2.28.0.0/14, 1 successors, FD is 4737536
        via 2.108.0.2 (4737536/4225536), Serial1/1
P 20.52.0.0/14, 1 successors, FD is 3838976
        via 2.108.0.2 (3838976/3326976), Serial1/1
P 2.32.0.0/14, 1 successors, FD is 4734976
        via 2.108.0.2 (4734976/4222976), Serial1/1
P 20.48.0.0/14, 1 successors, FD is 4350976
        via 2.108.0.2 (4350976/3838976), Serial1/1
P 2.36.0.0/14, 1 successors, FD is 5246976
        via 2.108.0.2 (5246976/4734976), Serial1/1
P 2.40.0.0/14, 1 successors, FD is 4222976
        via 2.108.0.2 (4222976/3710976), Serial1/1
P 20.56.0.0/14, 1 successors, FD is 3326976
        via 2.108.0.2 (3326976/2814976), Serial1/1
P 2.44.0.0/14, 1 successors, FD is 4734976
        via 2.108.0.2 (4734976/4222976), Serial1/1
P 20.36.0.0/14, 1 successors, FD is 4350976
        via 2.108.0.2 (4350976/3838976), Serial1/1
P 2.48.0.0/14, 1 successors, FD is 4222976
        via 2.108.0.2 (4222976/3710976), Serial1/1
P 20.32.0.0/14, 1 successors, FD is 4862976
        via 2.108.0.2 (4862976/4350976), Serial1/1
P 2.52.0.0/14, 1 successors, FD is 3710976
        via 2.108.0.2 (3710976/3198976), Serial1/1
P 20.44.0.0/14, 1 successors, FD is 3838976
        via 2.108.0.2 (3838976/3326976), Serial1/1
P 2.56.0.0/14, 1 successors, FD is 3710976
        via 2.108.0.2 (3710976/3198976), Serial1/1
P 20.40.0.0/14, 1 successors, FD is 4862976
        via 2.108.0.2 (4862976/4350976), Serial1/1
P 2.60.0.0/14, 1 successors, FD is 3198976
        via 2.108.0.2 (3198976/2686976), Serial1/1
P 2.64.0.0/14, 1 successors, FD is 4220416
        via 2.108.0.2 (4220416/3708416), Serial1/1
P 2.68.0.0/14, 1 successors, FD is 3708416
        via 2.108.0.2 (3708416/3196416), Serial1/1
P 2.72.0.0/14, 1 successors, FD is 3196416
        via 2.108.0.2 (3196416/2684416), Serial1/1
P 2.76.0.0/14, 1 successors, FD is 2684416
        via 2.108.0.2 (2684416/2172416), Serial1/1
P 2.80.0.0/14, 1 successors, FD is 2684416
        via 2.108.0.2 (2684416/2172416), Serial1/1
P 20.64.0.0/12, 1 successors, FD is 3836416
        via 2.108.0.2 (3836416/3324416), Serial1/1
P 2.84.0.0/14, 1 successors, FD is 3196416
        via 2.108.0.2 (3196416/2684416), Serial1/1
P 2.88.0.0/14, 1 successors, FD is 3708416
        via 2.108.0.2 (3708416/3196416), Serial1/1
P 2.92.0.0/14, 1 successors, FD is 2172416
        via 2.108.0.2 (2172416/28160), Serial1/1
P 20.116.0.0/14, 1 successors, FD is 2809856
        via 2.108.0.2 (2809856/2297856), Serial1/1
P 2.96.0.0/14, 1 successors, FD is 3193856
        via 2.104.0.1 (3193856/2681856), Serial1/0
P 20.112.0.0/14, 1 successors, FD is 2297856
        via 2.108.0.2 (2297856/128256), Serial1/1
P 2.100.0.0/14, 1 successors, FD is 2681856
        via 2.104.0.1 (2681856/2169856), Serial1/0
P 2.104.0.0/14, 1 successors, FD is 2169856
        via Connected, Serial1/0
P 20.120.0.0/14, 1 successors, FD is 3321856
        via 2.108.0.2 (3321856/2809856), Serial1/1
P 2.108.0.0/14, 1 successors, FD is 2169856
        via Connected, Serial1/1
P 20.100.0.0/14, 1 successors, FD is 2809856
        via 2.104.0.1 (2809856/2297856), Serial1/0
P 2.112.0.0/14, 1 successors, FD is 2681856
        via 2.108.0.2 (2681856/2169856), Serial1/1
P 20.96.0.0/12, 1 successors, FD is 2812416
        via 2.108.0.2 (2812416/2300416), Serial1/1
P 20.96.0.0/14, 1 successors, FD is 3321856
        via 2.104.0.1 (3321856/2809856), Serial1/0
P 2.116.0.0/14, 1 successors, FD is 3193856
        via 2.108.0.2 (3193856/2681856), Serial1/1
P 20.108.0.0/14, 1 successors, FD is 128256
        via Connected, Loopback10
P 2.120.0.0/14, 2 successors, FD is 3705856
        via 2.104.0.1 (3705856/3193856), Serial1/0
        via 2.108.0.2 (3705856/3193856), Serial1/1
P 20.104.0.0/14, 1 successors, FD is 2297856
        via 2.104.0.1 (2297856/128256), Serial1/0
P 2.124.0.0/14, 1 successors, FD is 28160
        via Connected, FastEthernet0/0
P 2.128.0.0/14, 1 successors, FD is 2684416
        via 2.124.0.2 (2684416/2681856), FastEthernet0/0
P 2.132.0.0/14, 1 successors, FD is 4220416
        via 2.124.0.2 (4220416/4217856), FastEthernet0/0
P 2.136.0.0/14, 1 successors, FD is 3708416
        via 2.124.0.2 (3708416/3705856), FastEthernet0/0
P 2.140.0.0/14, 1 successors, FD is 3196416
        via 2.124.0.2 (3196416/3193856), FastEthernet0/0
P 2.144.0.0/14, 1 successors, FD is 2684416
        via 2.124.0.2 (2684416/2681856), FastEthernet0/0
P 20.128.0.0/14, 1 successors, FD is 2300416
        via 2.124.0.2 (2300416/2297856), FastEthernet0/0
P 2.148.0.0/14, 1 successors, FD is 2172416
        via 2.124.0.2 (2172416/2169856), FastEthernet0/0
P 20.140.0.0/14, 1 successors, FD is 3324416
        via 2.124.0.2 (3324416/3321856), FastEthernet0/0
P 2.152.0.0/14, 1 successors, FD is 2172416
        via 2.124.0.2 (2172416/2169856), FastEthernet0/0
P 2.156.0.0/14, 1 successors, FD is 2686976
        via 2.124.0.2 (2686976/2684416), FastEthernet0/0
P 2.192.2.0/24, 1 successors, FD is 2763776
        via 2.124.0.2 (2763776/2761216), FastEthernet0/0
P 2.192.3.0/24, 1 successors, FD is 2738176
        via 2.124.0.2 (2738176/2735616), FastEthernet0/0
P 2.192.1.0/24, 1 successors, FD is 2789376
        via 2.124.0.2 (2789376/2786816), FastEthernet0/0
P 2.192.6.0/24, 1 successors, FD is 2738176
        via 2.124.0.2 (2738176/2735616), FastEthernet0/0
P 2.192.7.0/24, 1 successors, FD is 2712576
        via 2.124.0.2 (2712576/2710016), FastEthernet0/0
P 2.192.4.0/24, 1 successors, FD is 2712576
        via 2.124.0.2 (2712576/2710016), FastEthernet0/0
P 2.192.5.0/24, 1 successors, FD is 2763776
        via 2.124.0.2 (2763776/2761216), FastEthernet0/0
P 20.192.4.0/24, 1 successors, FD is 2840576
        via 2.124.0.2 (2840576/2838016), FastEthernet0/0
P 20.192.5.0/24, 1 successors, FD is 2866176
        via 2.124.0.2 (2866176/2863616), FastEthernet0/0
P 20.192.6.0/24, 1 successors, FD is 2840576
        via 2.124.0.2 (2840576/2838016), FastEthernet0/0
P 20.192.7.0/24, 1 successors, FD is 2814976
        via 2.124.0.2 (2814976/2812416), FastEthernet0/0
P 20.192.1.0/24, 1 successors, FD is 2891776
        via 2.124.0.2 (2891776/2889216), FastEthernet0/0
P 20.192.2.0/24, 1 successors, FD is 2891776
        via 2.124.0.2 (2891776/2889216), FastEthernet0/0
P 20.192.3.0/24, 1 successors, FD is 2866176
        via 2.124.0.2 (2866176/2863616), FastEthernet0/0

R5

R5 sh run

Building configuration...

Current configuration : 1726 bytes
!
upgrade fpd auto
version 12.4
service timestamps debug datetime msec
service timestamps log datetime msec
no service password-encryption
!
hostname R5
!
boot-start-marker
boot-end-marker
!
logging message-counter syslog
!
no aaa new-model
ip source-route
no ip icmp rate-limit unreachable
ip cef
!
!
!
!
no ip domain lookup
no ipv6 cef
!
multilink bundle-name authenticated
!
!
voice dsp waitstate 0
!
!
!
!
!
!
!
!
!
!
!
!
!
memory-size iomem 0
archive
 log config
  hidekeys
!
!
!
!
!
ip tcp synwait-time 5
!
!
!
!
interface Loopback10
 ip address 20.120.0.1 255.252.0.0
!
interface FastEthernet0/0
 no ip address
 shutdown
 duplex half
!
interface Serial1/0
 no ip address
 shutdown
 serial restart-delay 0
!
interface Serial1/1
 ip address 2.116.0.2 255.252.0.0
 serial restart-delay 0
!
interface Serial1/2
 ip address 2.120.0.1 255.252.0.0
 serial restart-delay 0
!
interface Serial1/3
 no ip address
 shutdown
 serial restart-delay 0
!
interface Ethernet2/0
 no ip address
 shutdown
 duplex half
!
interface Ethernet2/1
 no ip address
 shutdown
 duplex half
!
interface Ethernet2/2
 no ip address
 shutdown
 duplex half
!
interface Ethernet2/3
 no ip address
 shutdown
 duplex half
!
router eigrp 200
 network 2.116.0.0 0.3.255.255
 network 2.120.0.0 0.3.255.255
 network 20.120.0.0 0.3.255.255
 no auto-summary
!
ip forward-protocol nd
no ip http server
no ip http secure-server
!
!
!
logging alarm informational
no cdp log mismatch duplex
!
!
!
!
!
!
!
control-plane
!
!
!
mgcp fax t38 ecm
!
!
!
!
gatekeeper
 shutdown
!
!
line con 0
 exec-timeout 0 0
 privilege level 15
 logging synchronous
 stopbits 1
line aux 0
 exec-timeout 0 0
 privilege level 15
 logging synchronous
 stopbits 1
line vty 0 4
 login
!
end

R5 sh ip eigrp neighbor

IP-EIGRP neighbors for process 200
H   Address                 Interface       Hold Uptime   SRTT   RTO  Q  Seq
                                            (sec)         (ms)       Cnt Num
1   2.120.0.2               Se1/2              5 00:56:01   52   312  0  52
0   2.116.0.1               Se1/1              2 00:57:40   51   306  0  48

R5 sh ip eigrp topology

IP-EIGRP Topology Table for AS(200)/ID(20.120.0.1)

Codes: P - Passive, A - Active, U - Update, Q - Query, R - Reply,
       r - reply Status, s - sia Status

P 20.20.0.0/14, 1 successors, FD is 6913536
        via 2.116.0.1 (6913536/6401536), Serial1/1
P 2.0.0.0/14, 1 successors, FD is 6785536
        via 2.116.0.1 (6785536/6273536), Serial1/1
P 20.16.0.0/14, 1 successors, FD is 6401536
        via 2.116.0.1 (6401536/5889536), Serial1/1
P 2.4.0.0/14, 1 successors, FD is 6273536
        via 2.116.0.1 (6273536/5761536), Serial1/1
P 2.8.0.0/14, 1 successors, FD is 5761536
        via 2.116.0.1 (5761536/5249536), Serial1/1
P 20.24.0.0/14, 1 successors, FD is 6913536
        via 2.116.0.1 (6913536/6401536), Serial1/1
P 2.12.0.0/14, 1 successors, FD is 5761536
        via 2.116.0.1 (5761536/5249536), Serial1/1
P 20.4.0.0/14, 1 successors, FD is 5889536
        via 2.116.0.1 (5889536/5377536), Serial1/1
P 2.16.0.0/14, 1 successors, FD is 6273536
        via 2.116.0.1 (6273536/5761536), Serial1/1
P 20.0.0.0/14, 1 successors, FD is 6401536
        via 2.116.0.1 (6401536/5889536), Serial1/1
P 2.20.0.0/14, 1 successors, FD is 6785536
        via 2.116.0.1 (6785536/6273536), Serial1/1
P 20.12.0.0/14, 1 successors, FD is 5889536
        via 2.116.0.1 (5889536/5377536), Serial1/1
P 2.24.0.0/14, 1 successors, FD is 7297536
        via 2.116.0.1 (7297536/6785536), Serial1/1
P 20.8.0.0/14, 1 successors, FD is 5377536
        via 2.116.0.1 (5377536/4865536), Serial1/1
P 2.28.0.0/14, 1 successors, FD is 5249536
        via 2.116.0.1 (5249536/4737536), Serial1/1
P 20.52.0.0/14, 1 successors, FD is 4350976
        via 2.116.0.1 (4350976/3838976), Serial1/1
P 2.32.0.0/14, 1 successors, FD is 5246976
        via 2.116.0.1 (5246976/4734976), Serial1/1
P 20.48.0.0/14, 1 successors, FD is 4862976
        via 2.116.0.1 (4862976/4350976), Serial1/1
P 2.36.0.0/14, 1 successors, FD is 5758976
        via 2.116.0.1 (5758976/5246976), Serial1/1
P 2.40.0.0/14, 1 successors, FD is 4734976
        via 2.116.0.1 (4734976/4222976), Serial1/1
P 20.56.0.0/14, 1 successors, FD is 3838976
        via 2.116.0.1 (3838976/3326976), Serial1/1
P 2.44.0.0/14, 1 successors, FD is 5246976
        via 2.116.0.1 (5246976/4734976), Serial1/1
P 20.36.0.0/14, 1 successors, FD is 4862976
        via 2.116.0.1 (4862976/4350976), Serial1/1
P 2.48.0.0/14, 1 successors, FD is 4734976
        via 2.116.0.1 (4734976/4222976), Serial1/1
P 20.32.0.0/14, 1 successors, FD is 5374976
        via 2.116.0.1 (5374976/4862976), Serial1/1
P 2.52.0.0/14, 1 successors, FD is 4222976
        via 2.116.0.1 (4222976/3710976), Serial1/1
P 20.44.0.0/14, 1 successors, FD is 4350976
        via 2.116.0.1 (4350976/3838976), Serial1/1
P 2.56.0.0/14, 1 successors, FD is 4222976
        via 2.116.0.1 (4222976/3710976), Serial1/1
P 20.40.0.0/14, 1 successors, FD is 5374976
        via 2.116.0.1 (5374976/4862976), Serial1/1
P 2.60.0.0/14, 1 successors, FD is 3710976
        via 2.116.0.1 (3710976/3198976), Serial1/1
P 2.64.0.0/14, 1 successors, FD is 4732416
        via 2.116.0.1 (4732416/4220416), Serial1/1
P 2.68.0.0/14, 1 successors, FD is 4220416
        via 2.116.0.1 (4220416/3708416), Serial1/1
P 2.72.0.0/14, 1 successors, FD is 3708416
        via 2.116.0.1 (3708416/3196416), Serial1/1
P 2.76.0.0/14, 1 successors, FD is 3196416
        via 2.116.0.1 (3196416/2684416), Serial1/1
P 2.80.0.0/14, 1 successors, FD is 3196416
        via 2.116.0.1 (3196416/2684416), Serial1/1
P 20.64.0.0/12, 1 successors, FD is 4348416
        via 2.116.0.1 (4348416/3836416), Serial1/1
P 2.84.0.0/14, 1 successors, FD is 3708416
        via 2.116.0.1 (3708416/3196416), Serial1/1
P 2.88.0.0/14, 1 successors, FD is 4220416
        via 2.116.0.1 (4220416/3708416), Serial1/1
P 2.92.0.0/14, 1 successors, FD is 2684416
        via 2.116.0.1 (2684416/2172416), Serial1/1
P 20.116.0.0/14, 1 successors, FD is 2297856
        via 2.116.0.1 (2297856/128256), Serial1/1
P 2.96.0.0/14, 1 successors, FD is 2681856
        via 2.120.0.2 (2681856/2169856), Serial1/2
P 20.112.0.0/14, 1 successors, FD is 2809856
        via 2.116.0.1 (2809856/2297856), Serial1/1
P 2.100.0.0/14, 1 successors, FD is 3193856
        via 2.120.0.2 (3193856/2681856), Serial1/2
P 2.104.0.0/14, 2 successors, FD is 3705856
        via 2.116.0.1 (3705856/3193856), Serial1/1
        via 2.120.0.2 (3705856/3193856), Serial1/2
P 20.120.0.0/14, 1 successors, FD is 128256
        via Connected, Loopback10
P 2.108.0.0/14, 1 successors, FD is 3193856
        via 2.116.0.1 (3193856/2681856), Serial1/1
P 20.100.0.0/14, 1 successors, FD is 2809856
        via 2.120.0.2 (2809856/2297856), Serial1/2
P 2.112.0.0/14, 1 successors, FD is 2681856
        via 2.116.0.1 (2681856/2169856), Serial1/1
P 20.96.0.0/12, 1 successors, FD is 3324416
        via 2.116.0.1 (3324416/2812416), Serial1/1
P 20.96.0.0/14, 1 successors, FD is 2297856
        via 2.120.0.2 (2297856/128256), Serial1/2
P 2.116.0.0/14, 1 successors, FD is 2169856
        via Connected, Serial1/1
P 20.108.0.0/14, 1 successors, FD is 3321856
        via 2.116.0.1 (3321856/2809856), Serial1/1
P 2.120.0.0/14, 1 successors, FD is 2169856
        via Connected, Serial1/2
P 20.104.0.0/14, 1 successors, FD is 3321856
        via 2.120.0.2 (3321856/2809856), Serial1/2
P 2.124.0.0/14, 1 successors, FD is 3196416
        via 2.116.0.1 (3196416/2684416), Serial1/1
P 2.128.0.0/14, 1 successors, FD is 4220416
        via 2.116.0.1 (4220416/3708416), Serial1/1
P 2.132.0.0/14, 1 successors, FD is 5756416
        via 2.116.0.1 (5756416/5244416), Serial1/1
P 2.136.0.0/14, 1 successors, FD is 5244416
        via 2.116.0.1 (5244416/4732416), Serial1/1
P 2.140.0.0/14, 1 successors, FD is 4732416
        via 2.116.0.1 (4732416/4220416), Serial1/1
P 2.144.0.0/14, 1 successors, FD is 4220416
        via 2.116.0.1 (4220416/3708416), Serial1/1
P 20.128.0.0/14, 1 successors, FD is 3836416
        via 2.116.0.1 (3836416/3324416), Serial1/1
P 2.148.0.0/14, 1 successors, FD is 3708416
        via 2.116.0.1 (3708416/3196416), Serial1/1
P 20.140.0.0/14, 1 successors, FD is 4860416
        via 2.116.0.1 (4860416/4348416), Serial1/1
P 2.152.0.0/14, 1 successors, FD is 3708416
        via 2.116.0.1 (3708416/3196416), Serial1/1
P 2.156.0.0/14, 1 successors, FD is 4222976
        via 2.116.0.1 (4222976/3710976), Serial1/1
P 2.192.2.0/24, 1 successors, FD is 4299776
        via 2.116.0.1 (4299776/3787776), Serial1/1
P 2.192.3.0/24, 1 successors, FD is 4274176
        via 2.116.0.1 (4274176/3762176), Serial1/1
P 2.192.1.0/24, 1 successors, FD is 4325376
        via 2.116.0.1 (4325376/3813376), Serial1/1
P 2.192.6.0/24, 1 successors, FD is 4274176
        via 2.116.0.1 (4274176/3762176), Serial1/1
P 2.192.7.0/24, 1 successors, FD is 4248576
        via 2.116.0.1 (4248576/3736576), Serial1/1
P 2.192.4.0/24, 1 successors, FD is 4248576
        via 2.116.0.1 (4248576/3736576), Serial1/1
P 2.192.5.0/24, 1 successors, FD is 4299776
        via 2.116.0.1 (4299776/3787776), Serial1/1
P 20.192.4.0/24, 1 successors, FD is 4376576
        via 2.116.0.1 (4376576/3864576), Serial1/1
P 20.192.5.0/24, 1 successors, FD is 4402176
        via 2.116.0.1 (4402176/3890176), Serial1/1
P 20.192.6.0/24, 1 successors, FD is 4376576
        via 2.116.0.1 (4376576/3864576), Serial1/1
P 20.192.7.0/24, 1 successors, FD is 4350976
        via 2.116.0.1 (4350976/3838976), Serial1/1
P 20.192.1.0/24, 1 successors, FD is 4427776
        via 2.116.0.1 (4427776/3915776), Serial1/1
P 20.192.2.0/24, 1 successors, FD is 4427776
        via 2.116.0.1 (4427776/3915776), Serial1/1
P 20.192.3.0/24, 1 successors, FD is 4402176
        via 2.116.0.1 (4402176/3890176), Serial1/1

R6

R6 sh run

Building configuration...

Current configuration : 1726 bytes
!
upgrade fpd auto
version 12.4
service timestamps debug datetime msec
service timestamps log datetime msec
no service password-encryption
!
hostname R6
!
boot-start-marker
boot-end-marker
!
logging message-counter syslog
!
no aaa new-model
ip source-route
no ip icmp rate-limit unreachable
ip cef
!
!
!
!
no ip domain lookup
no ipv6 cef
!
multilink bundle-name authenticated
!
!
voice dsp waitstate 0
!
!
!
!
!
!
!
!
!
!
!
!
!
memory-size iomem 0
archive
 log config
  hidekeys
!
!
!
!
!
ip tcp synwait-time 5
!
!
!
!
interface Loopback10
 ip address 20.116.0.1 255.252.0.0
!
interface FastEthernet0/0
 no ip address
 shutdown
 duplex half
!
interface Serial1/0
 ip address 2.112.0.2 255.252.0.0
 serial restart-delay 0
!
interface Serial1/1
 ip address 2.116.0.1 255.252.0.0
 serial restart-delay 0
!
interface Serial1/2
 no ip address
 shutdown
 serial restart-delay 0
!
interface Serial1/3
 no ip address
 shutdown
 serial restart-delay 0
!
interface Ethernet2/0
 no ip address
 shutdown
 duplex half
!
interface Ethernet2/1
 no ip address
 shutdown
 duplex half
!
interface Ethernet2/2
 no ip address
 shutdown
 duplex half
!
interface Ethernet2/3
 no ip address
 shutdown
 duplex half
!
router eigrp 200
 network 2.112.0.0 0.3.255.255
 network 2.116.0.0 0.3.255.255
 network 20.116.0.0 0.3.255.255
 no auto-summary
!
ip forward-protocol nd
no ip http server
no ip http secure-server
!
!
!
logging alarm informational
no cdp log mismatch duplex
!
!
!
!
!
!
!
control-plane
!
!
!
mgcp fax t38 ecm
!
!
!
!
gatekeeper
 shutdown
!
!
line con 0
 exec-timeout 0 0
 privilege level 15
 logging synchronous
 stopbits 1
line aux 0
 exec-timeout 0 0
 privilege level 15
 logging synchronous
 stopbits 1
line vty 0 4
 login
!
end

R6 sh ip eigrp neighbor

IP-EIGRP neighbors for process 200
H   Address                 Interface       Hold Uptime   SRTT   RTO  Q  Seq
                                            (sec)         (ms)       Cnt Num
1   2.116.0.2               Se1/1              7 00:57:43   43   258  0  52
0   2.112.0.1               Se1/0              3 00:59:14   47   282  0  64

R6 sh ip eigrp topology

IP-EIGRP Topology Table for AS(200)/ID(20.116.0.1)

Codes: P - Passive, A - Active, U - Update, Q - Query, R - Reply,
       r - reply Status, s - sia Status

P 20.20.0.0/14, 1 successors, FD is 6401536
        via 2.112.0.1 (6401536/5889536), Serial1/0
P 2.0.0.0/14, 1 successors, FD is 6273536
        via 2.112.0.1 (6273536/5761536), Serial1/0
P 20.16.0.0/14, 1 successors, FD is 5889536
        via 2.112.0.1 (5889536/5377536), Serial1/0
P 2.4.0.0/14, 1 successors, FD is 5761536
        via 2.112.0.1 (5761536/5249536), Serial1/0
P 2.8.0.0/14, 1 successors, FD is 5249536
        via 2.112.0.1 (5249536/4737536), Serial1/0
P 20.24.0.0/14, 1 successors, FD is 6401536
        via 2.112.0.1 (6401536/5889536), Serial1/0
P 2.12.0.0/14, 1 successors, FD is 5249536
        via 2.112.0.1 (5249536/4737536), Serial1/0
P 20.4.0.0/14, 1 successors, FD is 5377536
        via 2.112.0.1 (5377536/4865536), Serial1/0
P 2.16.0.0/14, 1 successors, FD is 5761536
        via 2.112.0.1 (5761536/5249536), Serial1/0
P 20.0.0.0/14, 1 successors, FD is 5889536
        via 2.112.0.1 (5889536/5377536), Serial1/0
P 2.20.0.0/14, 1 successors, FD is 6273536
        via 2.112.0.1 (6273536/5761536), Serial1/0
P 20.12.0.0/14, 1 successors, FD is 5377536
        via 2.112.0.1 (5377536/4865536), Serial1/0
P 2.24.0.0/14, 1 successors, FD is 6785536
        via 2.112.0.1 (6785536/6273536), Serial1/0
P 20.8.0.0/14, 1 successors, FD is 4865536
        via 2.112.0.1 (4865536/4353536), Serial1/0
P 2.28.0.0/14, 1 successors, FD is 4737536
        via 2.112.0.1 (4737536/4225536), Serial1/0
P 20.52.0.0/14, 1 successors, FD is 3838976
        via 2.112.0.1 (3838976/3326976), Serial1/0
P 2.32.0.0/14, 1 successors, FD is 4734976
        via 2.112.0.1 (4734976/4222976), Serial1/0
P 20.48.0.0/14, 1 successors, FD is 4350976
        via 2.112.0.1 (4350976/3838976), Serial1/0
P 2.36.0.0/14, 1 successors, FD is 5246976
        via 2.112.0.1 (5246976/4734976), Serial1/0
P 2.40.0.0/14, 1 successors, FD is 4222976
        via 2.112.0.1 (4222976/3710976), Serial1/0
P 20.56.0.0/14, 1 successors, FD is 3326976
        via 2.112.0.1 (3326976/2814976), Serial1/0
P 2.44.0.0/14, 1 successors, FD is 4734976
        via 2.112.0.1 (4734976/4222976), Serial1/0
P 20.36.0.0/14, 1 successors, FD is 4350976
        via 2.112.0.1 (4350976/3838976), Serial1/0
P 2.48.0.0/14, 1 successors, FD is 4222976
        via 2.112.0.1 (4222976/3710976), Serial1/0
P 20.32.0.0/14, 1 successors, FD is 4862976
        via 2.112.0.1 (4862976/4350976), Serial1/0
P 2.52.0.0/14, 1 successors, FD is 3710976
        via 2.112.0.1 (3710976/3198976), Serial1/0
P 20.44.0.0/14, 1 successors, FD is 3838976
        via 2.112.0.1 (3838976/3326976), Serial1/0
P 2.56.0.0/14, 1 successors, FD is 3710976
        via 2.112.0.1 (3710976/3198976), Serial1/0
P 20.40.0.0/14, 1 successors, FD is 4862976
        via 2.112.0.1 (4862976/4350976), Serial1/0
P 2.60.0.0/14, 1 successors, FD is 3198976
        via 2.112.0.1 (3198976/2686976), Serial1/0
P 2.64.0.0/14, 1 successors, FD is 4220416
        via 2.112.0.1 (4220416/3708416), Serial1/0
P 2.68.0.0/14, 1 successors, FD is 3708416
        via 2.112.0.1 (3708416/3196416), Serial1/0
P 2.72.0.0/14, 1 successors, FD is 3196416
        via 2.112.0.1 (3196416/2684416), Serial1/0
P 2.76.0.0/14, 1 successors, FD is 2684416
        via 2.112.0.1 (2684416/2172416), Serial1/0
P 2.80.0.0/14, 1 successors, FD is 2684416
        via 2.112.0.1 (2684416/2172416), Serial1/0
P 20.64.0.0/12, 1 successors, FD is 3836416
        via 2.112.0.1 (3836416/3324416), Serial1/0
P 2.84.0.0/14, 1 successors, FD is 3196416
        via 2.112.0.1 (3196416/2684416), Serial1/0
P 2.88.0.0/14, 1 successors, FD is 3708416
        via 2.112.0.1 (3708416/3196416), Serial1/0
P 2.92.0.0/14, 1 successors, FD is 2172416
        via 2.112.0.1 (2172416/28160), Serial1/0
P 20.116.0.0/14, 1 successors, FD is 128256
        via Connected, Loopback10
P 2.96.0.0/14, 1 successors, FD is 3193856
        via 2.116.0.2 (3193856/2681856), Serial1/1
P 20.112.0.0/14, 1 successors, FD is 2297856
        via 2.112.0.1 (2297856/128256), Serial1/0
P 2.100.0.0/14, 2 successors, FD is 3705856
        via 2.112.0.1 (3705856/3193856), Serial1/0
        via 2.116.0.2 (3705856/3193856), Serial1/1
P 2.104.0.0/14, 1 successors, FD is 3193856
        via 2.112.0.1 (3193856/2681856), Serial1/0
P 20.120.0.0/14, 1 successors, FD is 2297856
        via 2.116.0.2 (2297856/128256), Serial1/1
P 2.108.0.0/14, 1 successors, FD is 2681856
        via 2.112.0.1 (2681856/2169856), Serial1/0
P 20.100.0.0/14, 1 successors, FD is 3321856
        via 2.116.0.2 (3321856/2809856), Serial1/1
P 2.112.0.0/14, 1 successors, FD is 2169856
        via Connected, Serial1/0
P 20.96.0.0/12, 1 successors, FD is 2812416
        via 2.112.0.1 (2812416/2300416), Serial1/0
P 20.96.0.0/14, 1 successors, FD is 2809856
        via 2.116.0.2 (2809856/2297856), Serial1/1
P 2.116.0.0/14, 1 successors, FD is 2169856
        via Connected, Serial1/1
P 20.108.0.0/14, 1 successors, FD is 2809856
        via 2.112.0.1 (2809856/2297856), Serial1/0
P 2.120.0.0/14, 1 successors, FD is 2681856
        via 2.116.0.2 (2681856/2169856), Serial1/1
P 20.104.0.0/14, 1 successors, FD is 3321856
        via 2.112.0.1 (3321856/2809856), Serial1/0
P 2.124.0.0/14, 1 successors, FD is 2684416
        via 2.112.0.1 (2684416/2172416), Serial1/0
P 2.128.0.0/14, 1 successors, FD is 3708416
        via 2.112.0.1 (3708416/3196416), Serial1/0
P 2.132.0.0/14, 1 successors, FD is 5244416
        via 2.112.0.1 (5244416/4732416), Serial1/0
P 2.136.0.0/14, 1 successors, FD is 4732416
        via 2.112.0.1 (4732416/4220416), Serial1/0
P 2.140.0.0/14, 1 successors, FD is 4220416
        via 2.112.0.1 (4220416/3708416), Serial1/0
P 2.144.0.0/14, 1 successors, FD is 3708416
        via 2.112.0.1 (3708416/3196416), Serial1/0
P 20.128.0.0/14, 1 successors, FD is 3324416
        via 2.112.0.1 (3324416/2812416), Serial1/0
P 2.148.0.0/14, 1 successors, FD is 3196416
        via 2.112.0.1 (3196416/2684416), Serial1/0
P 20.140.0.0/14, 1 successors, FD is 4348416
        via 2.112.0.1 (4348416/3836416), Serial1/0
P 2.152.0.0/14, 1 successors, FD is 3196416
        via 2.112.0.1 (3196416/2684416), Serial1/0
P 2.156.0.0/14, 1 successors, FD is 3710976
        via 2.112.0.1 (3710976/3198976), Serial1/0
P 2.192.2.0/24, 1 successors, FD is 3787776
        via 2.112.0.1 (3787776/3275776), Serial1/0
P 2.192.3.0/24, 1 successors, FD is 3762176
        via 2.112.0.1 (3762176/3250176), Serial1/0
P 2.192.1.0/24, 1 successors, FD is 3813376
        via 2.112.0.1 (3813376/3301376), Serial1/0
P 2.192.6.0/24, 1 successors, FD is 3762176
        via 2.112.0.1 (3762176/3250176), Serial1/0
P 2.192.7.0/24, 1 successors, FD is 3736576
        via 2.112.0.1 (3736576/3224576), Serial1/0
P 2.192.4.0/24, 1 successors, FD is 3736576
        via 2.112.0.1 (3736576/3224576), Serial1/0
P 2.192.5.0/24, 1 successors, FD is 3787776
        via 2.112.0.1 (3787776/3275776), Serial1/0
P 20.192.4.0/24, 1 successors, FD is 3864576
        via 2.112.0.1 (3864576/3352576), Serial1/0
P 20.192.5.0/24, 1 successors, FD is 3890176
        via 2.112.0.1 (3890176/3378176), Serial1/0
P 20.192.6.0/24, 1 successors, FD is 3864576
        via 2.112.0.1 (3864576/3352576), Serial1/0
P 20.192.7.0/24, 1 successors, FD is 3838976
        via 2.112.0.1 (3838976/3326976), Serial1/0
P 20.192.1.0/24, 1 successors, FD is 3915776
        via 2.112.0.1 (3915776/3403776), Serial1/0
P 20.192.2.0/24, 1 successors, FD is 3915776
        via 2.112.0.1 (3915776/3403776), Serial1/0
P 20.192.3.0/24, 1 successors, FD is 3890176
        via 2.112.0.1 (3890176/3378176), Serial1/0

R7

R7 sh run

Building configuration...

Current configuration : 1764 bytes
!
upgrade fpd auto
version 12.4
service timestamps debug datetime msec
service timestamps log datetime msec
no service password-encryption
!
hostname R7
!
boot-start-marker
boot-end-marker
!
logging message-counter syslog
!
no aaa new-model
ip source-route
no ip icmp rate-limit unreachable
ip cef
!
!
!
!
no ip domain lookup
no ipv6 cef
!
multilink bundle-name authenticated
!
!
voice dsp waitstate 0
!
!
!
!
!
!
!
!
!
!
!
!
!
memory-size iomem 0
archive
 log config
  hidekeys
!
!
!
!
!
ip tcp synwait-time 5
!
!
!
!
interface Loopback10
 ip address 20.112.0.1 255.252.0.0
!
interface FastEthernet0/0
 ip address 2.92.0.2 255.252.0.0
 duplex half
!
interface Serial1/0
 ip address 2.112.0.1 255.252.0.0
 serial restart-delay 0
!
interface Serial1/1
 ip address 2.108.0.2 255.252.0.0
 serial restart-delay 0
!
interface Serial1/2
 no ip address
 shutdown
 serial restart-delay 0
!
interface Serial1/3
 no ip address
 shutdown
 serial restart-delay 0
!
interface Ethernet2/0
 no ip address
 shutdown
 duplex half
!
interface Ethernet2/1
 no ip address
 shutdown
 duplex half
!
interface Ethernet2/2
 no ip address
 shutdown
 duplex half
!
interface Ethernet2/3
 no ip address
 shutdown
 duplex half
!
router eigrp 200
 network 2.92.0.0 0.3.255.255
 network 2.108.0.0 0.3.255.255
 network 2.112.0.0 0.3.255.255
 network 20.112.0.0 0.3.255.255
 no auto-summary
!
ip forward-protocol nd
no ip http server
no ip http secure-server
!
!
!
logging alarm informational
no cdp log mismatch duplex
!
!
!
!
!
!
!
control-plane
!
!
!
mgcp fax t38 ecm
!
!
!
!
gatekeeper
 shutdown
!
!
line con 0
 exec-timeout 0 0
 privilege level 15
 logging synchronous
 stopbits 1
line aux 0
 exec-timeout 0 0
 privilege level 15
 logging synchronous
 stopbits 1
line vty 0 4
 login
!
end

R7 sh ip eigrp neighbor

IP-EIGRP neighbors for process 200
H   Address                 Interface       Hold Uptime   SRTT   RTO  Q  Seq
                                            (sec)         (ms)       Cnt Num
2   2.92.0.1                Fa0/0             12 00:16:39   61   366  0  55
1   2.112.0.2               Se1/0             12 01:03:38   38   228  0  46
0   2.108.0.1               Se1/1              9 01:04:57   45   270  0  79

R7 sh ip eigrp topology

IP-EIGRP Topology Table for AS(200)/ID(20.112.0.1)

Codes: P - Passive, A - Active, U - Update, Q - Query, R - Reply,
       r - reply Status, s - sia Status

P 20.20.0.0/14, 1 successors, FD is 5889536
        via 2.92.0.1 (5889536/5886976), FastEthernet0/0
P 2.0.0.0/14, 1 successors, FD is 5761536
        via 2.92.0.1 (5761536/5758976), FastEthernet0/0
P 20.16.0.0/14, 1 successors, FD is 5377536
        via 2.92.0.1 (5377536/5374976), FastEthernet0/0
P 2.4.0.0/14, 1 successors, FD is 5249536
        via 2.92.0.1 (5249536/5246976), FastEthernet0/0
P 2.8.0.0/14, 1 successors, FD is 4737536
        via 2.92.0.1 (4737536/4734976), FastEthernet0/0
P 20.24.0.0/14, 1 successors, FD is 5889536
        via 2.92.0.1 (5889536/5886976), FastEthernet0/0
P 2.12.0.0/14, 1 successors, FD is 4737536
        via 2.92.0.1 (4737536/4734976), FastEthernet0/0
P 20.4.0.0/14, 1 successors, FD is 4865536
        via 2.92.0.1 (4865536/4862976), FastEthernet0/0
P 2.16.0.0/14, 1 successors, FD is 5249536
        via 2.92.0.1 (5249536/5246976), FastEthernet0/0
P 20.0.0.0/14, 1 successors, FD is 5377536
        via 2.92.0.1 (5377536/5374976), FastEthernet0/0
P 2.20.0.0/14, 1 successors, FD is 5761536
        via 2.92.0.1 (5761536/5758976), FastEthernet0/0
P 20.12.0.0/14, 1 successors, FD is 4865536
        via 2.92.0.1 (4865536/4862976), FastEthernet0/0
P 2.24.0.0/14, 1 successors, FD is 6273536
        via 2.92.0.1 (6273536/6270976), FastEthernet0/0
P 20.8.0.0/14, 1 successors, FD is 4353536
        via 2.92.0.1 (4353536/4350976), FastEthernet0/0
P 2.28.0.0/14, 1 successors, FD is 4225536
        via 2.92.0.1 (4225536/4222976), FastEthernet0/0
P 20.52.0.0/14, 1 successors, FD is 3326976
        via 2.92.0.1 (3326976/3324416), FastEthernet0/0
P 2.32.0.0/14, 1 successors, FD is 4222976
        via 2.92.0.1 (4222976/4220416), FastEthernet0/0
P 20.48.0.0/14, 1 successors, FD is 3838976
        via 2.92.0.1 (3838976/3836416), FastEthernet0/0
P 2.36.0.0/14, 1 successors, FD is 4734976
        via 2.92.0.1 (4734976/4732416), FastEthernet0/0
P 2.40.0.0/14, 1 successors, FD is 3710976
        via 2.92.0.1 (3710976/3708416), FastEthernet0/0
P 20.56.0.0/14, 1 successors, FD is 2814976
        via 2.92.0.1 (2814976/2812416), FastEthernet0/0
P 2.44.0.0/14, 1 successors, FD is 4222976
        via 2.92.0.1 (4222976/4220416), FastEthernet0/0
P 20.36.0.0/14, 1 successors, FD is 3838976
        via 2.92.0.1 (3838976/3836416), FastEthernet0/0
P 2.48.0.0/14, 1 successors, FD is 3710976
        via 2.92.0.1 (3710976/3708416), FastEthernet0/0
P 20.32.0.0/14, 1 successors, FD is 4350976
        via 2.92.0.1 (4350976/4348416), FastEthernet0/0
P 2.52.0.0/14, 1 successors, FD is 3198976
        via 2.92.0.1 (3198976/3196416), FastEthernet0/0
P 20.44.0.0/14, 1 successors, FD is 3326976
        via 2.92.0.1 (3326976/3324416), FastEthernet0/0
P 2.56.0.0/14, 1 successors, FD is 3198976
        via 2.92.0.1 (3198976/3196416), FastEthernet0/0
P 20.40.0.0/14, 1 successors, FD is 4350976
        via 2.92.0.1 (4350976/4348416), FastEthernet0/0
P 2.60.0.0/14, 1 successors, FD is 2686976
        via 2.92.0.1 (2686976/2684416), FastEthernet0/0
P 2.64.0.0/14, 1 successors, FD is 3708416
        via 2.92.0.1 (3708416/3705856), FastEthernet0/0
P 2.68.0.0/14, 1 successors, FD is 3196416
        via 2.92.0.1 (3196416/3193856), FastEthernet0/0
P 2.72.0.0/14, 1 successors, FD is 2684416
        via 2.92.0.1 (2684416/2681856), FastEthernet0/0
P 2.76.0.0/14, 1 successors, FD is 2172416
        via 2.92.0.1 (2172416/2169856), FastEthernet0/0
P 2.80.0.0/14, 1 successors, FD is 2172416
        via 2.92.0.1 (2172416/2169856), FastEthernet0/0
P 20.64.0.0/12, 1 successors, FD is 3324416
        via 2.92.0.1 (3324416/3321856), FastEthernet0/0
P 2.84.0.0/14, 1 successors, FD is 2684416
        via 2.92.0.1 (2684416/2681856), FastEthernet0/0
P 2.88.0.0/14, 1 successors, FD is 3196416
        via 2.92.0.1 (3196416/3193856), FastEthernet0/0
P 2.92.0.0/14, 1 successors, FD is 28160
        via Connected, FastEthernet0/0
P 20.116.0.0/14, 1 successors, FD is 2297856
        via 2.112.0.2 (2297856/128256), Serial1/0
P 2.96.0.0/14, 2 successors, FD is 3705856
        via 2.108.0.1 (3705856/3193856), Serial1/1
        via 2.112.0.2 (3705856/3193856), Serial1/0
P 20.112.0.0/14, 1 successors, FD is 128256
        via Connected, Loopback10
P 2.100.0.0/14, 1 successors, FD is 3193856
        via 2.108.0.1 (3193856/2681856), Serial1/1
P 2.104.0.0/14, 1 successors, FD is 2681856
        via 2.108.0.1 (2681856/2169856), Serial1/1
P 20.120.0.0/14, 1 successors, FD is 2809856
        via 2.112.0.2 (2809856/2297856), Serial1/0
P 2.108.0.0/14, 1 successors, FD is 2169856
        via Connected, Serial1/1
P 20.100.0.0/14, 1 successors, FD is 3321856
        via 2.108.0.1 (3321856/2809856), Serial1/1
P 2.112.0.0/14, 1 successors, FD is 2169856
        via Connected, Serial1/0
P 20.96.0.0/12, 1 successors, FD is 2300416
        via 2.92.0.1 (2300416/2297856), FastEthernet0/0
P 20.96.0.0/14, 1 successors, FD is 3321856
        via 2.112.0.2 (3321856/2809856), Serial1/0
P 2.116.0.0/14, 1 successors, FD is 2681856
        via 2.112.0.2 (2681856/2169856), Serial1/0
P 20.108.0.0/14, 1 successors, FD is 2297856
        via 2.108.0.1 (2297856/128256), Serial1/1
P 2.120.0.0/14, 1 successors, FD is 3193856
        via 2.112.0.2 (3193856/2681856), Serial1/0
P 20.104.0.0/14, 1 successors, FD is 2809856
        via 2.108.0.1 (2809856/2297856), Serial1/1
P 2.124.0.0/14, 1 successors, FD is 2172416
        via 2.108.0.1 (2172416/28160), Serial1/1
P 2.128.0.0/14, 1 successors, FD is 3196416
        via 2.108.0.1 (3196416/2684416), Serial1/1
P 2.132.0.0/14, 1 successors, FD is 4732416
        via 2.108.0.1 (4732416/4220416), Serial1/1
P 2.136.0.0/14, 1 successors, FD is 4220416
        via 2.108.0.1 (4220416/3708416), Serial1/1
P 2.140.0.0/14, 1 successors, FD is 3708416
        via 2.108.0.1 (3708416/3196416), Serial1/1
P 2.144.0.0/14, 1 successors, FD is 3196416
        via 2.108.0.1 (3196416/2684416), Serial1/1
P 20.128.0.0/14, 1 successors, FD is 2812416
        via 2.108.0.1 (2812416/2300416), Serial1/1
P 2.148.0.0/14, 1 successors, FD is 2684416
        via 2.108.0.1 (2684416/2172416), Serial1/1
P 20.140.0.0/14, 1 successors, FD is 3836416
        via 2.108.0.1 (3836416/3324416), Serial1/1
P 2.152.0.0/14, 1 successors, FD is 2684416
        via 2.108.0.1 (2684416/2172416), Serial1/1
P 2.156.0.0/14, 1 successors, FD is 3198976
        via 2.108.0.1 (3198976/2686976), Serial1/1
P 2.192.2.0/24, 1 successors, FD is 3275776
        via 2.108.0.1 (3275776/2763776), Serial1/1
P 2.192.3.0/24, 1 successors, FD is 3250176
        via 2.108.0.1 (3250176/2738176), Serial1/1
P 2.192.1.0/24, 1 successors, FD is 3301376
        via 2.108.0.1 (3301376/2789376), Serial1/1
P 2.192.6.0/24, 1 successors, FD is 3250176
        via 2.108.0.1 (3250176/2738176), Serial1/1
P 2.192.7.0/24, 1 successors, FD is 3224576
        via 2.108.0.1 (3224576/2712576), Serial1/1
P 2.192.4.0/24, 1 successors, FD is 3224576
        via 2.108.0.1 (3224576/2712576), Serial1/1
P 2.192.5.0/24, 1 successors, FD is 3275776
        via 2.108.0.1 (3275776/2763776), Serial1/1
P 20.192.4.0/24, 1 successors, FD is 3352576
        via 2.108.0.1 (3352576/2840576), Serial1/1
P 20.192.5.0/24, 1 successors, FD is 3378176
        via 2.108.0.1 (3378176/2866176), Serial1/1
P 20.192.6.0/24, 1 successors, FD is 3352576
        via 2.108.0.1 (3352576/2840576), Serial1/1
P 20.192.7.0/24, 1 successors, FD is 3326976
        via 2.108.0.1 (3326976/2814976), Serial1/1
P 20.192.1.0/24, 1 successors, FD is 3403776
        via 2.108.0.1 (3403776/2891776), Serial1/1
P 20.192.2.0/24, 1 successors, FD is 3403776
        via 2.108.0.1 (3403776/2891776), Serial1/1
P 20.192.3.0/24, 1 successors, FD is 3378176
        via 2.108.0.1 (3378176/2866176), Serial1/1
