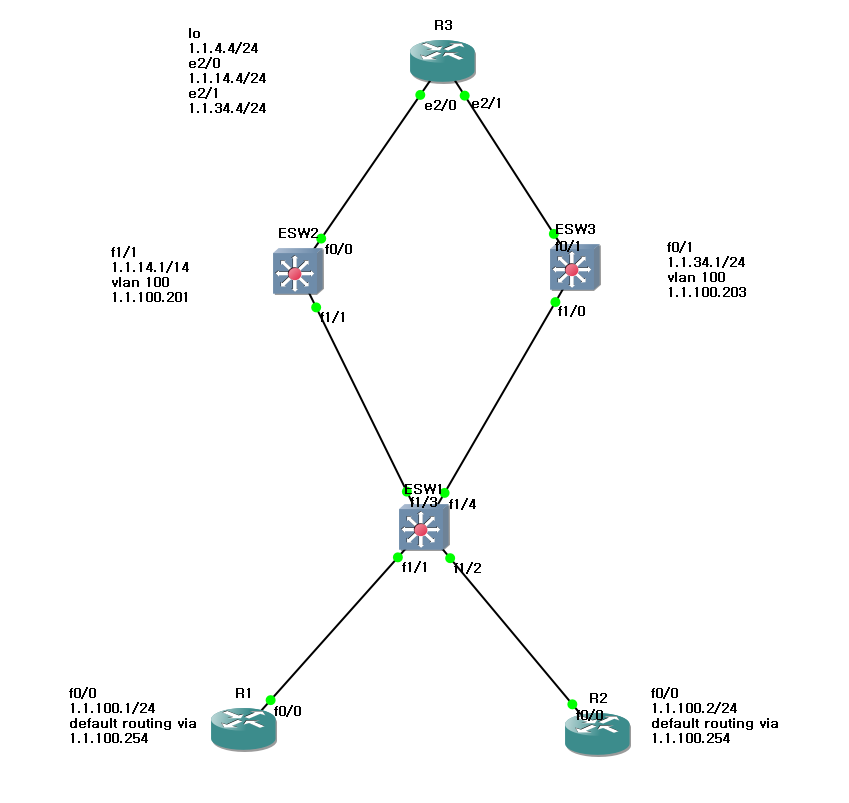

HSRP 실습





- R1, R2 default routing via를 1.1.100.254로 설정

- HSRF 가상 라우터를  1.1.100.254로 설정

- vlan 100을 사용.

- ESW1은 L2SW, ESW2,3은 L3SW로 사용

- L3SW에서 vlan 인터페이스 사용.





R1

R1 sh run

Building configuration...

Current configuration : 1568 bytes
!
upgrade fpd auto
version 12.4
service timestamps debug datetime msec
service timestamps log datetime msec
no service password-encryption
!
hostname R1
!
boot-start-marker
boot-end-marker
!
logging message-counter syslog
!
no aaa new-model
ip source-route
no ip icmp rate-limit unreachable
ip cef
!
!
!
!
no ip domain lookup
no ipv6 cef
!
multilink bundle-name authenticated
!
!
voice dsp waitstate 0
!
!
!
!
!
!
!
!
!
!
!
!
!
memory-size iomem 0
archive
 log config
  hidekeys
!
!
!
!
!
ip tcp synwait-time 5
!
!
!
!
interface FastEthernet0/0
 ip address 1.1.100.1 255.255.255.0
 duplex half
!
interface Serial1/0
 no ip address
 shutdown
 serial restart-delay 0
!
interface Serial1/1
 no ip address
 shutdown
 serial restart-delay 0
!
interface Serial1/2
 no ip address
 shutdown
 serial restart-delay 0
!
interface Serial1/3
 no ip address
 shutdown
 serial restart-delay 0
!
interface Ethernet2/0
 no ip address
 shutdown
 duplex half
!
interface Ethernet2/1
 no ip address
 shutdown
 duplex half
!
interface Ethernet2/2
 no ip address
 shutdown
 duplex half
!
interface Ethernet2/3
 no ip address
 shutdown
 duplex half
!
ip forward-protocol nd
ip route 0.0.0.0 0.0.0.0 1.1.100.254
no ip http server
no ip http secure-server
!
!
!
logging alarm informational
no cdp log mismatch duplex
!
!
!
!
!
!
!
control-plane
!
!
!
mgcp fax t38 ecm
!
!
!
!
gatekeeper
 shutdown
!
!
line con 0
 exec-timeout 0 0
 privilege level 15
 logging synchronous
 stopbits 1
line aux 0
 exec-timeout 0 0
 privilege level 15
 logging synchronous
 stopbits 1
line vty 0 4
 login
!
end

R2

R2 sh run

Building configuration...

Current configuration : 1568 bytes
!
upgrade fpd auto
version 12.4
service timestamps debug datetime msec
service timestamps log datetime msec
no service password-encryption
!
hostname R2
!
boot-start-marker
boot-end-marker
!
logging message-counter syslog
!
no aaa new-model
ip source-route
no ip icmp rate-limit unreachable
ip cef
!
!
!
!
no ip domain lookup
no ipv6 cef
!
multilink bundle-name authenticated
!
!
voice dsp waitstate 0
!
!
!
!
!
!
!
!
!
!
!
!
!
memory-size iomem 0
archive
 log config
  hidekeys
!
!
!
!
!
ip tcp synwait-time 5
!
!
!
!
interface FastEthernet0/0
 ip address 1.1.100.2 255.255.255.0
 duplex half
!
interface Serial1/0
 no ip address
 shutdown
 serial restart-delay 0
!
interface Serial1/1
 no ip address
 shutdown
 serial restart-delay 0
!
interface Serial1/2
 no ip address
 shutdown
 serial restart-delay 0
!
interface Serial1/3
 no ip address
 shutdown
 serial restart-delay 0
!
interface Ethernet2/0
 no ip address
 shutdown
 duplex half
!
interface Ethernet2/1
 no ip address
 shutdown
 duplex half
!
interface Ethernet2/2
 no ip address
 shutdown
 duplex half
!
interface Ethernet2/3
 no ip address
 shutdown
 duplex half
!
ip forward-protocol nd
ip route 0.0.0.0 0.0.0.0 1.1.100.254
no ip http server
no ip http secure-server
!
!
!
logging alarm informational
no cdp log mismatch duplex
!
!
!
!
!
!
!
control-plane
!
!
!
mgcp fax t38 ecm
!
!
!
!
gatekeeper
 shutdown
!
!
line con 0
 exec-timeout 0 0
 privilege level 15
 logging synchronous
 stopbits 1
line aux 0
 exec-timeout 0 0
 privilege level 15
 logging synchronous
 stopbits 1
line vty 0 4
 login
!
end

R3

R3 sh run

Building configuration...

Current configuration : 1714 bytes
!
upgrade fpd auto
version 12.4
service timestamps debug datetime msec
service timestamps log datetime msec
no service password-encryption
!
hostname R3
!
boot-start-marker
boot-end-marker
!
logging message-counter syslog
!
no aaa new-model
ip source-route
no ip icmp rate-limit unreachable
ip cef
!
!
!
!
no ip domain lookup
no ipv6 cef
!
multilink bundle-name authenticated
!
!
voice dsp waitstate 0
!
!
!
!
!
!
!
!
!
!
!
!
!
memory-size iomem 0
archive
 log config
  hidekeys
!
!
!
!
!
ip tcp synwait-time 5
!
!
!
!
interface Loopback10
 ip address 1.1.4.4 255.255.255.0
!
interface FastEthernet0/0
 no ip address
 shutdown
 duplex half
!
interface Serial1/0
 no ip address
 shutdown
 serial restart-delay 0
!
interface Serial1/1
 no ip address
 shutdown
 serial restart-delay 0
!
interface Serial1/2
 no ip address
 shutdown
 serial restart-delay 0
!
interface Serial1/3
 no ip address
 shutdown
 serial restart-delay 0
!
interface Ethernet2/0
 ip address 1.1.14.4 255.255.255.0
 duplex half
!
interface Ethernet2/1
 ip address 1.1.34.4 255.255.255.0
 duplex half
!
interface Ethernet2/2
 no ip address
 shutdown
 duplex half
!
interface Ethernet2/3
 no ip address
 shutdown
 duplex half
!
router eigrp 1
 network 1.1.4.0 0.0.0.255
 network 1.1.14.0 0.0.0.255
 network 1.1.34.0 0.0.0.255
 no auto-summary
!
ip forward-protocol nd
no ip http server
no ip http secure-server
!
!
!
logging alarm informational
no cdp log mismatch duplex
!
!
!
!
!
!
!
control-plane
!
!
!
mgcp fax t38 ecm
!
!
!
!
gatekeeper
 shutdown
!
!
line con 0
 exec-timeout 0 0
 privilege level 15
 logging synchronous
 stopbits 1
line aux 0
 exec-timeout 0 0
 privilege level 15
 logging synchronous
 stopbits 1
line vty 0 4
 login
!
end

ESW-10

R4 sh run

Building configuration...

Current configuration : 2663 bytes
!
version 12.4
service timestamps debug datetime msec
service timestamps log datetime msec
no service password-encryption
no service dhcp
!
hostname ESW1
!
boot-start-marker
boot-end-marker
!
!
no aaa new-model
memory-size iomem 5
no ip routing
no ip icmp rate-limit unreachable
no ip cef
!
!
!
!
no ip domain lookup
ip auth-proxy max-nodata-conns 3
ip admission max-nodata-conns 3
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
vtp file nvram:vlan.dat

!
!
ip tcp synwait-time 5
!
!
!
!
!
interface FastEthernet0/0
 description *** Unused for Layer2 EtherSwitch ***

 no ip address
 no ip route-cache
 shutdown
 duplex auto
 speed auto
!
interface FastEthernet0/1
 description *** Unused for Layer2 EtherSwitch ***
 no ip address
 no ip route-cache

 shutdown
 duplex auto
 speed auto
!
interface FastEthernet1/0
 duplex full
 speed 100
!
interface FastEthernet1/1
 switchport access vlan 100
 duplex full

 speed 100
!
interface FastEthernet1/2
 switchport access vlan 100
 duplex full
 speed 100
!
interface FastEthernet1/3
 switchport access vlan 100
 duplex full
 speed 100
!
interface FastEthernet1/4
 switchport access vlan 100
 duplex full
 speed 100
!
interface FastEthernet1/5
 duplex full
 speed 100
!
interface FastEthernet1/6
 duplex full
 speed 100
!
interface FastEthernet1/7
 duplex full
 speed 100
!
interface FastEthernet1/8
 duplex full
 speed 100
!
interface FastEthernet1/9
 duplex full
 speed 100
!
interface FastEthernet1/10
 duplex full
 speed 100
!
interface FastEthernet1/11
 duplex full
 speed 100
!
interface FastEthernet1/12
 duplex full
 speed 100
!
interface FastEthernet1/13
 duplex full
 speed 100
!
interface FastEthernet1/14
 duplex full
 speed 100
!
interface FastEthernet1/15
 duplex full
 speed 100
!
interface Vlan1
 no ip address
 no ip route-cache
 shutdown
!
ip forward-protocol nd
!
!
no ip http server
no ip http secure-server
!
no cdp log mismatch duplex
!
!
!
control-plane
!
!
!
!
!
!
!
!
!
banner exec ^C

***************************************************************
This is a normal Router with a SW module inside (NM-16ESW)
It has been preconfigured with hard coded speed and duplex


To create vlans use the command "vlan database" from exec mode
After creating all desired vlans use "exit" to apply the config

To view existing vlans use the command "show vlan-switch brief"

Warning: You are using an old IOS image for this router.
Please update the IOS to enable the "macro" command!
***************************************************************

^C
!
line con 0
 exec-timeout 0 0
 privilege level 15
 logging synchronous
line aux 0
 exec-timeout 0 0
 privilege level 15

 logging synchronous
line vty 0 4
 login
!
!
end

ESW-9

R5 sh run

Building configuration...

Current configuration : 2785 bytes
!
version 12.4
service timestamps debug datetime msec
service timestamps log datetime msec
no service password-encryption
no service dhcp
!
hostname ESW2
!
boot-start-marker
boot-end-marker
!
!
no aaa new-model
memory-size iomem 5
no ip icmp rate-limit unreachable
ip cef
!
!
!
!
no ip domain lookup
ip auth-proxy max-nodata-conns 3
ip admission max-nodata-conns 3
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
vtp file nvram:vlan.dat


!
!
ip tcp synwait-time 5
!
!
!
!
!
!
interface FastEthernet0/0
 description *** Unused for Layer2 EtherSwitch ***
 ip address 1.1.14.1 255.255.255.0
 duplex auto
 speed auto
!
interface FastEthernet0/1
 description *** Unused for Layer2 EtherSwitch ***
 no ip address
 shutdown
 duplex auto
 speed auto
!
interface FastEthernet1/0
 duplex full
 speed 100
!
interface FastEthernet1/1
 switchport access vlan 100
 duplex full
 speed 100
!
interface FastEthernet1/2
 duplex full
 speed 100
!
interface FastEthernet1/3
 duplex full
 speed 100
!
interface FastEthernet1/4
 duplex full
 speed 100
!
interface FastEthernet1/5
 duplex full
 speed 100
!
interface FastEthernet1/6
 duplex full
 speed 100
!
interface FastEthernet1/7
 duplex full
 speed 100
!
interface FastEthernet1/8
 duplex full
 speed 100
!
interface FastEthernet1/9
 duplex full
 speed 100
!
interface FastEthernet1/10
 duplex full
 speed 100
!
interface FastEthernet1/11
 duplex full
 speed 100
!
interface FastEthernet1/12
 duplex full
 speed 100
!
interface FastEthernet1/13
 duplex full
 speed 100
!
interface FastEthernet1/14
 duplex full
 speed 100
!
interface FastEthernet1/15
 duplex full
 speed 100
!
interface Vlan1
 no ip address
 shutdown
!
interface Vlan100
 ip address 1.1.100.201 255.255.255.0

 standby 1 ip 1.1.100.254
 standby 1 priority 105
 standby 1 preempt delay minimum 30
 standby 1 track FastEthernet0/0
!
router eigrp 1
 network 1.1.14.0 0.0.0.255
 network 1.1.100.0 0.0.0.255
 no auto-summary
!
ip forward-protocol nd
!
!
no ip http server
no ip http secure-server
!
no cdp log mismatch duplex
!
!
!
control-plane
!
!
!
!
!
!
!
!
!
banner exec ^C

***************************************************************
This is a normal Router with a SW module inside (NM-16ESW)
It has been preconfigured with hard coded speed and duplex

To create vlans use the command "vlan database" from exec mode
After creating all desired vlans use "exit" to apply the config

To view existing vlans use the command "show vlan-switch brief"

Warning: You are using an old IOS image for this router.
Please update the IOS to enable the "macro" command!
***************************************************************

^C
!
line con 0
 exec-timeout 0 0

 privilege level 15
 logging synchronous
line aux 0
 exec-timeout 0 0
 privilege level 15
 logging synchronous
line vty 0 4
 login
!
!
end

ESW-8

R6 sh run

Building configuration...

Current configuration : 2709 bytes
!
version 12.4
service timestamps debug datetime msec
service timestamps log datetime msec
no service password-encryption
no service dhcp
!
hostname ESW3
!
boot-start-marker
boot-end-marker
!
!
no aaa new-model
memory-size iomem 5
no ip icmp rate-limit unreachable
ip cef
!
!
!
!
no ip domain lookup
ip auth-proxy max-nodata-conns 3
ip admission max-nodata-conns 3
!
!
!
!
!
!
!
!
!
!
!
!
!
!
!
vtp file nvram:vlan.dat


!
!
ip tcp synwait-time 5
!
!
!
!
!
interface FastEthernet0/0
 description *** Unused for Layer2 EtherSwitch ***
 no ip address
 shutdown
 duplex auto
 speed auto
!
interface FastEthernet0/1
 description *** Unused for Layer2 EtherSwitch ***
 ip address 1.1.34.1 255.255.255.0
 duplex auto
 speed auto
!
interface FastEthernet1/0
 switchport access vlan 100

 duplex full
 speed 100
!
interface FastEthernet1/1
 duplex full
 speed 100
!
interface FastEthernet1/2

 duple
*Mar  1 00:39:40.799: %HSRP-5-STATECHANGE: Vlan100 Grp 1 state Standby -> Active
*Mar  1 00:39:40.883: %HSRP-5-STATECHANGE: Vlan100 Grp 1 state Active -> Speakx full
 speed 100
!
interface FastEthernet1/3
 duplex full
 speed 100
!
interface FastEthernet1/4
 duplex full
 speed 100
!
interface FastEthernet1/5
 duplex full
 speed 100
!
interface FastEthernet1/6
 duplex full
 speed 100
!
interface FastEthernet1/7
 duplex full
 speed 100
!
interface FastEthernet1/8
 duplex full
 speed 100
!
interface FastEthernet1/9
 duplex full
 speed 100
!
interface FastEthernet1/10
 duplex full
 speed 100
!
interface FastEthernet1/11
 duplex full
 speed 100
!
interface FastEthernet1/12
 duplex full
 speed 100
!
interface FastEthernet1/13
 duplex full
 speed 100
!
interface FastEthernet1/14
 duplex full
 speed 100
!
interface FastEthernet1/15
 duplex full
 speed 100
!
interface Vlan1
 no ip address
 shutdown
!
interface Vlan100
 ip address 1.1.100.203 255.255.255.0
 standby 1 ip 1.1.100.254
 standby 1 preempt
!
router eigrp 1
 network 1.1.34.0 0.0.0.255
 network 1.1.100.0 0.0.0.255
 no auto-sum
*Mar  1 00:39:42.707: %DUAL-5-NBRCHANGE: IP-EIGRP(0) 1: Neighbor 1.1.100.201 (Vlan100) is down: holding time expiredmary
!
ip forward-protocol nd

!
!
no ip http server
no ip http secure-server
!
no cdp log mismatch duplex
!
!
!
control-plane
!
!
!
!
!
!
!
!
!
banner exec ^C

***************************************************************
This is a normal Router with a SW module inside (NM-16ESW)
It has been preconfigured with hard coded speed and duplex


To create vlans use the command "vlan database" from exec mode
After creating all desired vlans use "exit" to apply the config

To view existing vlans use the command "show vlan-switch brief"

Warning: You are using an old IOS image for this router.
Please update the IOS to enable the "macro" command!
***************************************************************

^C
!
line con 0
 exec-timeout 0 0
 privilege level 15
 logging synchronous
line aux 0
 exec-timeout 0 0
 privilege level 15

 logging synchronous
line vty 0 4
 login
!
!
end

ESW3#
*Mar  1 00:39:4
