서버 실습

시나리오

0. 디스크 설정

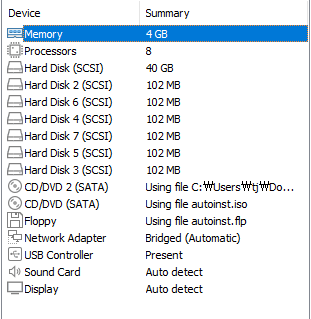

- OS 설치할 메인 디스크 : Mem 4GB / Disk 40GB

- (메인 디스크를 제외하고) 100MB 디스크 6개 추가

=> 디스크 4개는 RAID 작업

Rocky9 : RAID 1+0

Ubuntu : RAID 0+1

=> 디스크 1개는 DiskQuota 적용 후 파일 업로드하여 테스트

=> 디스트 1개는 iSCSI 용도로 사용



1. OS 초기화

- selinux 설정

- 방화벽 끄기

- SSH PermitrootRogin 허용

- remi, epel 리포지터리 정리

- 업데이트 && 업그레이드

2. httpd, apache2 설치



3. php 설치

- /var/www/html 아래에 phpinfo.php 파일을 만든 후 테스트





4. DBMS 설치 (Rocky9에만 설치)

- 실습은 MariaDB로 진행

- 설치 후, 기본 보안 세팅 진행

- 세팅 후, 계정 생성

- 계성 생성 후, DB 생성

- 만든 DB에 계정 허용

- 계정 적용 (초기화)



5. phpmyadmin 설치 (Rocky9)



6. DNS

- rfc파일에 본인 zone파일 등록

- rfc파일에 등록한 이름에 맞게 zone파일 생성 (phpmyadmin만 해당, owncloud는 도메인 등록할 필요 없음)

- vhost 파일 생성

- 재시작 후 도메인으로 접속해보기



7. iSCSI 구축

- 리눅스에 구축 후 본인 윈도우로 테스트



8. owncloud 설치 (Ubuntu)

- Rocky9의 DB를 사용 (원격 구축)







0. 디스크 설정

Ubuntu

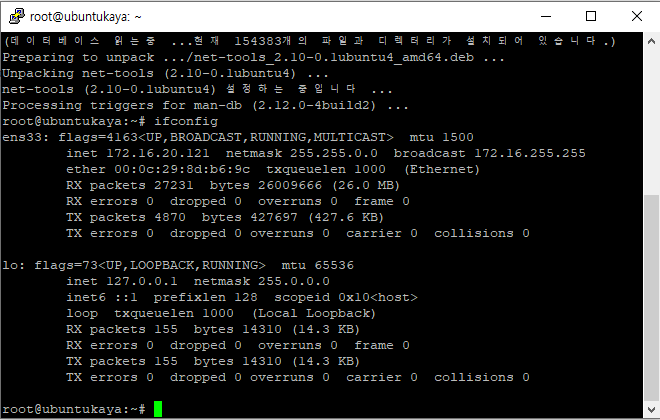

VM설치





Raid구성

root@ubuntukaya:/mnt# fdisk -l
Disk /dev/loop0: 4 KiB, 4096 bytes, 8 sectors
Units: sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 512 bytes
I/O size (minimum/optimal): 512 bytes / 512 bytes


Disk /dev/loop1: 269.77 MiB, 282873856 bytes, 552488 sectors
Units: sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 512 bytes
I/O size (minimum/optimal): 512 bytes / 512 bytes


Disk /dev/loop2: 10.72 MiB, 11239424 bytes, 21952 sectors
Units: sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 512 bytes
I/O size (minimum/optimal): 512 bytes / 512 bytes


Disk /dev/loop3: 74.27 MiB, 77881344 bytes, 152112 sectors
Units: sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 512 bytes
I/O size (minimum/optimal): 512 bytes / 512 bytes


Disk /dev/loop4: 505.09 MiB, 529625088 bytes, 1034424 sectors
Units: sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 512 bytes
I/O size (minimum/optimal): 512 bytes / 512 bytes


Disk /dev/loop5: 91.69 MiB, 96141312 bytes, 187776 sectors
Units: sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 512 bytes
I/O size (minimum/optimal): 512 bytes / 512 bytes


Disk /dev/loop6: 38.83 MiB, 40714240 bytes, 79520 sectors
Units: sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 512 bytes
I/O size (minimum/optimal): 512 bytes / 512 bytes


Disk /dev/loop7: 10.54 MiB, 11051008 bytes, 21584 sectors
Units: sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 512 bytes
I/O size (minimum/optimal): 512 bytes / 512 bytes


Disk /dev/fd0: 1.41 MiB, 1474560 bytes, 2880 sectors
Units: sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 512 bytes
I/O size (minimum/optimal): 512 bytes / 512 bytes
Disklabel type: dos
Disk identifier: 0x90909090

Device     Boot      Start        End    Sectors  Size Id Type
/dev/fd0p1      2425393296 4850786591 2425393296  1.1T 90 unknown
/dev/fd0p2      2425393296 4850786591 2425393296  1.1T 90 unknown
/dev/fd0p3      2425393296 4850786591 2425393296  1.1T 90 unknown
/dev/fd0p4      2425393296 4850786591 2425393296  1.1T 90 unknown


Disk /dev/sda: 40 GiB, 42949672960 bytes, 83886080 sectors
Disk model: VMware Virtual S
Units: sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 512 bytes
I/O size (minimum/optimal): 512 bytes / 512 bytes
Disklabel type: gpt
Disk identifier: 7524DF9F-4977-4C39-82DE-F60D270C5D86

Device     Start      End  Sectors Size Type
/dev/sda1   2048     4095     2048   1M BIOS boot
/dev/sda2   4096 83884031 83879936  40G Linux filesystem


Disk /dev/sdb: 102 MiB, 106954752 bytes, 208896 sectors
Disk model: VMware Virtual S
Units: sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 512 bytes
I/O size (minimum/optimal): 512 bytes / 512 bytes


Disk /dev/sdc: 102 MiB, 106954752 bytes, 208896 sectors
Disk model: VMware Virtual S
Units: sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 512 bytes
I/O size (minimum/optimal): 512 bytes / 512 bytes


Disk /dev/sde: 102 MiB, 106954752 bytes, 208896 sectors
Disk model: VMware Virtual S
Units: sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 512 bytes
I/O size (minimum/optimal): 512 bytes / 512 bytes


Disk /dev/sdf: 102 MiB, 106954752 bytes, 208896 sectors
Disk model: VMware Virtual S
Units: sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 512 bytes
I/O size (minimum/optimal): 512 bytes / 512 bytes


Disk /dev/sdg: 102 MiB, 106954752 bytes, 208896 sectors
Disk model: VMware Virtual S
Units: sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 512 bytes
I/O size (minimum/optimal): 512 bytes / 512 bytes


Disk /dev/sdd: 102 MiB, 106954752 bytes, 208896 sectors
Disk model: VMware Virtual S
Units: sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 512 bytes
I/O size (minimum/optimal): 512 bytes / 512 bytes


Disk /dev/loop8: 500 KiB, 512000 bytes, 1000 sectors
Units: sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 512 bytes
I/O size (minimum/optimal): 512 bytes / 512 bytes


Disk /dev/md1: 200 MiB, 209715200 bytes, 409600 sectors
Units: sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 512 bytes
I/O size (minimum/optimal): 524288 bytes / 1048576 bytes


Disk /dev/md2: 200 MiB, 209715200 bytes, 409600 sectors
Units: sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 512 bytes
I/O size (minimum/optimal): 524288 bytes / 1048576 bytes


Disk /dev/md3: 199 MiB, 208666624 bytes, 407552 sectors
Units: sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 512 bytes
I/O size (minimum/optimal): 524288 bytes / 1048576 bytes

root@ubuntukaya:/mnt# df
파일 시스템     1K-블록    사용     가용 사용% 마운트위치
tmpfs            396108    2124   393984    1% /run
/dev/sda2      40970464 9647588 29209496   25% /
tmpfs           1980524       0  1980524    0% /dev/shm
tmpfs              5120       8     5112    1% /run/lock
tmpfs            396104     132   395972    1% /run/user/1000
/dev/sr0          90084   90084        0  100% /media/kaya/CDROM
/dev/sr1        6057964 6057964        0  100% /media/kaya/Ubuntu 24.04.1 LTS amd64
tmpfs            396104      80   396024    1% /run/user/0
/dev/md3         174432      24   160148    1% /mnt





Diskquota

root@ubuntukaya:/mnt# quota -v quodta
Disk quotas for user quodta (uid 1001):
     Filesystem  blocks   quota   limit   grace   files   quota   limit   grace
       /dev/md3       0    8192   10249               0       0       0



1. Initialization

Ubuntu

SSH PermitRootLogin





Rocky9

Remi/Epel Repo Install

[root@localhost yum.repos.d]# dnf repolist
저장소 ID           저장소 이름
appstream           Rocky Linux 9 - AppStream
baseos              Rocky Linux 9 - BaseOS
epel                Extra Packages for Enterprise Linux 9 - x86_64
epel-cisco-openh264 Extra Packages for Enterprise Linux 9 openh264 (From Cisco) - x86_64
extras              Rocky Linux 9 - Extras
remi-modular        Remi's Modular repository for Enterprise Linux 9 - x86_64
remi-safe           Safe Remi's RPM repository for Enterprise Linux 9 - x86_64



SSH PermitRootLogin

SELINUX

[root@localhost ~]# sestatus
SELinux status:                 disabled



Firewalld

[root@localhost ~]# systemctl status firewalld
○ firewalld.service - firewalld - dynamic firewall daemon
     Loaded: loaded (/usr/lib/systemd/system/firewalld.service; disabled; prese>
     Active: inactive (dead)
       Docs: man:firewalld(1)

11월 01 15:01:57 localhost systemd[1]: Starting firewalld - dynamic firewall da>
11월 01 15:01:57 localhost systemd[1]: Started firewalld - dynamic firewall dae>
11월 01 15:04:35 localhost.localdomain systemd[1]: Stopping firewalld - dynamic>
11월 01 15:04:35 localhost.localdomain systemd[1]: firewalld.service: Deactivat>
11월 01 15:04:35 localhost.localdomain systemd[1]: Stopped firewalld - dynamic >
lines 1-10/10 (END)





2. Apache2/httpd Install

Ubuntu Apache2

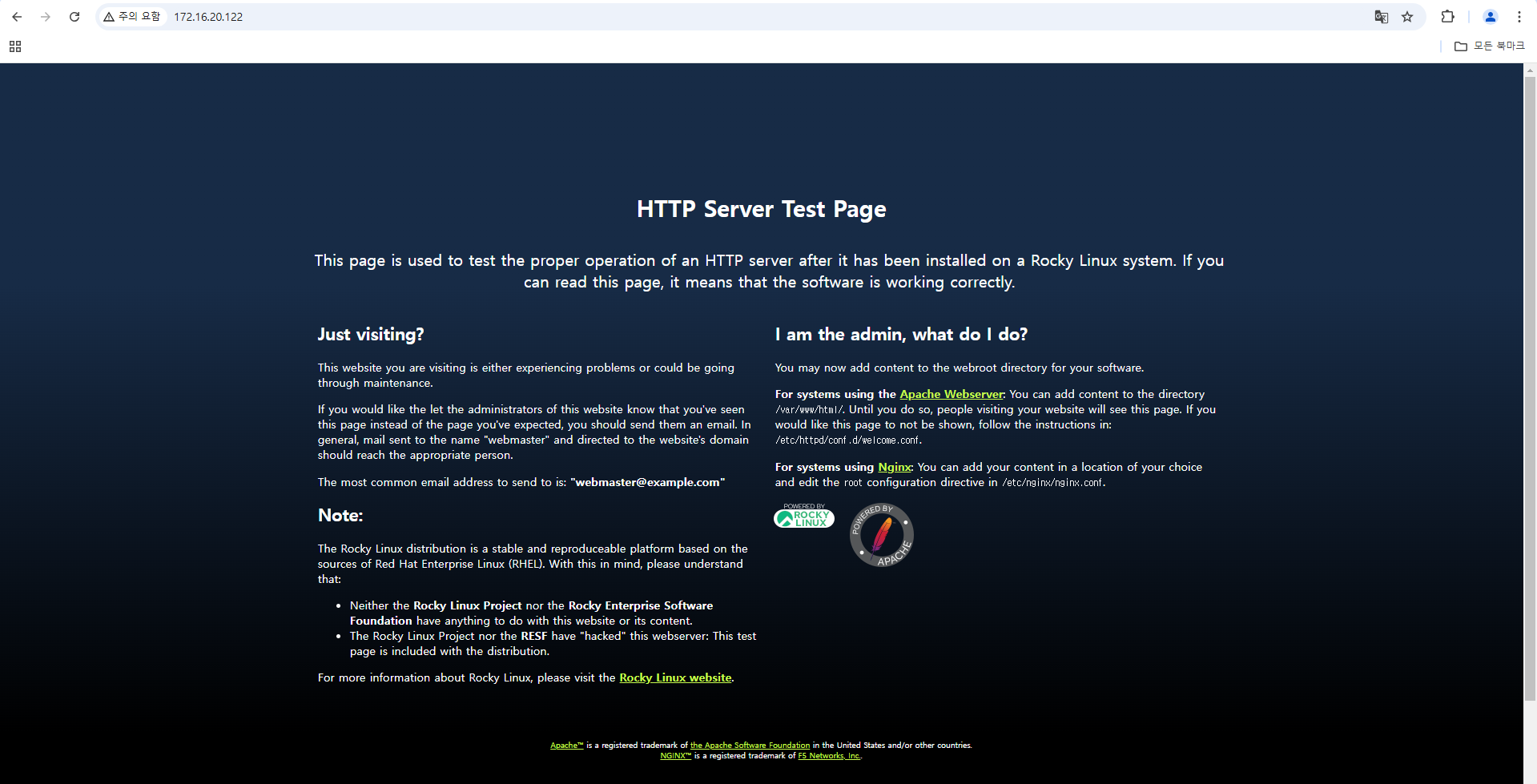

Rocky 9 HTTP

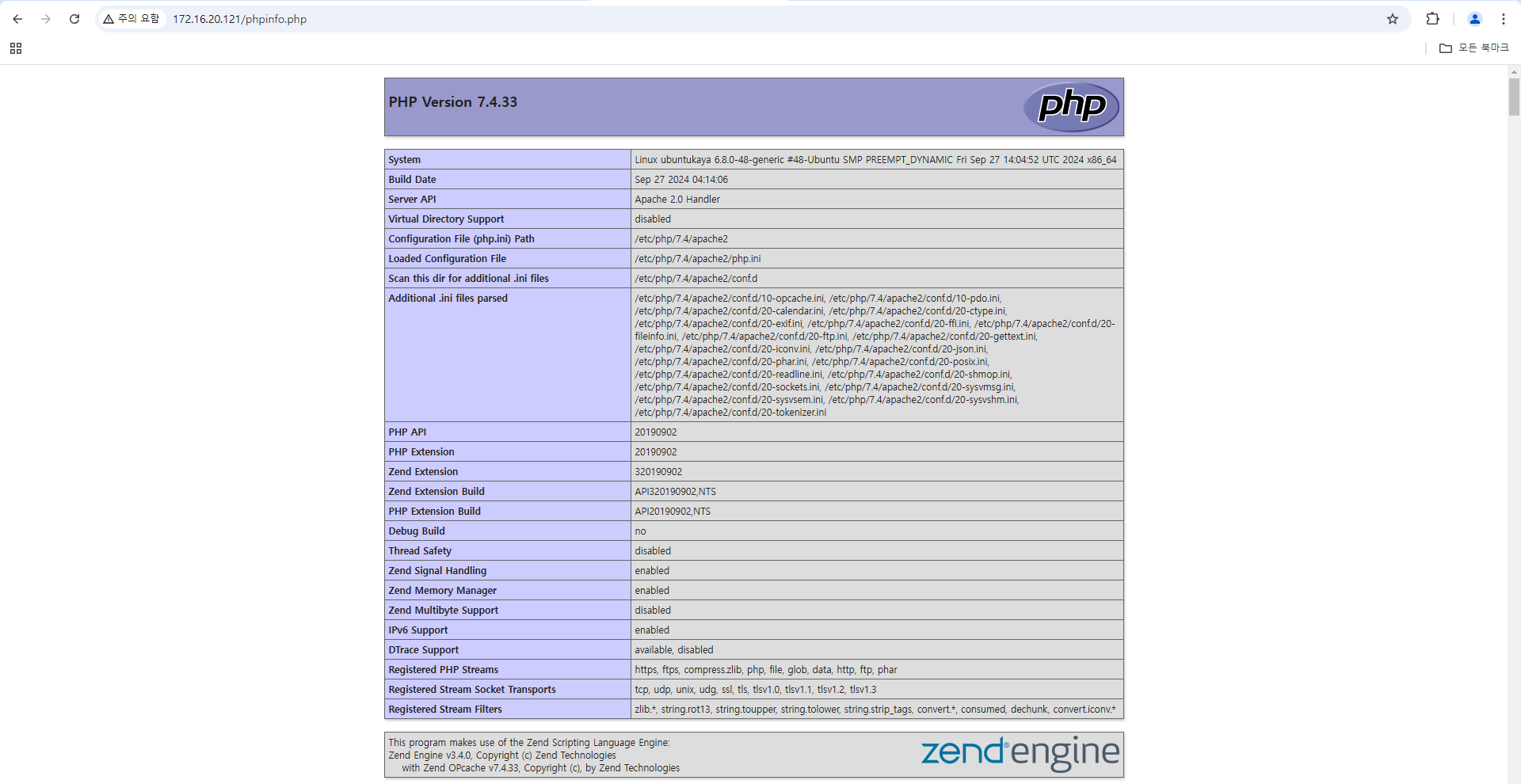

3. PHP Install

Ubuntu ( 7.4 )



Rocky 9 ( 8.0 )





4. DBMS(Mariadb) Install

Rocky 9

[root@localhost html]# mysql_secure_installation

NOTE: RUNNING ALL PARTS OF THIS SCRIPT IS RECOMMENDED FOR ALL MariaDB
      SERVERS IN PRODUCTION USE!  PLEASE READ EACH STEP CAREFULLY!

In order to log into MariaDB to secure it, we'll need the current
password for the root user. If you've just installed MariaDB, and
haven't set the root password yet, you should just press enter here.

Enter current password for root (enter for none):
OK, successfully used password, moving on...

Setting the root password or using the unix_socket ensures that nobody
can log into the MariaDB root user without the proper authorisation.

You already have your root account protected, so you can safely answer 'n'.

Switch to unix_socket authentication [Y/n] n
 ... skipping.

You already have your root account protected, so you can safely answer 'n'.

Change the root password? [Y/n] y
New password:
Re-enter new password:
Password updated successfully!
Reloading privilege tables..
 ... Success!


By default, a MariaDB installation has an anonymous user, allowing anyone
to log into MariaDB without having to have a user account created for
them.  This is intended only for testing, and to make the installation
go a bit smoother.  You should remove them before moving into a
production environment.

Remove anonymous users? [Y/n] n
 ... skipping.

Normally, root should only be allowed to connect from 'localhost'.  This
ensures that someone cannot guess at the root password from the network.

Disallow root login remotely? [Y/n] n
 ... skipping.

By default, MariaDB comes with a database named 'test' that anyone can
access.  This is also intended only for testing, and should be removed
before moving into a production environment.

Remove test database and access to it? [Y/n] y
 - Dropping test database...
 ... Success!
 - Removing privileges on test database...
 ... Success!

Reloading the privilege tables will ensure that all changes made so far
will take effect immediately.

Reload privilege tables now? [Y/n] y
 ... Success!

Cleaning up...

All done!  If you've completed all of the above steps, your MariaDB
installation should now be secure.

Thanks for using MariaDB!



MariaDB [(none)]> show grants for 'r9db'@'%';
+-----------------------------------------------------------------------------------------------------+
| Grants for r9db@%                                                                                   |
+-----------------------------------------------------------------------------------------------------+
| GRANT USAGE ON *.* TO `r9db`@`%` IDENTIFIED BY PASSWORD '*1B6D4B98A6D6E9AA64400F85B63237CA840D5D02' |
| GRANT ALL PRIVILEGES ON `r9db`.* TO `r9db`@`%`                                                      |
+-----------------------------------------------------------------------------------------------------+
2 rows in set (0.000 sec)

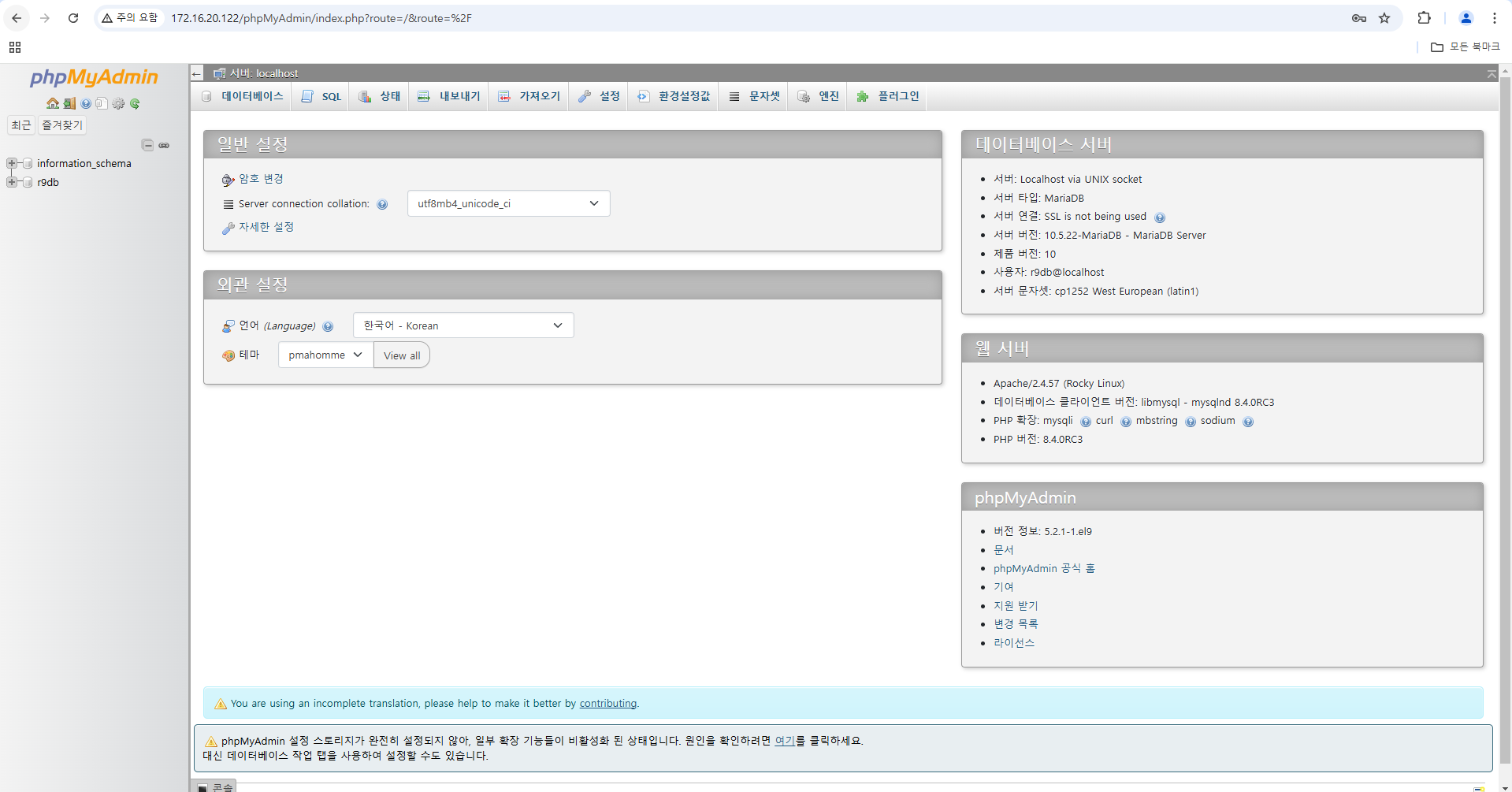

5. phpMyAdmin Install

Rocky 9



6. DNS Server

Ubuntu(ubuntu.com)

C:\Users\tj>nslookup ns.ubuntu.com 172.16.20.121
서버:    UnKnown
Address:  172.16.20.121

이름:    ns.ubuntu.com
Address:  172.16.20.121



Rocky 9(rocky.com)

C:\Users\tj>nslookup ns.rocky.com 172.16.20.122
서버:    UnKnown
Address:  172.16.20.122

이름:    ns.rocky.com
Address:  172.16.20.122



7. ISCSI

Ubuntu(server)

/> ls
o- / ..................................................................... [...]
  o- backstores .......................................................... [...]
  | o- block .............................................. [Storage Objects: 1]
  | | o- block_disk ................. [/dev/sdf (102.0MiB) write-thru activated]
  | |   o- alua ............................................... [ALUA Groups: 1]
  | |     o- default_tg_pt_gp ................... [ALUA state: Active/optimized]
  | o- fileio ............................................. [Storage Objects: 1]
  | | o- fileid_disk ............ [/tmp/fileiod (5.0MiB) write-thru deactivated]
  | |   o- alua ............................................... [ALUA Groups: 1]
  | |     o- default_tg_pt_gp ................... [ALUA state: Active/optimized]
  | o- pscsi .............................................. [Storage Objects: 0]
  | o- ramdisk ............................................ [Storage Objects: 0]
  o- iscsi ........................................................ [Targets: 1]
  | o- iqn.2024-11.com.ubuntu.target:ubuntu-target ................... [TPGs: 1]
  |   o- tpg1 ........................................... [no-gen-acls, no-auth]
  |     o- acls ...................................................... [ACLs: 1]
  |     | o- iqn.2024-11.com.ubuntu.initiator:ubuntu-initiator  [Mapped LUNs: 1]
  |     |   o- mapped_lun0 ........................ [lun0 block/block_disk (rw)]
  |     o- luns ...................................................... [LUNs: 1]
  |     | o- lun0 ............. [block/block_disk (/dev/sdf) (default_tg_pt_gp)]
  |     o- portals ................................................ [Portals: 1]
  |       o- 0.0.0.0:3260 ................................................. [OK]
  o- loopback ..................................................... [Targets: 0]
  o- vhost ........................................................ [Targets: 0]
/>



8. Owncloude Install
