Demand Circuit
- 주기적으로 전달하는 Hello 패킷 및 30분마다 전송하는 LSA 패킷을 억제
- LSA Reflesh 방지에 유용
--> - Point to Point 또는 Point to Multipoint 인터페이스에서 설정이 가능하다.
- Virtual Link 설정시 자동으로 설정된다.
- 멀티엑세스 인터페이스에서 설정 가능하다.
Demand Circuit Refresh 전송 시기
- 네트워크 토폴로지의 변경
- OSPF Demand Circuit을 이해 불가능한 라우터가 존재하는 경우
설정 명령어
1. 설정
conf t
int [가상 인터페이스]
ip ospf demand-circuit
한쪽 인터페이스에만 설정해도 상대 인터페이스에도 적용이 됨.
2. 확인
show ip ospf interface [가상 인터페이스]
실습

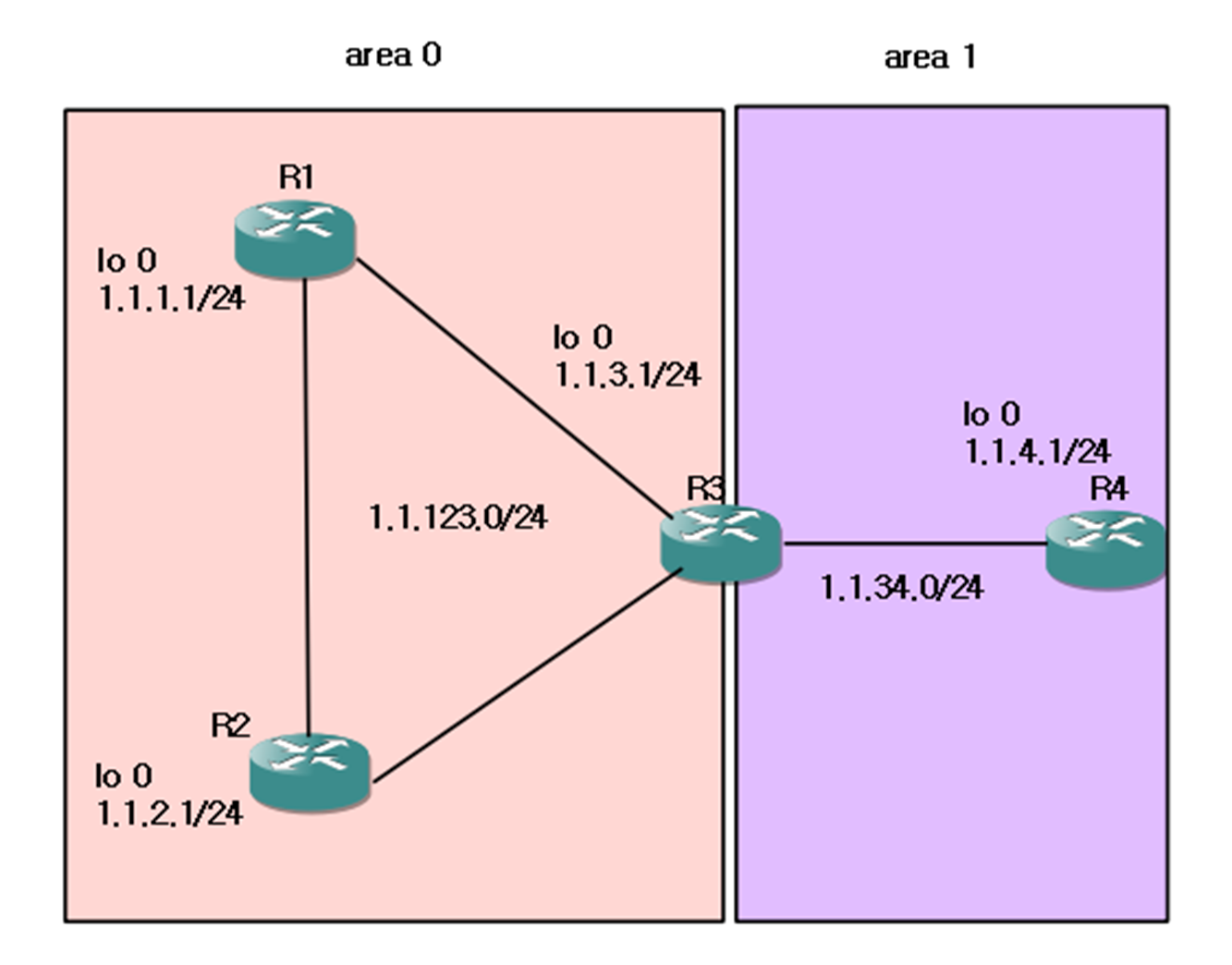

물리/논리 랩
demand circuit 설정
R1
R1 show runBuilding configuration...
Current configuration : 1970 bytes
!
upgrade fpd auto
version 12.4
service timestamps debug datetime msec
service timestamps log datetime msec
no service password-encryption
!
hostname R1
!
boot-start-marker
boot-end-marker
!
logging message-counter syslog
!
no aaa new-model
ip source-route
no ip icmp rate-limit unreachable
ip cef
!
!
!
!
no ip domain lookup
no ipv6 cef
!
multilink bundle-name authenticated
!
!
voice dsp waitstate 0
!
!
!
!
!
!
!
!
!
!
!
!
!
memory-size iomem 0
archive
log config
hidekeys
!
!
!
!
!
ip tcp synwait-time 5
!
!
!
!
interface Loopback0
ip address 1.1.1.1 255.255.255.0
ip ospf network point-to-point
!
interface FastEthernet0/0
no ip address
shutdown
duplex half
!
interface Serial1/0
no ip address
encapsulation frame-relay
ip ospf network broadcast
serial restart-delay 0
!
interface Serial1/0.1 multipoint
ip address 1.1.123.1 255.255.255.0
ip ospf network broadcast
snmp trap link-status
frame-relay map ip 1.1.123.3 103 broadcast
frame-relay map ip 1.1.123.2 102 broadcast
!
interface Serial1/1
no ip address
shutdown
serial restart-delay 0
!
interface Serial1/2
no ip address
shutdown
serial restart-delay 0
!
interface Serial1/3
no ip address
shutdown
serial restart-delay 0
!
interface Ethernet2/0
no ip address
shutdown
duplex half
!
interface Ethernet2/1
no ip address
shutdown
duplex half
!
interface Ethernet2/2
no ip address
shutdown
duplex half
!
interface Ethernet2/3
no ip address
shutdown
duplex half
!
router ospf 1
log-adjacency-changes
network 1.1.1.0 0.0.0.255 area 0
network 1.1.123.0 0.0.0.255 area 0
!
ip forward-protocol nd
no ip http server
no ip http secure-server
!
!
!
logging alarm informational
no cdp log mismatch duplex
!
!
!
!
!
!
!
control-plane
!
!
!
mgcp fax t38 ecm
!
!
!
!
gatekeeper
shutdown
!
!
line con 0
exec-timeout 0 0
privilege level 15
logging synchronous
stopbits 1
line aux 0
exec-timeout 0 0
privilege level 15
logging synchronous
stopbits 1
line vty 0 4
login
!
end
Routing Protocol is "ospf 1"
Outgoing update filter list for all interfaces is not set
Incoming update filter list for all interfaces is not set
Router ID 1.1.1.1
Number of areas in this router is 1. 1 normal 0 stub 0 nssa
Maximum path: 4
Routing for Networks:
1.1.1.0 0.0.0.255 area 0
1.1.123.0 0.0.0.255 area 0
Reference bandwidth unit is 100 mbps
Routing Information Sources:
Gateway Distance Last Update
1.1.3.1 110 00:06:35
1.1.2.1 110 00:06:25
Distance: (default is 110)
^
% Invalid input detected at '^' marker.
Neighbor ID Pri State Dead Time Address Interface
1.1.2.1 1 FULL/DROTHER 00:00:30 1.1.123.2 Serial1/0.1
1.1.3.1 1 FULL/BDR 00:00:31 1.1.123.3 Serial1/0.1
OSPF Router with ID (1.1.1.1) (Process ID 1)
Router Link States (Area 0)
Link ID ADV Router Age Seq# Checksum Link count
1.1.1.1 1.1.1.1 101 0x80000008 0x004B88 2
1.1.2.1 1.1.2.1 102 0x80000008 0x005C73 2
1.1.3.1 1.1.3.1 1 (DNA) 0x80000009 0x006E5B 2
Net Link States (Area 0)
Link ID ADV Router Age Seq# Checksum
1.1.123.1 1.1.1.1 101 0x80000002 0x00DBC7
Summary Net Link States (Area 0)
Link ID ADV Router Age Seq# Checksum
1.1.4.1 1.1.3.1 472 0x80000001 0x009A54
1.1.34.0 1.1.3.1 487 0x80000002 0x004D84Loopback0 is up, line protocol is up
Internet Address 1.1.1.1/24, Area 0
Process ID 1, Router ID 1.1.1.1, Network Type POINT_TO_POINT, Cost: 1
Transmit Delay is 1 sec, State POINT_TO_POINT
Timer intervals configured, Hello 10, Dead 40, Wait 40, Retransmit 5
oob-resync timeout 40
Supports Link-local Signaling (LLS)
Cisco NSF helper support enabled
IETF NSF helper support enabled
Index 1/1, flood queue length 0
Next 0x0(0)/0x0(0)
Last flood scan length is 0, maximum is 0
Last flood scan time is 0 msec, maximum is 0 msec
Neighbor Count is 0, Adjacent neighbor count is 0
Suppress hello for 0 neighbor(s)
Serial1/0.1 is up, line protocol is up
Internet Address 1.1.123.1/24, Area 0
Process ID 1, Router ID 1.1.1.1, Network Type BROADCAST, Cost: 64
Transmit Delay is 1 sec, State DR, Priority 1
Designated Router (ID) 1.1.1.1, Interface address 1.1.123.1
Backup Designated router (ID) 1.1.3.1, Interface address 1.1.123.3
Timer intervals configured, Hello 10, Dead 40, Wait 40, Retransmit 5
oob-resync timeout 40
Hello due in 00:00:08
Supports Link-local Signaling (LLS)
Cisco NSF helper support enabled
IETF NSF helper support enabled
Index 2/2, flood queue length 0
Next 0x0(0)/0x0(0)
Last flood scan length is 1, maximum is 2
Last flood scan time is 0 msec, maximum is 4 msec
Neighbor Count is 2, Adjacent neighbor count is 2
Adjacent with neighbor 1.1.2.1
Adjacent with neighbor 1.1.3.1 (Backup Designated Router)
Suppress hello for 0 neighbor(s)Interface PID Area IP Address/Mask Cost State Nbrs F/C
Lo0 1 0 1.1.1.1/24 1 P2P 0/0
Se1/0.1 1 0 1.1.123.1/24 64 DR 2/2Codes: C - connected, S - static, R - RIP, M - mobile, B - BGP
D - EIGRP, EX - EIGRP external, O - OSPF, IA - OSPF inter area
N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2
E1 - OSPF external type 1, E2 - OSPF external type 2
i - IS-IS, su - IS-IS summary, L1 - IS-IS level-1, L2 - IS-IS level-2
ia - IS-IS inter area, * - candidate default, U - per-user static route
o - ODR, P - periodic downloaded static route
Gateway of last resort is not set
1.0.0.0/8 is variably subnetted, 6 subnets, 2 masks
C 1.1.1.0/24 is directly connected, Loopback0
O 1.1.2.0/24 [110/65] via 1.1.123.2, 00:06:26, Serial1/0.1
O 1.1.3.0/24 [110/65] via 1.1.123.3, 00:06:36, Serial1/0.1
O IA 1.1.4.1/32 [110/129] via 1.1.123.3, 00:06:36, Serial1/0.1
O IA 1.1.34.0/24 [110/128] via 1.1.123.3, 00:06:36, Serial1/0.1
C 1.1.123.0/24 is directly connected, Serial1/0.1R2
R2 show runBuilding configuration...
Current configuration : 1969 bytes
!
upgrade fpd auto
version 12.4
service timestamps debug datetime msec
service timestamps log datetime msec
no service password-encryption
!
hostname R2
!
boot-start-marker
boot-end-marker
!
logging message-counter syslog
!
no aaa new-model
ip source-route
no ip icmp rate-limit unreachable
ip cef
!
!
!
!
no ip domain lookup
no ipv6 cef
!
multilink bundle-name authenticated
!
!
voice dsp waitstate 0
!
!
!
!
!
!
!
!
!
!
!
!
!
memory-size iomem 0
archive
log config
hidekeys
!
!
!
!
!
ip tcp synwait-time 5
!
!
!
!
interface Loopback0
ip address 1.1.2.1 255.255.255.0
ip ospf network point-to-point
!
interface FastEthernet0/0
no ip address
shutdown
duplex half
!
interface Serial1/0
no ip address
encapsulation frame-relay
ip ospf network broadcast
serial restart-delay 0
!
interface Serial1/0.1 multipoint
ip address 1.1.123.2 255.255.255.0
ip ospf network broadcast
snmp trap link-status
frame-relay map ip 1.1.123.3 23 broadcast
frame-relay map ip 1.1.123.1 210 broadcast
!
interface Serial1/1
no ip address
shutdown
serial restart-delay 0
!
interface Serial1/2
no ip address
shutdown
serial restart-delay 0
!
interface Serial1/3
no ip address
shutdown
serial restart-delay 0
!
interface Ethernet2/0
no ip address
shutdown
duplex half
!
interface Ethernet2/1
no ip address
shutdown
duplex half
!
interface Ethernet2/2
no ip address
shutdown
duplex half
!
interface Ethernet2/3
no ip address
shutdown
duplex half
!
router ospf 1
log-adjacency-changes
network 1.1.2.0 0.0.0.255 area 0
network 1.1.123.0 0.0.0.255 area 0
!
ip forward-protocol nd
no ip http server
no ip http secure-server
!
!
!
logging alarm informational
no cdp log mismatch duplex
!
!
!
!
!
!
!
control-plane
!
!
!
mgcp fax t38 ecm
!
!
!
!
gatekeeper
shutdown
!
!
line con 0
exec-timeout 0 0
privilege level 15
logging synchronous
stopbits 1
line aux 0
exec-timeout 0 0
privilege level 15
logging synchronous
stopbits 1
line vty 0 4
login
!
end
Routing Protocol is "ospf 1"
Outgoing update filter list for all interfaces is not set
Incoming update filter list for all interfaces is not set
Router ID 1.1.2.1
Number of areas in this router is 1. 1 normal 0 stub 0 nssa
Maximum path: 4
Routing for Networks:
1.1.2.0 0.0.0.255 area 0
1.1.123.0 0.0.0.255 area 0
Reference bandwidth unit is 100 mbps
Routing Information Sources:
Gateway Distance Last Update
1.1.1.1 110 00:06:28
1.1.3.1 110 00:06:28
Distance: (default is 110)
^
% Invalid input detected at '^' marker.
Neighbor ID Pri State Dead Time Address Interface
1.1.1.1 1 FULL/DR 00:00:35 1.1.123.1 Serial1/0.1
1.1.3.1 1 FULL/BDR 00:00:37 1.1.123.3 Serial1/0.1
OSPF Router with ID (1.1.2.1) (Process ID 1)
Router Link States (Area 0)
Link ID ADV Router Age Seq# Checksum Link count
1.1.1.1 1.1.1.1 105 0x80000008 0x004B88 2
1.1.2.1 1.1.2.1 105 0x80000008 0x005C73 2
1.1.3.1 1.1.3.1 1 (DNA) 0x80000009 0x006E5B 2
Net Link States (Area 0)
Link ID ADV Router Age Seq# Checksum
1.1.123.1 1.1.1.1 105 0x80000002 0x00DBC7
Summary Net Link States (Area 0)
Link ID ADV Router Age Seq# Checksum
1.1.4.1 1.1.3.1 476 0x80000001 0x009A54
1.1.34.0 1.1.3.1 491 0x80000002 0x004D84Loopback0 is up, line protocol is up
Internet Address 1.1.2.1/24, Area 0
Process ID 1, Router ID 1.1.2.1, Network Type POINT_TO_POINT, Cost: 1
Transmit Delay is 1 sec, State POINT_TO_POINT
Timer intervals configured, Hello 10, Dead 40, Wait 40, Retransmit 5
oob-resync timeout 40
Supports Link-local Signaling (LLS)
Cisco NSF helper support enabled
IETF NSF helper support enabled
Index 1/1, flood queue length 0
Next 0x0(0)/0x0(0)
Last flood scan length is 0, maximum is 0
Last flood scan time is 0 msec, maximum is 0 msec
Neighbor Count is 0, Adjacent neighbor count is 0
Suppress hello for 0 neighbor(s)
Serial1/0.1 is up, line protocol is up
Internet Address 1.1.123.2/24, Area 0
Process ID 1, Router ID 1.1.2.1, Network Type BROADCAST, Cost: 64
Transmit Delay is 1 sec, State DROTHER, Priority 1
Designated Router (ID) 1.1.1.1, Interface address 1.1.123.1
Backup Designated router (ID) 1.1.3.1, Interface address 1.1.123.3
Timer intervals configured, Hello 10, Dead 40, Wait 40, Retransmit 5
oob-resync timeout 40
Hello due in 00:00:05
Supports Link-local Signaling (LLS)
Cisco NSF helper support enabled
IETF NSF helper support enabled
Index 2/2, flood queue length 0
Next 0x0(0)/0x0(0)
Last flood scan length is 0, maximum is 1
Last flood scan time is 0 msec, maximum is 4 msec
Neighbor Count is 2, Adjacent neighbor count is 2
Adjacent with neighbor 1.1.1.1 (Designated Router)
Adjacent with neighbor 1.1.3.1 (Backup Designated Router)
Suppress hello for 0 neighbor(s)Interface PID Area IP Address/Mask Cost State Nbrs F/C
Lo0 1 0 1.1.2.1/24 1 P2P 0/0
Se1/0.1 1 0 1.1.123.2/24 64 DROTH 2/2Codes: C - connected, S - static, R - RIP, M - mobile, B - BGP
D - EIGRP, EX - EIGRP external, O - OSPF, IA - OSPF inter area
N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2
E1 - OSPF external type 1, E2 - OSPF external type 2
i - IS-IS, su - IS-IS summary, L1 - IS-IS level-1, L2 - IS-IS level-2
ia - IS-IS inter area, * - candidate default, U - per-user static route
o - ODR, P - periodic downloaded static route
Gateway of last resort is not set
1.0.0.0/8 is variably subnetted, 6 subnets, 2 masks
O 1.1.1.0/24 [110/65] via 1.1.123.1, 00:06:29, Serial1/0.1
C 1.1.2.0/24 is directly connected, Loopback0
O 1.1.3.0/24 [110/65] via 1.1.123.3, 00:06:29, Serial1/0.1
O IA 1.1.4.1/32 [110/129] via 1.1.123.3, 00:06:29, Serial1/0.1
O IA 1.1.34.0/24 [110/128] via 1.1.123.3, 00:06:29, Serial1/0.1
C 1.1.123.0/24 is directly connected, Serial1/0.1R3
R3 show runBuilding configuration...
Current configuration : 2156 bytes
!
upgrade fpd auto
version 12.4
service timestamps debug datetime msec
service timestamps log datetime msec
no service password-encryption
!
hostname R3
!
boot-start-marker
boot-end-marker
!
logging message-counter syslog
!
no aaa new-model
ip source-route
no ip icmp rate-limit unreachable
ip cef
!
!
!
!
no ip domain lookup
no ipv6 cef
!
multilink bundle-name authenticated
!
!
voice dsp waitstate 0
!
!
!
!
!
!
!
!
!
!
!
!
!
memory-size iomem 0
archive
log config
hidekeys
!
!
!
!
!
ip tcp synwait-time 5
!
!
!
!
interface Loopback0
ip address 1.1.3.1 255.255.255.0
ip ospf network point-to-point
!
interface FastEthernet0/0
no ip address
shutdown
duplex half
!
interface Serial1/0
no ip address
encapsulation frame-relay
serial restart-delay 0
!
interface Serial1/0.1 multipoint
ip address 1.1.123.3 255.255.255.0
ip ospf network broadcast
ip ospf demand-circuit
snmp trap link-status
frame-relay map ip 1.1.123.1 310 broadcast
frame-relay map ip 1.1.123.2 32 broadcast
!
interface Serial1/0.2 point-to-point
ip address 1.1.34.1 255.255.255.0
ip ospf demand-circuit
snmp trap link-status
frame-relay interface-dlci 34
!
interface Serial1/1
no ip address
shutdown
serial restart-delay 0
!
interface Serial1/2
no ip address
shutdown
serial restart-delay 0
!
interface Serial1/3
no ip address
shutdown
serial restart-delay 0
!
interface Ethernet2/0
no ip address
shutdown
duplex half
!
interface Ethernet2/1
no ip address
shutdown
duplex half
!
interface Ethernet2/2
no ip address
shutdown
duplex half
!
interface Ethernet2/3
no ip address
shutdown
duplex half
!
router ospf 1
log-adjacency-changes
network 1.1.3.0 0.0.0.255 area 0
network 1.1.34.0 0.0.0.255 area 1
network 1.1.123.0 0.0.0.255 area 0
!
ip forward-protocol nd
no ip http server
no ip http secure-server
!
!
!
logging alarm informational
no cdp log mismatch duplex
!
!
!
!
!
!
!
control-plane
!
!
!
mgcp fax t38 ecm
!
!
!
!
gatekeeper
shutdown
!
!
line con 0
exec-timeout 0 0
privilege level 15
logging synchronous
stopbits 1
line aux 0
exec-timeout 0 0
privilege level 15
logging synchronous
stopbits 1
line vty 0 4
login
!
end
Routing Protocol is "ospf 1"
Outgoing update filter list for all interfaces is not set
Incoming update filter list for all interfaces is not set
Router ID 1.1.3.1
It is an area border router
Number of areas in this router is 2. 2 normal 0 stub 0 nssa
Maximum path: 4
Routing for Networks:
1.1.3.0 0.0.0.255 area 0
1.1.34.0 0.0.0.255 area 1
1.1.123.0 0.0.0.255 area 0
Reference bandwidth unit is 100 mbps
Routing Information Sources:
Gateway Distance Last Update
1.1.1.1 110 00:01:43
1.1.2.1 110 00:01:43
1.1.4.1 110 00:07:59
Distance: (default is 110)
^
% Invalid input detected at '^' marker.
Neighbor ID Pri State Dead Time Address Interface
1.1.1.1 1 FULL/DR 00:00:31 1.1.123.1 Serial1/0.1
1.1.2.1 1 FULL/DROTHER 00:00:33 1.1.123.2 Serial1/0.1
1.1.4.1 0 FULL/ - - 1.1.34.2 Serial1/0.2
OSPF Router with ID (1.1.3.1) (Process ID 1)
Router Link States (Area 0)
Link ID ADV Router Age Seq# Checksum Link count
1.1.1.1 1.1.1.1 109 0x80000008 0x004B88 2
1.1.2.1 1.1.2.1 109 0x80000008 0x005C73 2
1.1.3.1 1.1.3.1 108 0x80000009 0x006E5B 2
Net Link States (Area 0)
Link ID ADV Router Age Seq# Checksum
1.1.123.1 1.1.1.1 109 0x80000002 0x00DBC7
Summary Net Link States (Area 0)
Link ID ADV Router Age Seq# Checksum
1.1.4.1 1.1.3.1 479 0x80000001 0x009A54
1.1.34.0 1.1.3.1 34 0x80000003 0x004B85
Router Link States (Area 1)
Link ID ADV Router Age Seq# Checksum Link count
1.1.3.1 1.1.3.1 34 0x80000006 0x00E061 2
1.1.4.1 1.1.4.1 Loopback0 is up, line protocol is up
Internet Address 1.1.3.1/24, Area 0
Process ID 1, Router ID 1.1.3.1, Network Type POINT_TO_POINT, Cost: 1
Transmit Delay is 1 sec, State POINT_TO_POINT
Timer intervals configured, Hello 10, Dead 40, Wait 40, Retransmit 5
oob-resync timeout 40
Supports Link-local Signaling (LLS)
Cisco NSF helper support enabled
IETF NSF helper support enabled
Index 1/2, flood queue length 0
Next 0x0(0)/0x0(0)
Last flood scan length is 0, maximum is 0
Last flood scan time is 0 msec, maximum is 0 msec
Neighbor Count is 0, Adjacent neighbor count is 0
Suppress hello for 0 neighbor(s)
Serial1/0.1 is up, line protocol is up
Internet Address 1.1.123.3/24, Area 0
Process ID 1, Router ID 1.1.3.1, Network Type BROADCAST, Cost: 64
Configured as demand circuit.
Run as demand circuit.
DoNotAge LSA allowed.
Transmit Delay is 1 sec, State BDR, Priority 1
Designated Router (ID) 1.1.1.1, Interface address 1.1.123.1
Backup Designated router (ID) 1.1.3.1, Interface address 1.1.123.3
Timer intervals configured, Hello 10, Dead 40, Wait 40, Retransmit 5
oob-resync timeout 40
Hello due in 00:00:03
Supports Link-local Signaling (LLS)
Cisco NSF helper support enabled
IETF NSF helper support enabled
Index 2/3, flood queue length 0
Next 0x0(0)/0x0(0)
Last flood scan length is 0, maximum is 1
Last flood scan time is 0 msec, maximum is 4 msec
Neighbor Count is 2, Adjacent neighbor count is 2
Adjacent with neighbor 1.1.1.1 (Designated Router)
Adjacent with neighbor 1.1.2.1
Suppress hello for 0 neighbor(s)
Serial1/0.2 is up, line protocol is up
Internet Address 1.1.34.1/24, Area 1
Process ID 1, Router ID 1.1.3.1, Network Type POINT_TO_POINT, Cost: 64
Configured as demand circuit.
Run as demand circuit.
DoNotAge LSA allowed.
Transmit Delay is 1 sec, State POINT_TO_POINT
Timer intervals configured, Hello 10, Dead 40, Wait 40, Retransmit 5
oob-resync timeout 40
Hello due in 00:00:06
Supports Link-local Signaling (LLS)
Cisco NSF helper support enabled
IETF NSF helper support enabled
Index 1/1, flood queue length 0
Next 0x0(0)/0x0(0)
Last flood scan length is 1, maximum is 1
Last flood scan time is 0 msec, maximum is 4 msec
Neighbor Count is 1, Adjacent neighbor count is 1
Adjacent with neighbor 1.1.4.1 (Hello suppressed)
Suppress hello for 1 neighbor(s)Interface PID Area IP Address/Mask Cost State Nbrs F/C
Lo0 1 0 1.1.3.1/24 1 P2P 0/0
Se1/0.1 1 0 1.1.123.3/24 64 BDR 2/2
Se1/0.2 1 1 1.1.34.1/24 64 P2P 1/1Codes: C - connected, S - static, R - RIP, M - mobile, B - BGP
D - EIGRP, EX - EIGRP external, O - OSPF, IA - OSPF inter area
N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2
E1 - OSPF external type 1, E2 - OSPF external type 2
i - IS-IS, su - IS-IS summary, L1 - IS-IS level-1, L2 - IS-IS level-2
ia - IS-IS inter area, * - candidate default, U - per-user static route
o - ODR, P - periodic downloaded static route
Gateway of last resort is not set
1.0.0.0/8 is variably subnetted, 6 subnets, 2 masks
O 1.1.1.0/24 [110/65] via 1.1.123.1, 00:01:44, Serial1/0.1
O 1.1.2.0/24 [110/65] via 1.1.123.2, 00:01:44, Serial1/0.1
C 1.1.3.0/24 is directly connected, Loopback0
O 1.1.4.1/32 [110/65] via 1.1.34.2, 00:08:00, Serial1/0.2
C 1.1.34.0/24 is directly connected, Serial1/0.2
C 1.1.123.0/24 is directly connected, Serial1/0.1R4
R4 show runBuilding configuration...
Current configuration : 1832 bytes
!
upgrade fpd auto
version 12.4
service timestamps debug datetime msec
service timestamps log datetime msec
no service password-encryption
!
hostname R4
!
boot-start-marker
boot-end-marker
!
logging message-counter syslog
!
no aaa new-model
ip source-route
no ip icmp rate-limit unreachable
ip cef
!
!
!
!
no ip domain lookup
no ipv6 cef
!
multilink bundle-name authenticated
!
!
voice dsp waitstate 0
!
!
!
!
!
!
!
!
!
!
!
!
!
memory-size iomem 0
archive
log config
hidekeys
!
!
!
!
!
ip tcp synwait-time 5
!
!
!
!
interface Loopback0
ip address 1.1.4.1 255.255.255.0
!
interface FastEthernet0/0
no ip address
shutdown
duplex half
!
interface Serial1/0
no ip address
encapsulation frame-relay
serial restart-delay 0
!
interface Serial1/0.1 point-to-point
ip address 1.1.34.2 255.255.255.0
snmp trap link-status
frame-relay interface-dlci 43
!
interface Serial1/1
no ip address
shutdown
serial restart-delay 0
!
interface Serial1/2
no ip address
shutdown
serial restart-delay 0
!
interface Serial1/3
no ip address
shutdown
serial restart-delay 0
!
interface Ethernet2/0
no ip address
shutdown
duplex half
!
interface Ethernet2/1
no ip address
shutdown
duplex half
!
interface Ethernet2/2
no ip address
shutdown
duplex half
!
interface Ethernet2/3
no ip address
shutdown
duplex half
!
router ospf 1
log-adjacency-changes
network 1.1.4.0 0.0.0.255 area 1
network 1.1.34.0 0.0.0.255 area 1
!
ip forward-protocol nd
no ip http server
no ip http secure-server
!
!
!
logging alarm informational
no cdp log mismatch duplex
!
!
!
!
!
!
!
control-plane
!
!
!
mgcp fax t38 ecm
!
!
!
!
gatekeeper
shutdown
!
!
line con 0
exec-timeout 0 0
privilege level 15
logging synchronous
stopbits 1
line aux 0
exec-timeout 0 0
privilege level 15
logging synchronous
stopbits 1
line vty 0 4
login
!
end
Routing Protocol is "ospf 1"
Outgoing update filter list for all interfaces is not set
Incoming update filter list for all interfaces is not set
Router ID 1.1.4.1
Number of areas in this router is 1. 1 normal 0 stub 0 nssa
Maximum path: 4
Routing for Networks:
1.1.4.0 0.0.0.255 area 1
1.1.34.0 0.0.0.255 area 1
Reference bandwidth unit is 100 mbps
Routing Information Sources:
Gateway Distance Last Update
1.1.3.1 110 00:01:46
Distance: (default is 110)
^
% Invalid input detected at '^' marker.
Neighbor ID Pri State Dead Time Address Interface
1.1.3.1 0 FULL/ - - 1.1.34.1 Serial1/0.1
OSPF Router with ID (1.1.4.1) (Process ID 1)
Router Link States (Area 1)
Link ID ADV Router Age Seq# Checksum Link count
1.1.3.1 1.1.3.1 1 (DNA) 0x80000005 0x00E260 2
1.1.4.1 1.1.4.1 492 0x80000005 0x0067C2 3
Summary Net Link States (Area 1)
Link ID ADV Router Age Seq# Checksum
1.1.1.0 1.1.3.1 1 (DNA) 0x80000001 0x00C52D
1.1.2.0 1.1.3.1 1 (DNA) 0x80000001 0x00BA37
1.1.3.0 1.1.3.1 1 (DNA) 0x80000002 0x002B05
1.1.123.0 1.1.3.1 1 (DNA) 0x80000002 0x007602Loopback0 is up, line protocol is up
Internet Address 1.1.4.1/24, Area 1
Process ID 1, Router ID 1.1.4.1, Network Type LOOPBACK, Cost: 1
Loopback interface is treated as a stub Host
Serial1/0.1 is up, line protocol is up
Internet Address 1.1.34.2/24, Area 1
Process ID 1, Router ID 1.1.4.1, Network Type POINT_TO_POINT, Cost: 64
Run as demand circuit.
DoNotAge LSA allowed.
Transmit Delay is 1 sec, State POINT_TO_POINT
Timer intervals configured, Hello 10, Dead 40, Wait 40, Retransmit 5
oob-resync timeout 40
Hello due in 00:00:08
Supports Link-local Signaling (LLS)
Cisco NSF helper support enabled
IETF NSF helper support enabled
Index 2/2, flood queue length 0
Next 0x0(0)/0x0(0)
Last flood scan length is 1, maximum is 1
Last flood scan time is 0 msec, maximum is 0 msec
Neighbor Count is 1, Adjacent neighbor count is 1
Adjacent with neighbor 1.1.3.1 (Hello suppressed)
Suppress hello for 1 neighbor(s)Interface PID Area IP Address/Mask Cost State Nbrs F/C
Lo0 1 1 1.1.4.1/24 1 LOOP 0/0
Se1/0.1 1 1 1.1.34.2/24 64 P2P 1/1Codes: C - connected, S - static, R - RIP, M - mobile, B - BGP
D - EIGRP, EX - EIGRP external, O - OSPF, IA - OSPF inter area
N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2
E1 - OSPF external type 1, E2 - OSPF external type 2
i - IS-IS, su - IS-IS summary, L1 - IS-IS level-1, L2 - IS-IS level-2
ia - IS-IS inter area, * - candidate default, U - per-user static route
o - ODR, P - periodic downloaded static route
Gateway of last resort is not set
1.0.0.0/24 is subnetted, 6 subnets
O IA 1.1.1.0 [110/129] via 1.1.34.1, 00:01:47, Serial1/0.1
O IA 1.1.2.0 [110/129] via 1.1.34.1, 00:01:47, Serial1/0.1
O IA 1.1.3.0 [110/65] via 1.1.34.1, 00:08:02, Serial1/0.1
C 1.1.4.0 is directly connected, Loopback0
C 1.1.34.0 is directly connected, Serial1/0.1
O IA 1.1.123.0 [110/128] via 1.1.34.1, 00:08:02, Serial1/0.1'네트워크 및 서버 > 네트워크' 카테고리의 다른 글
| OSPF Stub / NSSA 실습 (0) | 2024.11.25 |
|---|---|
| OSPF Timer (0) | 2024.11.20 |
| OSPF Transit Area 이론 및 실습 (0) | 2024.11.20 |
| OSPF 실습 예제 (2) (0) | 2024.10.31 |
| OSPF (2) (0) | 2024.10.31 |
