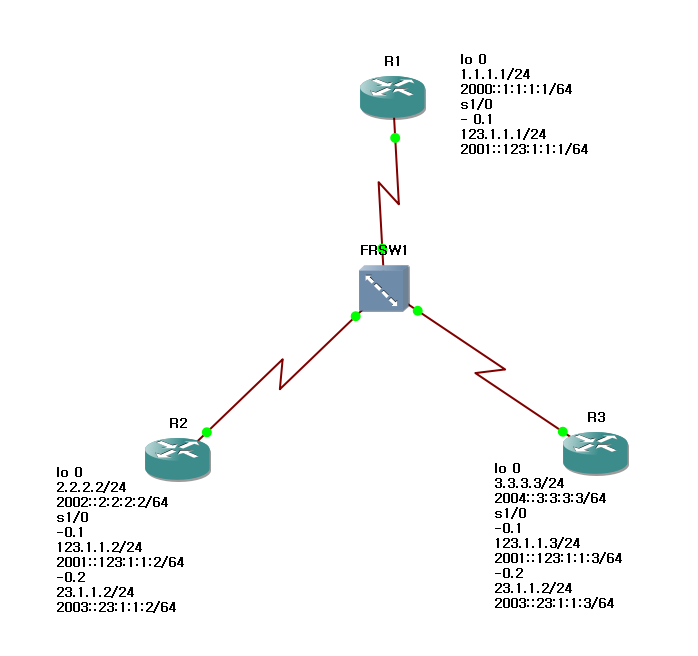

IPv6 Network Routing Protocol 실습(1)

물리랩

RIPng

R1

R1 show run

Building configuration...

Current configuration : 2163 bytes
!
upgrade fpd auto
version 12.4
service timestamps debug datetime msec
service timestamps log datetime msec
no service password-encryption
!
hostname R1
!
boot-start-marker
boot-end-marker
!
logging message-counter syslog
!
no aaa new-model
ip source-route
no ip icmp rate-limit unreachable
ip cef
!
!
!
!
no ip domain lookup
ipv6 unicast-routing
ipv6 cef
!
multilink bundle-name authenticated
!
!
voice dsp waitstate 0
!
!
!
!
!
!
!
!
!
!
!
!
!
memory-size iomem 0
archive
 log config
  hidekeys
!
!
!
!
!
ip tcp synwait-time 5
!
!
!
!
interface Loopback0
 ip address 1.1.1.1 255.255.255.0
 ipv6 address 2000::1:1:1:1/64
 ipv6 enable
 ipv6 rip 1 enable
!
interface FastEthernet0/0
 no ip address
 shutdown
 duplex half
!
interface Serial1/0
 no ip address
 encapsulation frame-relay
 serial restart-delay 0
!
interface Serial1/0.1 multipoint
 ip address 123.1.1.1 255.255.255.0
 snmp trap link-status
 ipv6 address 2001::123:1:1:1/64
 ipv6 enable
 ipv6 rip 1 enable
 frame-relay map ipv6 2001::123:1:1:3 103 broadcast
 frame-relay map ipv6 2001::123:1:1:2 102 broadcast
 frame-relay map ipv6 FE80::C803:31FF:FE98:0 103 broadcast
 frame-relay map ipv6 FE80::C802:42FF:FEE4:0 102 broadcast
 frame-relay map ip 123.1.1.3 103 broadcast
 frame-relay map ip 123.1.1.2 102 broadcast
!
interface Serial1/1
 no ip address
 shutdown
 serial restart-delay 0
!
interface Serial1/2
 no ip address
 shutdown
 serial restart-delay 0
!
interface Serial1/3
 no ip address
 shutdown
 serial restart-delay 0
!
interface Ethernet2/0
 no ip address
 shutdown
 duplex half
!
interface Ethernet2/1
 no ip address
 shutdown
 duplex half
!
interface Ethernet2/2
 no ip address
 shutdown
 duplex half
!
interface Ethernet2/3
 no ip address
 shutdown
 duplex half
!
ip forward-protocol nd
no ip http server
no ip http secure-server
!
!
!
logging alarm informational
no cdp log mismatch duplex
ipv6 router rip 1
!
!
!
!
!
!
!
!
control-plane
!
!
!
mgcp fax t38 ecm
!
!
!
!
gatekeeper
 shutdown
!
!
line con 0
 exec-timeout 0 0
 privilege level 15
 logging synchronous
 stopbits 1
line aux 0
 exec-timeout 0 0
 privilege level 15
 logging synchronous
 stopbits 1
line vty 0 4
 login
!
end

R1 show ipv6 protocol

IPv6 Routing Protocol is "connected"
IPv6 Routing Protocol is "rip 1"
  Interfaces:
    Serial1/0.1
    Loopback0
  Redistribution:
    None

R1 show ipv6 rip

RIP process "1", port 521, multicast-group FF02::9, pid 266
     Administrative distance is 120. Maximum paths is 16
     Updates every 30 seconds, expire after 180
     Holddown lasts 0 seconds, garbage collect after 120
     Split horizon is on; poison reverse is off
     Default routes are not generated
     Periodic updates 66, trigger updates 3
  Interfaces:
    Serial1/0.1
    Loopback0
  Redistribution:
    None

R1 show ipv6 route

IPv6 Routing Table - Default - 8 entries
Codes: C - Connected, L - Local, S - Static, U - Per-user Static route
       B - BGP, M - MIPv6, R - RIP, I1 - ISIS L1
       I2 - ISIS L2, IA - ISIS interarea, IS - ISIS summary, D - EIGRP
       EX - EIGRP external
       O - OSPF Intra, OI - OSPF Inter, OE1 - OSPF ext 1, OE2 - OSPF ext 2
       ON1 - OSPF NSSA ext 1, ON2 - OSPF NSSA ext 2
C   2000::/64 [0/0]
     via Loopback0, directly connected
L   2000::1:1:1:1/128 [0/0]
     via Loopback0, receive
C   2001::/64 [0/0]
     via Serial1/0.1, directly connected
L   2001::123:1:1:1/128 [0/0]
     via Serial1/0.1, receive
R   2002::/64 [120/2]
     via FE80::C802:A0FF:FEBC:0, Serial1/0.1
R   2003::/64 [120/2]
     via FE80::C802:A0FF:FEBC:0, Serial1/0.1
     via FE80::C803:7AFF:FE54:0, Serial1/0.1
R   2004::/64 [120/2]
     via FE80::C803:7AFF:FE54:0, Serial1/0.1
L   FF00::/8 [0/0]
     via Null0, receive

R2

R2 show run

Building configuration...

Current configuration : 2241 bytes
!
upgrade fpd auto
version 12.4
service timestamps debug datetime msec
service timestamps log datetime msec
no service password-encryption
!
hostname R2
!
boot-start-marker
boot-end-marker
!
logging message-counter syslog
!
no aaa new-model
ip source-route
no ip icmp rate-limit unreachable
ip cef
!
!
!
!
no ip domain lookup
ipv6 unicast-routing
ipv6 cef
!
multilink bundle-name authenticated
!
!
voice dsp waitstate 0
!
!
!
!
!
!
!
!
!
!
!
!
!
memory-size iomem 0
archive
 log config
  hidekeys
!
!
!
!
!
ip tcp synwait-time 5
!
!
!
!
interface Loopback0
 ip address 2.2.2.2 255.255.255.0
 ipv6 address 2002::2:2:2:2/64
 ipv6 enable
 ipv6 rip 1 enable
!
interface FastEthernet0/0
 no ip address
 shutdown
 duplex half
!
interface Serial1/0
 no ip address
 encapsulation frame-relay
 serial restart-delay 0
!
interface Serial1/0.1 multipoint
 ip address 123.1.1.2 255.255.255.0
 snmp trap link-status
 ipv6 address 2001::123:1:1:2/64
 ipv6 enable
 ipv6 rip 1 enable
 frame-relay map ipv6 2001::123:1:1:3 201 broadcast
 frame-relay map ipv6 2001::123:1:1:1 201 broadcast
 frame-relay map ip 123.1.1.3 201 broadcast
 frame-relay map ip 123.1.1.1 201 broadcast
!
interface Serial1/0.2 point-to-point
 ip address 23.1.1.2 255.255.255.0
 snmp trap link-status
 ipv6 address 2003::23:1:1:2/64
 ipv6 enable
 ipv6 rip 1 enable
 frame-relay interface-dlci 203
!
interface Serial1/1
 no ip address
 shutdown
 serial restart-delay 0
!
interface Serial1/2
 no ip address
 shutdown
 serial restart-delay 0
!
interface Serial1/3
 no ip address
 shutdown
 serial restart-delay 0
!
interface Ethernet2/0
 no ip address
 shutdown
 duplex half
!
interface Ethernet2/1
 no ip address
 shutdown
 duplex half
!
interface Ethernet2/2
 no ip address
 shutdown
 duplex half
!
interface Ethernet2/3
 no ip address
 shutdown
 duplex half
!
ip forward-protocol nd
no ip http server
no ip http secure-server
!
!
!
logging alarm informational
no cdp log mismatch duplex
ipv6 router rip 1
!
!
!
!
!
!
!
!
control-plane
!
!
!
mgcp fax t38 ecm
!
!
!
!
gatekeeper
 shutdown
!
!
line con 0
 exec-timeout 0 0
 privilege level 15
 logging synchronous
 stopbits 1
line aux 0
 exec-timeout 0 0
 privilege level 15
 logging synchronous
 stopbits 1
line vty 0 4
 login
!
end

R2 show ipv6 protocol

IPv6 Routing Protocol is "connected"
IPv6 Routing Protocol is "rip 1"
  Interfaces:
    Serial1/0.2
    Serial1/0.1
    Loopback0
  Redistribution:
    None

R2 show ipv6 rip

RIP process "1", port 521, multicast-group FF02::9, pid 266
     Administrative distance is 120. Maximum paths is 16
     Updates every 30 seconds, expire after 180
     Holddown lasts 0 seconds, garbage collect after 120
     Split horizon is on; poison reverse is off
     Default routes are not generated
     Periodic updates 71, trigger updates 3
  Interfaces:
    Serial1/0.2
    Serial1/0.1
    Loopback0
  Redistribution:
    None

R2 show ipv6 route

IPv6 Routing Table - Default - 9 entries
Codes: C - Connected, L - Local, S - Static, U - Per-user Static route
       B - BGP, M - MIPv6, R - RIP, I1 - ISIS L1
       I2 - ISIS L2, IA - ISIS interarea, IS - ISIS summary, D - EIGRP
       EX - EIGRP external
       O - OSPF Intra, OI - OSPF Inter, OE1 - OSPF ext 1, OE2 - OSPF ext 2
       ON1 - OSPF NSSA ext 1, ON2 - OSPF NSSA ext 2
R   2000::/64 [120/2]
     via FE80::C801:14FF:FE2C:0, Serial1/0.1
C   2001::/64 [0/0]
     via Serial1/0.1, directly connected
L   2001::123:1:1:2/128 [0/0]
     via Serial1/0.1, receive
C   2002::/64 [0/0]
     via Loopback0, directly connected
L   2002::2:2:2:2/128 [0/0]
     via Loopback0, receive
C   2003::/64 [0/0]
     via Serial1/0.2, directly connected
L   2003::23:1:1:2/128 [0/0]
     via Serial1/0.2, receive
R   2004::/64 [120/2]
     via FE80::C803:7AFF:FE54:0, Serial1/0.2
L   FF00::/8 [0/0]
     via Null0, receive

R3

R3 show run

Building configuration...

Current configuration : 2359 bytes
!
upgrade fpd auto
version 12.4
service timestamps debug datetime msec
service timestamps log datetime msec
no service password-encryption
!
hostname R3
!
boot-start-marker
boot-end-marker
!
logging message-counter syslog
!
no aaa new-model
ip source-route
no ip icmp rate-limit unreachable
ip cef
!
!
!
!
no ip domain lookup
ipv6 unicast-routing
ipv6 cef
!
multilink bundle-name authenticated
!
!
voice dsp waitstate 0
!
!
!
!
!
!
!
!
!
!
!
!
!
memory-size iomem 0
archive
 log config
  hidekeys
!
!
!
!
!
ip tcp synwait-time 5
!
!
!
!
interface Loopback0
 ip address 3.3.3.3 255.255.255.0
 ipv6 address 2004::3:3:3:3/64
 ipv6 enable
 ipv6 rip 1 enable
!
interface FastEthernet0/0
 no ip address
 shutdown
 duplex half
!
interface Serial1/0
 no ip address
 encapsulation frame-relay
 serial restart-delay 0
!
interface Serial1/0.1 multipoint
 ip address 123.1.1.3 255.255.255.0
 snmp trap link-status
 ipv6 address 2001::123:1:1:3/64
 ipv6 enable
 ipv6 rip 1 enable
 frame-relay map ipv6 FE80::C802:2FFF:FEBC:0 301 broadcast
 frame-relay map ipv6 FE80::C802:42FF:FEE4:0 301 broadcast
 frame-relay map ipv6 2001::123:1:1:2 301 broadcast
 frame-relay map ipv6 2001::123:1:1:1 301 broadcast
 frame-relay map ip 123.1.1.2 301 broadcast
 frame-relay map ip 123.1.1.1 301 broadcast
!
interface Serial1/0.2 point-to-point
 ip address 23.1.1.3 255.255.255.0
 snmp trap link-status
 ipv6 address 2003::23:1:1:3/64
 ipv6 enable
 ipv6 rip 1 enable
 frame-relay interface-dlci 302
!
interface Serial1/1
 no ip address
 shutdown
 serial restart-delay 0
!
interface Serial1/2
 no ip address
 shutdown
 serial restart-delay 0
!
interface Serial1/3
 no ip address
 shutdown
 serial restart-delay 0
!
interface Ethernet2/0
 no ip address
 shutdown
 duplex half
!
interface Ethernet2/1
 no ip address
 shutdown
 duplex half
!
interface Ethernet2/2
 no ip address
 shutdown
 duplex half
!
interface Ethernet2/3
 no ip address
 shutdown
 duplex half
!
ip forward-protocol nd
no ip http server
no ip http secure-server
!
!
!
logging alarm informational
no cdp log mismatch duplex
ipv6 router rip 1
!
!
!
!
!
!
!
!
control-plane
!
!
!
mgcp fax t38 ecm
!
!
!
!
gatekeeper
 shutdown
!
!
line con 0
 exec-timeout 0 0
 privilege level 15
 logging synchronous
 stopbits 1
line aux 0
 exec-timeout 0 0
 privilege level 15
 logging synchronous
 stopbits 1
line vty 0 4
 login
!
end

R3 show ipv6 protocol

IPv6 Routing Protocol is "connected"
IPv6 Routing Protocol is "rip 1"
  Interfaces:
    Loopback0
    Serial1/0.2
    Serial1/0.1
  Redistribution:
    None

R3 show ipv6 rip

RIP process "1", port 521, multicast-group FF02::9, pid 250
     Administrative distance is 120. Maximum paths is 16
     Updates every 30 seconds, expire after 180
     Holddown lasts 0 seconds, garbage collect after 120
     Split horizon is on; poison reverse is off
     Default routes are not generated
     Periodic updates 74, trigger updates 4
  Interfaces:
    Loopback0
    Serial1/0.2
    Serial1/0.1
  Redistribution:
    None

R3 show ipv6 route

IPv6 Routing Table - Default - 9 entries
Codes: C - Connected, L - Local, S - Static, U - Per-user Static route
       B - BGP, M - MIPv6, R - RIP, I1 - ISIS L1
       I2 - ISIS L2, IA - ISIS interarea, IS - ISIS summary, D - EIGRP
       EX - EIGRP external
       O - OSPF Intra, OI - OSPF Inter, OE1 - OSPF ext 1, OE2 - OSPF ext 2
       ON1 - OSPF NSSA ext 1, ON2 - OSPF NSSA ext 2
R   2000::/64 [120/2]
     via FE80::C801:14FF:FE2C:0, Serial1/0.1
C   2001::/64 [0/0]
     via Serial1/0.1, directly connected
L   2001::123:1:1:3/128 [0/0]
     via Serial1/0.1, receive
R   2002::/64 [120/2]
     via FE80::C802:A0FF:FEBC:0, Serial1/0.2
C   2003::/64 [0/0]
     via Serial1/0.2, directly connected
L   2003::23:1:1:3/128 [0/0]
     via Serial1/0.2, receive
C   2004::/64 [0/0]
     via Loopback0, directly connected
L   2004::3:3:3:3/128 [0/0]
     via Loopback0, receive
L   FF00::/8 [0/0]
     via Null0, receive





EIGRPv3

R1

R1 show run

Building configuration...

Current configuration : 2199 bytes
!
upgrade fpd auto
version 12.4
service timestamps debug datetime msec
service timestamps log datetime msec
no service password-encryption
!
hostname R1
!
boot-start-marker
boot-end-marker
!
logging message-counter syslog
!
no aaa new-model
ip source-route
no ip icmp rate-limit unreachable
ip cef
!
!
!
!
no ip domain lookup
ipv6 unicast-routing
ipv6 cef
!
multilink bundle-name authenticated
!
!
voice dsp waitstate 0
!
!
!
!
!
!
!
!
!
!
!
!
!
memory-size iomem 0
archive
 log config
  hidekeys
!
!
!
!
!
ip tcp synwait-time 5
!
!
!
!
interface Loopback0
 ip address 1.1.1.1 255.255.255.0
 ipv6 address 2000::1:1:1:1/64
 ipv6 enable
 ipv6 eigrp 123
!
interface FastEthernet0/0
 no ip address
 shutdown
 duplex half
!
interface Serial1/0
 no ip address
 encapsulation frame-relay
 serial restart-delay 0
!
interface Serial1/0.1 multipoint
 ip address 123.1.1.1 255.255.255.0
 snmp trap link-status
 ipv6 address 2001::123:1:1:1/64
 ipv6 enable
 ipv6 eigrp 123
 frame-relay map ipv6 2001::123:1:1:3 103 broadcast
 frame-relay map ipv6 2001::123:1:1:2 102 broadcast
 frame-relay map ipv6 FE80::C803:31FF:FE98:0 103 broadcast
 frame-relay map ipv6 FE80::C802:42FF:FEE4:0 102 broadcast
 frame-relay map ip 123.1.1.3 103 broadcast
 frame-relay map ip 123.1.1.2 102 broadcast
!
interface Serial1/1
 no ip address
 shutdown
 serial restart-delay 0
!
interface Serial1/2
 no ip address
 shutdown
 serial restart-delay 0
!
interface Serial1/3
 no ip address
 shutdown
 serial restart-delay 0
!
interface Ethernet2/0
 no ip address
 shutdown
 duplex half
!
interface Ethernet2/1
 no ip address
 shutdown
 duplex half
!
interface Ethernet2/2
 no ip address
 shutdown
 duplex half
!
interface Ethernet2/3
 no ip address
 shutdown
 duplex half
!
ip forward-protocol nd
no ip http server
no ip http secure-server
!
!
!
logging alarm informational
no cdp log mismatch duplex
ipv6 router eigrp 123
 eigrp router-id 1.1.1.1
 no shutdown
!
!
!
!
!
!
!
!
control-plane
!
!
!
mgcp fax t38 ecm
!
!
!
!
gatekeeper
 shutdown
!
!
line con 0
 exec-timeout 0 0
 privilege level 15
 logging synchronous
 stopbits 1
line aux 0
 exec-timeout 0 0
 privilege level 15
 logging synchronous
 stopbits 1
line vty 0 4
 login
!
end

R1 show ipv6 protocol

IPv6 Routing Protocol is "connected"
IPv6 Routing Protocol is "eigrp 123"
  EIGRP metric weight K1=1, K2=0, K3=1, K4=0, K5=0
  EIGRP maximum hopcount 100
  EIGRP maximum metric variance 1
  Interfaces:
    Serial1/0.1
    Loopback0
  Redistribution:
    None
  Maximum path: 16
  Distance: internal 90 external 170

R1 show ipv6 eigrp neighbor

IPv6-EIGRP neighbors for process 123
H   Address                 Interface       Hold Uptime   SRTT   RTO  Q  Seq
                                            (sec)         (ms)       Cnt Num
1   Link-local address:     Se1/0.1          174 00:02:15    1  5000  1  0
    FE80::C803:7AFF:FE54:0

R1 show ipv6 eigrp topology

IPv6-EIGRP Topology Table for AS(123)/ID(1.1.1.1)

Codes: P - Passive, A - Active, U - Update, Q - Query, R - Reply,
       r - reply Status, s - sia Status

P 2000::/64, 1 successors, FD is 128256
        via Connected, Loopback0
P 2001::/64, 1 successors, FD is 2169856
        via Connected, Serial1/0.1

R1 show ipv6 route

IPv6 Routing Table - Default - 5 entries
Codes: C - Connected, L - Local, S - Static, U - Per-user Static route
       B - BGP, M - MIPv6, R - RIP, I1 - ISIS L1
       I2 - ISIS L2, IA - ISIS interarea, IS - ISIS summary, D - EIGRP
       EX - EIGRP external
       O - OSPF Intra, OI - OSPF Inter, OE1 - OSPF ext 1, OE2 - OSPF ext 2
       ON1 - OSPF NSSA ext 1, ON2 - OSPF NSSA ext 2
C   2000::/64 [0/0]
     via Loopback0, directly connected
L   2000::1:1:1:1/128 [0/0]
     via Loopback0, receive
C   2001::/64 [0/0]
     via Serial1/0.1, directly connected
L   2001::123:1:1:1/128 [0/0]
     via Serial1/0.1, receive
L   FF00::/8 [0/0]
     via Null0, receive

R2

R2 show run

Building configuration...

Current configuration : 2274 bytes
!
upgrade fpd auto
version 12.4
service timestamps debug datetime msec
service timestamps log datetime msec
no service password-encryption
!
hostname R2
!
boot-start-marker
boot-end-marker
!
logging message-counter syslog
!
no aaa new-model
ip source-route
no ip icmp rate-limit unreachable
ip cef
!
!
!
!
no ip domain lookup
ipv6 unicast-routing
ipv6 cef
!
multilink bundle-name authenticated
!
!
voice dsp waitstate 0
!
!
!
!
!
!
!
!
!
!
!
!
!
memory-size iomem 0
archive
 log config
  hidekeys
!
!
!
!
!
ip tcp synwait-time 5
!
!
!
!
interface Loopback0
 ip address 2.2.2.2 255.255.255.0
 ipv6 address 2002::2:2:2:2/64
 ipv6 enable
 ipv6 eigrp 123
!
interface FastEthernet0/0
 no ip address
 shutdown
 duplex half
!
interface Serial1/0
 no ip address
 encapsulation frame-relay
 serial restart-delay 0
!
interface Serial1/0.1 multipoint
 ip address 123.1.1.2 255.255.255.0
 snmp trap link-status
 ipv6 address 2001::123:1:1:2/64
 ipv6 enable
 ipv6 eigrp 123
 frame-relay map ipv6 2001::123:1:1:3 201 broadcast
 frame-relay map ipv6 2001::123:1:1:1 201 broadcast
 frame-relay map ip 123.1.1.3 201 broadcast
 frame-relay map ip 123.1.1.1 201 broadcast
!
interface Serial1/0.2 point-to-point
 ip address 23.1.1.2 255.255.255.0
 snmp trap link-status
 ipv6 address 2003::23:1:1:2/64
 ipv6 enable
 ipv6 eigrp 123
 frame-relay interface-dlci 203
!
interface Serial1/1
 no ip address
 shutdown
 serial restart-delay 0
!
interface Serial1/2
 no ip address
 shutdown
 serial restart-delay 0
!
interface Serial1/3
 no ip address
 shutdown
 serial restart-delay 0
!
interface Ethernet2/0
 no ip address
 shutdown
 duplex half
!
interface Ethernet2/1
 no ip address
 shutdown
 duplex half
!
interface Ethernet2/2
 no ip address
 shutdown
 duplex half
!
interface Ethernet2/3
 no ip address
 shutdown
 duplex half
!
ip forward-protocol nd
no ip http server
no ip http secure-server
!
!
!
logging alarm informational
no cdp log mismatch duplex
ipv6 router eigrp 123
 eigrp router-id 2.2.2.2
 no shutdown
!
!
!
!
!
!
!
!
control-plane
!
!
!
mgcp fax t38 ecm
!
!
!
!
gatekeeper
 shutdown
!
!
line con 0
 exec-timeout 0 0
 privilege level 15
 logging synchronous
 stopbits 1
line aux 0
 exec-timeout 0 0
 privilege level 15
 logging synchronous
 stopbits 1
line vty 0 4
 login
!
end

R2 show ipv6 protocol

IPv6 Routing Protocol is "connected"
IPv6 Routing Protocol is "eigrp 123"
  EIGRP metric weight K1=1, K2=0, K3=1, K4=0, K5=0
  EIGRP maximum hopcount 100
  EIGRP maximum metric variance 1
  Interfaces:
    Serial1/0.1
    Serial1/0.2
    Loopback0
  Redistribution:
    None
  Maximum path: 16
  Distance: internal 90 external 170

R2 show ipv6 eigrp neighbor

IPv6-EIGRP neighbors for process 123
H   Address                 Interface       Hold Uptime   SRTT   RTO  Q  Seq
                                            (sec)         (ms)       Cnt Num
0   Link-local address:     Se1/0.1          147 00:00:32    1  2000  0  0
    FE80::C801:14FF:FE2C:0
1   Link-local address:     Se1/0.2            9 00:01:55   23   200  0  6
    FE80::C803:7AFF:FE54:0

R2 show ipv6 eigrp topology

IPv6-EIGRP Topology Table for AS(123)/ID(2.2.2.2)

Codes: P - Passive, A - Active, U - Update, Q - Query, R - Reply,
       r - reply Status, s - sia Status

P 2001::/64, 1 successors, FD is 2169856
        via Connected, Serial1/0.1
P 2002::/64, 1 successors, FD is 128256
        via Connected, Loopback0
P 2003::/64, 1 successors, FD is 2169856
        via Connected, Serial1/0.2
P 2004::/64, 1 successors, FD is 2297856
        via FE80::C803:7AFF:FE54:0 (2297856/128256), Serial1/0.2

R2 show ipv6 route

IPv6 Routing Table - Default - 8 entries
Codes: C - Connected, L - Local, S - Static, U - Per-user Static route
       B - BGP, M - MIPv6, R - RIP, I1 - ISIS L1
       I2 - ISIS L2, IA - ISIS interarea, IS - ISIS summary, D - EIGRP
       EX - EIGRP external
       O - OSPF Intra, OI - OSPF Inter, OE1 - OSPF ext 1, OE2 - OSPF ext 2
       ON1 - OSPF NSSA ext 1, ON2 - OSPF NSSA ext 2
C   2001::/64 [0/0]
     via Serial1/0.1, directly connected
L   2001::123:1:1:2/128 [0/0]
     via Serial1/0.1, receive
C   2002::/64 [0/0]
     via Loopback0, directly connected
L   2002::2:2:2:2/128 [0/0]
     via Loopback0, receive
C   2003::/64 [0/0]
     via Serial1/0.2, directly connected
L   2003::23:1:1:2/128 [0/0]
     via Serial1/0.2, receive
D   2004::/64 [90/2297856]
     via FE80::C803:7AFF:FE54:0, Serial1/0.2
L   FF00::/8 [0/0]
     via Null0, receive

R3

R3 show run

Building configuration...

Current configuration : 2392 bytes
!
upgrade fpd auto
version 12.4
service timestamps debug datetime msec
service timestamps log datetime msec
no service password-encryption
!
hostname R3
!
boot-start-marker
boot-end-marker
!
logging message-counter syslog
!
no aaa new-model
ip source-route
no ip icmp rate-limit unreachable
ip cef
!
!
!
!
no ip domain lookup
ipv6 unicast-routing
ipv6 cef
!
multilink bundle-name authenticated
!
!
voice dsp waitstate 0
!
!
!
!
!
!
!
!
!
!
!
!
!
memory-size iomem 0
archive
 log config
  hidekeys
!
!
!
!
!
ip tcp synwait-time 5
!
!
!
!
interface Loopback0
 ip address 3.3.3.3 255.255.255.0
 ipv6 address 2004::3:3:3:3/64
 ipv6 enable
 ipv6 eigrp 123
!
interface FastEthernet0/0
 no ip address
 shutdown
 duplex half
!
interface Serial1/0
 no ip address
 encapsulation frame-relay
 serial restart-delay 0
!
interface Serial1/0.1 multipoint
 ip address 123.1.1.3 255.255.255.0
 snmp trap link-status
 ipv6 address 2001::123:1:1:3/64
 ipv6 enable
 ipv6 eigrp 123
 frame-relay map ipv6 FE80::C802:2FFF:FEBC:0 301 broadcast
 frame-relay map ipv6 FE80::C802:42FF:FEE4:0 301 broadcast
 frame-relay map ipv6 2001::123:1:1:2 301 broadcast
 frame-relay map ipv6 2001::123:1:1:1 301 broadcast
 frame-relay map ip 123.1.1.2 301 broadcast
 frame-relay map ip 123.1.1.1 301 broadcast
!
interface Serial1/0.2 point-to-point
 ip address 23.1.1.3 255.255.255.0
 snmp trap link-status
 ipv6 address 2003::23:1:1:3/64
 ipv6 enable
 ipv6 eigrp 123
 frame-relay interface-dlci 302
!
interface Serial1/1
 no ip address
 shutdown
 serial restart-delay 0
!
interface Serial1/2
 no ip address
 shutdown
 serial restart-delay 0
!
interface Serial1/3
 no ip address
 shutdown
 serial restart-delay 0
!
interface Ethernet2/0
 no ip address
 shutdown
 duplex half
!
interface Ethernet2/1
 no ip address
 shutdown
 duplex half
!
interface Ethernet2/2
 no ip address
 shutdown
 duplex half
!
interface Ethernet2/3
 no ip address
 shutdown
 duplex half
!
ip forward-protocol nd
no ip http server
no ip http secure-server
!
!
!
logging alarm informational
no cdp log mismatch duplex
ipv6 router eigrp 123
 eigrp router-id 3.3.3.3
 no shutdown
!
!
!
!
!
!
!
!
control-plane
!
!
!
mgcp fax t38 ecm
!
!
!
!
gatekeeper
 shutdown
!
!
line con 0
 exec-timeout 0 0
 privilege level 15
 logging synchronous
 stopbits 1
line aux 0
 exec-timeout 0 0
 privilege level 15
 logging synchronous
 stopbits 1
line vty 0 4
 login
!
end

R3 show ipv6 protocol

IPv6 Routing Protocol is "connected"
IPv6 Routing Protocol is "eigrp 123"
  EIGRP metric weight K1=1, K2=0, K3=1, K4=0, K5=0
  EIGRP maximum hopcount 100
  EIGRP maximum metric variance 1
  Interfaces:
    Serial1/0.1
    Serial1/0.2
    Loopback0
  Redistribution:
    None
  Maximum path: 16
  Distance: internal 90 external 170

R3 show ipv6 eigrp neighbor

IPv6-EIGRP neighbors for process 123
H   Address                 Interface       Hold Uptime   SRTT   RTO  Q  Seq
                                            (sec)         (ms)       Cnt Num
1   Link-local address:     Se1/0.2           14 00:01:59 1005  5000  0  6
    FE80::C802:A0FF:FEBC:0
0   Link-local address:     Se1/0.1          144 00:02:03    1  5000  2  0
    FE80::C801:14FF:FE2C:0

R3 show ipv6 eigrp topology

IPv6-EIGRP Topology Table for AS(123)/ID(3.3.3.3)

Codes: P - Passive, A - Active, U - Update, Q - Query, R - Reply,
       r - reply Status, s - sia Status

P 2001::/64, 1 successors, FD is 2169856
        via Connected, Serial1/0.1
P 2002::/64, 1 successors, FD is 2297856, U
        via FE80::C802:A0FF:FEBC:0 (2297856/128256), Serial1/0.2
P 2003::/64, 1 successors, FD is 2169856, U
        via Connected, Serial1/0.2
P 2004::/64, 1 successors, FD is 128256
        via Connected, Loopback0

R3 show ipv6 route

IPv6 Routing Table - Default - 8 entries
Codes: C - Connected, L - Local, S - Static, U - Per-user Static route
       B - BGP, M - MIPv6, R - RIP, I1 - ISIS L1
       I2 - ISIS L2, IA - ISIS interarea, IS - ISIS summary, D - EIGRP
       EX - EIGRP external
       O - OSPF Intra, OI - OSPF Inter, OE1 - OSPF ext 1, OE2 - OSPF ext 2
       ON1 - OSPF NSSA ext 1, ON2 - OSPF NSSA ext 2
C   2001::/64 [0/0]
     via Serial1/0.1, directly connected
L   2001::123:1:1:3/128 [0/0]
     via Serial1/0.1, receive
D   2002::/64 [90/2297856]
     via FE80::C802:A0FF:FEBC:0, Serial1/0.2
C   2003::/64 [0/0]
     via Serial1/0.2, directly connected
L   2003::23:1:1:3/128 [0/0]
     via Serial1/0.2, receive
C   2004::/64 [0/0]
     via Loopback0, directly connected
L   2004::3:3:3:3/128 [0/0]
     via Loopback0, receive
L   FF00::/8 [0/0]
     via Null0, receive





OSPFv3

R1

R1 show run

Building configuration...

Current configuration : 2237 bytes
!
upgrade fpd auto
version 12.4
service timestamps debug datetime msec
service timestamps log datetime msec
no service password-encryption
!
hostname R1
!
boot-start-marker
boot-end-marker
!
logging message-counter syslog
!
no aaa new-model
ip source-route
no ip icmp rate-limit unreachable
ip cef
!
!
!
!
no ip domain lookup
ipv6 unicast-routing
ipv6 cef
!
multilink bundle-name authenticated
!
!
voice dsp waitstate 0
!
!
!
!
!
!
!
!
!
!
!
!
!
memory-size iomem 0
archive
 log config
  hidekeys
!
!
!
!
!
ip tcp synwait-time 5
!
!
!
!
interface Loopback0
 ip address 1.1.1.1 255.255.255.0
 ipv6 address 2000::1:1:1:1/64
 ipv6 enable
 ipv6 ospf 1 area 0
!
interface FastEthernet0/0
 no ip address
 shutdown
 duplex half
!
interface Serial1/0
 no ip address
 encapsulation frame-relay
 serial restart-delay 0
!
interface Serial1/0.1 multipoint
 ip address 123.1.1.1 255.255.255.0
 snmp trap link-status
 ipv6 address 2001::123:1:1:1/64
 ipv6 enable
 ipv6 ospf network broadcast
 ipv6 ospf 1 area 0
 frame-relay map ipv6 2001::123:1:1:3 103 broadcast
 frame-relay map ipv6 2001::123:1:1:2 102 broadcast
 frame-relay map ipv6 FE80::C803:31FF:FE98:0 103 broadcast
 frame-relay map ipv6 FE80::C802:42FF:FEE4:0 102 broadcast
 frame-relay map ip 123.1.1.3 103 broadcast
 frame-relay map ip 123.1.1.2 102 broadcast
!
interface Serial1/1
 no ip address
 shutdown
 serial restart-delay 0
!
interface Serial1/2
 no ip address
 shutdown
 serial restart-delay 0
!
interface Serial1/3
 no ip address
 shutdown
 serial restart-delay 0
!
interface Ethernet2/0
 no ip address
 shutdown
 duplex half
!
interface Ethernet2/1
 no ip address
 shutdown
 duplex half
!
interface Ethernet2/2
 no ip address
 shutdown
 duplex half
!
interface Ethernet2/3
 no ip address
 shutdown
 duplex half
!
ip forward-protocol nd
no ip http server
no ip http secure-server
!
!
!
logging alarm informational
no cdp log mismatch duplex
ipv6 router ospf 1
 router-id 1.1.1.1
 log-adjacency-changes
!
!
!
!
!
!
!
!
control-plane
!
!
!
mgcp fax t38 ecm
!
!
!
!
gatekeeper
 shutdown
!
!
line con 0
 exec-timeout 0 0
 privilege level 15
 logging synchronous
 stopbits 1
line aux 0
 exec-timeout 0 0
 privilege level 15
 logging synchronous
 stopbits 1
line vty 0 4
 login
!
end

R1 show ipv6 protocol

IPv6 Routing Protocol is "connected"
IPv6 Routing Protocol is "ospf 1"
  Interfaces (Area 0):
    Loopback0
    Serial1/0.1
  Redistribution:
    None

R1 show ipv6 ospf neighbor

Neighbor ID     Pri   State           Dead Time   Interface ID    Interface
3.3.3.3           0   INIT/DROTHER    00:00:32    17              Serial1/0.1
2.2.2.2           0   EXSTART/DROTHER 00:00:35    16              Serial1/0.1

R1 show ipv6 ospf database

            OSPFv3 Router with ID (1.1.1.1) (Process ID 1)

		Router Link States (Area 0)

ADV Router      Age         Seq#        Fragment ID  Link count  Bits
1.1.1.1         16          0x80000006  0            0           None

		Link (Type-8) Link States (Area 0)

ADV Router      Age         Seq#        Link ID    Interface
1.1.1.1         155         0x80000001  17         Se1/0.1

		Intra Area Prefix Link States (Area 0)

ADV Router      Age         Seq#        Link ID    Ref-lstype  Ref-LSID
1.1.1.1         155         0x80000001  0          0x2001      0

R1 show ipv6 ospf int

Loopback0 is up, line protocol is up
  Link Local Address FE80::C801:14FF:FE2C:0, Interface ID 16
  Area 0, Process ID 1, Instance ID 0, Router ID 1.1.1.1
  Network Type LOOPBACK, Cost: 1
  Loopback interface is treated as a stub Host
Serial1/0.1 is up, line protocol is up
  Link Local Address FE80::C801:14FF:FE2C:0, Interface ID 17
  Area 0, Process ID 1, Instance ID 0, Router ID 1.1.1.1
  Network Type BROADCAST, Cost: 64
  Transmit Delay is 1 sec, State DR, Priority 1
  Designated Router (ID) 1.1.1.1, local address FE80::C801:14FF:FE2C:0
  No backup designated router on this network
  Timer intervals configured, Hello 10, Dead 40, Wait 40, Retransmit 5
    Hello due in 00:00:03
  Index 1/2/2, flood queue length 0
  Next 0x0(0)/0x0(0)/0x0(0)
  Last flood scan length is 0, maximum is 0
  Last flood scan time is 0 msec, maximum is 0 msec
  Neighbor Count is 2, Adjacent neighbor count is 0
  Suppress hello for 0 neighbor(s)

R1 show ipv6 ospf int bri

Interface    PID   Area            Intf ID    Cost  State Nbrs F/C
Lo0          1     0               16         1     LOOP  0/0
Se1/0.1      1     0               17         64    DR    0/2

R1 show ipv6 route

IPv6 Routing Table - Default - 5 entries
Codes: C - Connected, L - Local, S - Static, U - Per-user Static route
       B - BGP, M - MIPv6, R - RIP, I1 - ISIS L1
       I2 - ISIS L2, IA - ISIS interarea, IS - ISIS summary, D - EIGRP
       EX - EIGRP external
       O - OSPF Intra, OI - OSPF Inter, OE1 - OSPF ext 1, OE2 - OSPF ext 2
       ON1 - OSPF NSSA ext 1, ON2 - OSPF NSSA ext 2
C   2000::/64 [0/0]
     via Loopback0, directly connected
L   2000::1:1:1:1/128 [0/0]
     via Loopback0, receive
C   2001::/64 [0/0]
     via Serial1/0.1, directly connected
L   2001::123:1:1:1/128 [0/0]
     via Serial1/0.1, receive
L   FF00::/8 [0/0]
     via Null0, receive

R2

R2 show run

Building configuration...

Current configuration : 2338 bytes
!
upgrade fpd auto
version 12.4
service timestamps debug datetime msec
service timestamps log datetime msec
no service password-encryption
!
hostname R2
!
boot-start-marker
boot-end-marker
!
logging message-counter syslog
!
no aaa new-model
ip source-route
no ip icmp rate-limit unreachable
ip cef
!
!
!
!
no ip domain lookup
ipv6 unicast-routing
ipv6 cef
!
multilink bundle-name authenticated
!
!
voice dsp waitstate 0
!
!
!
!
!
!
!
!
!
!
!
!
!
memory-size iomem 0
archive
 log config
  hidekeys
!
!
!
!
!
ip tcp synwait-time 5
!
!
!
!
interface Loopback0
 ip address 2.2.2.2 255.255.255.0
 ipv6 address 2002::2:2:2:2/64
 ipv6 enable
 ipv6 ospf 1 area 0
!
interface FastEthernet0/0
 no ip address
 shutdown
 duplex half
!
interface Serial1/0
 no ip address
 encapsulation frame-relay
 serial restart-delay 0
!
interface Serial1/0.1 multipoint
 ip address 123.1.1.2 255.255.255.0
 snmp trap link-status
 ipv6 address 2001::123:1:1:2/64
 ipv6 enable
 ipv6 ospf network broadcast
 ipv6 ospf priority 0
 ipv6 ospf 1 area 0
 frame-relay map ipv6 2001::123:1:1:3 201 broadcast
 frame-relay map ipv6 2001::123:1:1:1 201 broadcast
 frame-relay map ip 123.1.1.3 201 broadcast
 frame-relay map ip 123.1.1.1 201 broadcast
!
interface Serial1/0.2 point-to-point
 ip address 23.1.1.2 255.255.255.0
 snmp trap link-status
 ipv6 address 2003::23:1:1:2/64
 ipv6 enable
 ipv6 ospf 1 area 0
 frame-relay interface-dlci 203
!
interface Serial1/1
 no ip address
 shutdown
 serial restart-delay 0
!
interface Serial1/2
 no ip address
 shutdown
 serial restart-delay 0
!
interface Serial1/3
 no ip address
 shutdown
 serial restart-delay 0
!
interface Ethernet2/0
 no ip address
 shutdown
 duplex half
!
interface Ethernet2/1
 no ip address
 shutdown
 duplex half
!
interface Ethernet2/2
 no ip address
 shutdown
 duplex half
!
interface Ethernet2/3
 no ip address
 shutdown
 duplex half
!
ip forward-protocol nd
no ip http server
no ip http secure-server
!
!
!
logging alarm informational
no cdp log mismatch duplex
ipv6 router ospf 1
 router-id 2.2.2.2
 log-adjacency-changes
!
!
!
!
!
!
!
!
control-plane
!
!
!
mgcp fax t38 ecm
!
!
!
!
gatekeeper
 shutdown
!
!
line con 0
 exec-timeout 0 0
 privilege level 15
 logging synchronous
 stopbits 1
line aux 0
 exec-timeout 0 0
 privilege level 15
 logging synchronous
 stopbits 1
line vty 0 4
 login
!
end

R2 show ipv6 protocol

IPv6 Routing Protocol is "connected"
IPv6 Routing Protocol is "ospf 1"
  Interfaces (Area 0):
    Loopback0
    Serial1/0.1
    Serial1/0.2
  Redistribution:
    None

R2 show ipv6 ospf neighbor

Neighbor ID     Pri   State           Dead Time   Interface ID    Interface
1.1.1.1           1   EXSTART/DR      00:00:31    17              Serial1/0.1
3.3.3.3           1   FULL/  -        00:00:32    18              Serial1/0.2

R2 show ipv6 ospf database

            OSPFv3 Router with ID (2.2.2.2) (Process ID 1)

		Router Link States (Area 0)

ADV Router      Age         Seq#        Fragment ID  Link count  Bits
2.2.2.2         111         0x80000012  0            1           None
3.3.3.3         27          0x80000016  0            1           None

		Link (Type-8) Link States (Area 0)

ADV Router      Age         Seq#        Link ID    Interface
2.2.2.2         139         0x80000001  16         Se1/0.1
2.2.2.2         133         0x80000004  17         Se1/0.2
3.3.3.3         203         0x80000002  18         Se1/0.2

		Intra Area Prefix Link States (Area 0)

ADV Router      Age         Seq#        Link ID    Ref-lstype  Ref-LSID
2.2.2.2         133         0x80000008  0          0x2001      0
3.3.3.3         203         0x80000006  0          0x2001      0

R2 show ipv6 ospf int

Loopback0 is up, line protocol is up
  Link Local Address FE80::C802:A0FF:FEBC:0, Interface ID 18
  Area 0, Process ID 1, Instance ID 0, Router ID 2.2.2.2
  Network Type LOOPBACK, Cost: 1
  Loopback interface is treated as a stub Host
Serial1/0.1 is up, line protocol is up
  Link Local Address FE80::C802:A0FF:FEBC:0, Interface ID 16
  Area 0, Process ID 1, Instance ID 0, Router ID 2.2.2.2
  Network Type BROADCAST, Cost: 64
  Transmit Delay is 1 sec, State DROTHER, Priority 0
  Designated Router (ID) 1.1.1.1, local address FE80::C801:14FF:FE2C:0
  No backup designated router on this network
  Timer intervals configured, Hello 10, Dead 40, Wait 40, Retransmit 5
    Hello due in 00:00:02
  Index 1/2/2, flood queue length 0
  Next 0x0(0)/0x0(0)/0x0(0)
  Last flood scan length is 0, maximum is 0
  Last flood scan time is 0 msec, maximum is 4 msec
  Neighbor Count is 1, Adjacent neighbor count is 0
  Suppress hello for 0 neighbor(s)
Serial1/0.2 is up, line protocol is up
  Link Local Address FE80::C802:A0FF:FEBC:0, Interface ID 17
  Area 0, Process ID 1, Instance ID 0, Router ID 2.2.2.2
  Network Type POINT_TO_POINT, Cost: 64
  Transmit Delay is 1 sec, State POINT_TO_POINT,
  Timer intervals configured, Hello 10, Dead 40, Wait 40, Retransmit 5
    Hello due in 00:00:01
  Index 1/3/3, flood queue length 0
  Next 0x0(0)/0x0(0)/0x0(0)
  Last flood scan length is 1, maximum is 3
  Last flood scan time is 0 msec, maximum is 0 msec
  Neighbor Count is 1, Adjacent neighbor count is 1
    Adjacent with neighbor 3.3.3.3
  Suppress hello for 0 neighbor(s)

R2 show ipv6 ospf int bri

Interface    PID   Area            Intf ID    Cost  State Nbrs F/C
Lo0          1     0               18         1     LOOP  0/0
Se1/0.1      1     0               16         64    DROTH 0/1
Se1/0.2      1     0               17         64    P2P   1/1

R2 show ipv6 route

IPv6 Routing Table - Default - 8 entries
Codes: C - Connected, L - Local, S - Static, U - Per-user Static route
       B - BGP, M - MIPv6, R - RIP, I1 - ISIS L1
       I2 - ISIS L2, IA - ISIS interarea, IS - ISIS summary, D - EIGRP
       EX - EIGRP external
       O - OSPF Intra, OI - OSPF Inter, OE1 - OSPF ext 1, OE2 - OSPF ext 2
       ON1 - OSPF NSSA ext 1, ON2 - OSPF NSSA ext 2
C   2001::/64 [0/0]
     via Serial1/0.1, directly connected
L   2001::123:1:1:2/128 [0/0]
     via Serial1/0.1, receive
C   2002::/64 [0/0]
     via Loopback0, directly connected
L   2002::2:2:2:2/128 [0/0]
     via Loopback0, receive
C   2003::/64 [0/0]
     via Serial1/0.2, directly connected
L   2003::23:1:1:2/128 [0/0]
     via Serial1/0.2, receive
O   2004::3:3:3:3/128 [110/64]
     via FE80::C803:7AFF:FE54:0, Serial1/0.2
L   FF00::/8 [0/0]
     via Null0, receive

R3

R3 show run

Building configuration...

Current configuration : 2456 bytes
!
upgrade fpd auto
version 12.4
service timestamps debug datetime msec
service timestamps log datetime msec
no service password-encryption
!
hostname R3
!
boot-start-marker
boot-end-marker
!
logging message-counter syslog
!
no aaa new-model
ip source-route
no ip icmp rate-limit unreachable
ip cef
!
!
!
!
no ip domain lookup
ipv6 unicast-routing
ipv6 cef
!
multilink bundle-name authenticated
!
!
voice dsp waitstate 0
!
!
!
!
!
!
!
!
!
!
!
!
!
memory-size iomem 0
archive
 log config
  hidekeys
!
!
!
!
!
ip tcp synwait-time 5
!
!
!
!
interface Loopback0
 ip address 3.3.3.3 255.255.255.0
 ipv6 address 2004::3:3:3:3/64
 ipv6 enable
 ipv6 ospf 1 area 0
!
interface FastEthernet0/0
 no ip address
 shutdown
 duplex half
!
interface Serial1/0
 no ip address
 encapsulation frame-relay
 serial restart-delay 0
!
interface Serial1/0.1 multipoint
 ip address 123.1.1.3 255.255.255.0
 snmp trap link-status
 ipv6 address 2001::123:1:1:3/64
 ipv6 enable
 ipv6 ospf network broadcast
 ipv6 ospf priority 0
 ipv6 ospf 1 area 0
 frame-relay map ipv6 FE80::C802:2FFF:FEBC:0 301 broadcast
 frame-relay map ipv6 FE80::C802:42FF:FEE4:0 301 broadcast
 frame-relay map ipv6 2001::123:1:1:2 301 broadcast
 frame-relay map ipv6 2001::123:1:1:1 301 broadcast
 frame-relay map ip 123.1.1.2 301 broadcast
 frame-relay map ip 123.1.1.1 301 broadcast
!
interface Serial1/0.2 point-to-point
 ip address 23.1.1.3 255.255.255.0
 snmp trap link-status
 ipv6 address 2003::23:1:1:3/64
 ipv6 enable
 ipv6 ospf 1 area 0
 frame-relay interface-dlci 302
!
interface Serial1/1
 no ip address
 shutdown
 serial restart-delay 0
!
interface Serial1/2
 no ip address
 shutdown
 serial restart-delay 0
!
interface Serial1/3
 no ip address
 shutdown
 serial restart-delay 0
!
interface Ethernet2/0
 no ip address
 shutdown
 duplex half
!
interface Ethernet2/1
 no ip address
 shutdown
 duplex half
!
interface Ethernet2/2
 no ip address
 shutdown
 duplex half
!
interface Ethernet2/3
 no ip address
 shutdown
 duplex half
!
ip forward-protocol nd
no ip http server
no ip http secure-server
!
!
!
logging alarm informational
no cdp log mismatch duplex
ipv6 router ospf 1
 router-id 3.3.3.3
 log-adjacency-changes
!
!
!
!
!
!
!
!
control-plane
!
!
!
mgcp fax t38 ecm
!
!
!
!
gatekeeper
 shutdown
!
!
line con 0
 exec-timeout 0 0
 privilege level 15
 logging synchronous
 stopbits 1
line aux 0
 exec-timeout 0 0
 privilege level 15
 logging synchronous
 stopbits 1
line vty 0 4
 login
!
end

R3 show ipv6 protocol

IPv6 Routing Protocol is "connected"
IPv6 Routing Protocol is "ospf 1"
  Interfaces (Area 0):
    Loopback0
    Serial1/0.1
    Serial1/0.2
  Redistribution:
    None

R3 show ipv6 ospf neighbor

Neighbor ID     Pri   State           Dead Time   Interface ID    Interface
1.1.1.1           1   DOWN/DROTHER       -        17              Serial1/0.1
2.2.2.2           1   FULL/  -        00:00:39    17              Serial1/0.2

R3 show ipv6 ospf database

            OSPFv3 Router with ID (3.3.3.3) (Process ID 1)

		Router Link States (Area 0)

ADV Router      Age         Seq#        Fragment ID  Link count  Bits
2.2.2.2         115         0x80000012  0            1           None
3.3.3.3         29          0x80000016  0            1           None

		Link (Type-8) Link States (Area 0)

ADV Router      Age         Seq#        Link ID    Interface
3.3.3.3         211         0x80000001  17         Se1/0.1
2.2.2.2         137         0x80000004  17         Se1/0.2
3.3.3.3         205         0x80000002  18         Se1/0.2

		Intra Area Prefix Link States (Area 0)

ADV Router      Age         Seq#        Link ID    Ref-lstype  Ref-LSID
2.2.2.2         137         0x80000008  0          0x2001      0
3.3.3.3         205         0x80000006  0          0x2001      0

R3 show ipv6 ospf int

Loopback0 is up, line protocol is up
  Link Local Address FE80::C803:7AFF:FE54:0, Interface ID 16
  Area 0, Process ID 1, Instance ID 0, Router ID 3.3.3.3
  Network Type LOOPBACK, Cost: 1
  Loopback interface is treated as a stub Host
Serial1/0.1 is up, line protocol is up
  Link Local Address FE80::C803:7AFF:FE54:0, Interface ID 17
  Area 0, Process ID 1, Instance ID 0, Router ID 3.3.3.3
  Network Type BROADCAST, Cost: 64
  Transmit Delay is 1 sec, State DROTHER, Priority 0
  No designated router on this network
  No backup designated router on this network
  Timer intervals configured, Hello 10, Dead 40, Wait 40, Retransmit 5
    Hello due in 00:00:05
  Index 1/2/2, flood queue length 0
  Next 0x0(0)/0x0(0)/0x0(0)
  Last flood scan length is 0, maximum is 0
  Last flood scan time is 0 msec, maximum is 4 msec
  Neighbor Count is 0, Adjacent neighbor count is 0
  Suppress hello for 0 neighbor(s)
Serial1/0.2 is up, line protocol is up
  Link Local Address FE80::C803:7AFF:FE54:0, Interface ID 18
  Area 0, Process ID 1, Instance ID 0, Router ID 3.3.3.3
  Network Type POINT_TO_POINT, Cost: 64
  Transmit Delay is 1 sec, State POINT_TO_POINT,
  Timer intervals configured, Hello 10, Dead 40, Wait 40, Retransmit 5
    Hello due in 00:00:07
  Index 1/3/3, flood queue length 0
  Next 0x0(0)/0x0(0)/0x0(0)
  Last flood scan length is 1, maximum is 3
  Last flood scan time is 0 msec, maximum is 0 msec
  Neighbor Count is 1, Adjacent neighbor count is 1
    Adjacent with neighbor 2.2.2.2
  Suppress hello for 0 neighbor(s)

R3 show ipv6 ospf int bri

Interface    PID   Area            Intf ID    Cost  State Nbrs F/C
Lo0          1     0               16         1     LOOP  0/0
Se1/0.1      1     0               17         64    DROTH 0/0
Se1/0.2      1     0               18         64    P2P   1/1

R3 show ipv6 route

IPv6 Routing Table - Default - 8 entries
Codes: C - Connected, L - Local, S - Static, U - Per-user Static route
       B - BGP, M - MIPv6, R - RIP, I1 - ISIS L1
       I2 - ISIS L2, IA - ISIS interarea, IS - ISIS summary, D - EIGRP
       EX - EIGRP external
       O - OSPF Intra, OI - OSPF Inter, OE1 - OSPF ext 1, OE2 - OSPF ext 2
       ON1 - OSPF NSSA ext 1, ON2 - OSPF NSSA ext 2
C   2001::/64 [0/0]
     via Serial1/0.1, directly connected
L   2001::123:1:1:3/128 [0/0]
     via Serial1/0.1, receive
O   2002::2:2:2:2/128 [110/64]
     via FE80::C802:A0FF:FEBC:0, Serial1/0.2
C   2003::/64 [0/0]
     via Serial1/0.2, directly connected
L   2003::23:1:1:3/128 [0/0]
     via Serial1/0.2, receive
C   2004::/64 [0/0]
     via Loopback0, directly connected
L   2004::3:3:3:3/128 [0/0]
     via Loopback0, receive
L   FF00::/8 [0/0]
     via Null0, receive
