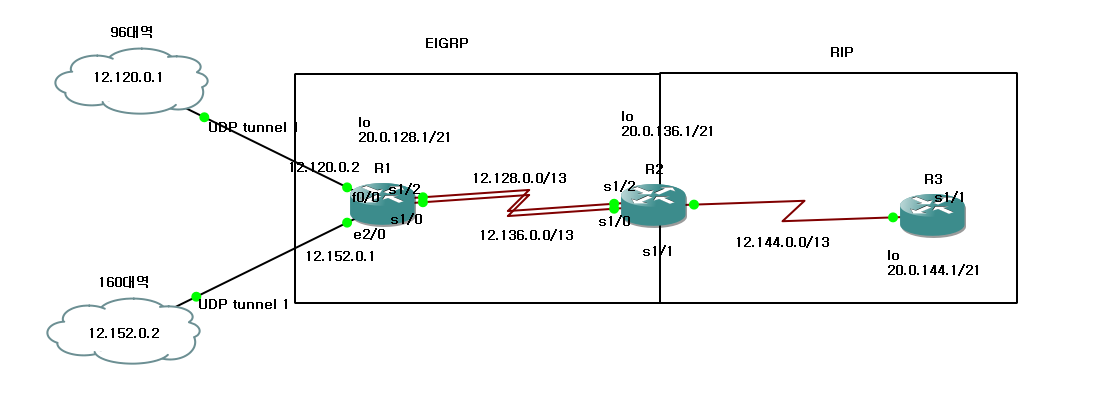

Bandwidth를 R2 s1/0에서 1000으로 변경
R2는 경계라우터로 RIP/EIGRP/Connected Redistribute
R1
더보기
R1 sh run
Building configuration...
Current configuration : 1811 bytes
!
upgrade fpd auto
version 12.4
service timestamps debug datetime msec
service timestamps log datetime msec
no service password-encryption
!
hostname R1
!
boot-start-marker
boot-end-marker
!
logging message-counter syslog
!
no aaa new-model
ip source-route
no ip icmp rate-limit unreachable
ip cef
!
!
!
!
no ip domain lookup
no ipv6 cef
!
multilink bundle-name authenticated
!
!
voice dsp waitstate 0
!
!
!
!
!
!
!
!
!
!
!
!
!
memory-size iomem 0
archive
log config
hidekeys
!
!
!
!
!
ip tcp synwait-time 5
!
!
!
!
interface Loopback10
ip address 20.0.128.1 255.255.248.0
!
interface FastEthernet0/0
ip address 12.120.0.2 255.248.0.0
duplex half
!
interface Serial1/0
ip address 12.136.0.1 255.248.0.0
serial restart-delay 0
!
interface Serial1/1
no ip address
shutdown
serial restart-delay 0
!
interface Serial1/2
ip address 12.128.0.1 255.248.0.0
serial restart-delay 0
!
interface Serial1/3
no ip address
shutdown
serial restart-delay 0
!
interface Ethernet2/0
ip address 12.152.0.1 255.248.0.0
duplex half
!
interface Ethernet2/1
no ip address
shutdown
duplex half
!
interface Ethernet2/2
no ip address
shutdown
duplex half
!
interface Ethernet2/3
no ip address
shutdown
duplex half
!
router eigrp 100
network 12.120.0.0 0.7.255.255
network 12.128.0.0 0.7.255.255
network 12.136.0.0 0.7.255.255
network 12.152.0.0 0.7.255.255
network 20.0.128.0 0.0.7.255
auto-summary
!
ip forward-protocol nd
no ip http server
no ip http secure-server
!
!
!
logging alarm informational
no cdp log mismatch duplex
!
!
!
!
!
!
!
control-plane
!
!
!
mgcp fax t38 ecm
!
!
!
!
gatekeeper
shutdown
!
!
line con 0
exec-timeout 0 0
privilege level 15
logging synchronous
stopbits 1
line aux 0
exec-timeout 0 0
privilege level 15
logging synchronous
stopbits 1
line vty 0 4
login
!
end
R1 sh ip ro
Codes: C - connected, S - static, R - RIP, M - mobile, B - BGP
D - EIGRP, EX - EIGRP external, O - OSPF, IA - OSPF inter area
N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2
E1 - OSPF external type 1, E2 - OSPF external type 2
i - IS-IS, su - IS-IS summary, L1 - IS-IS level-1, L2 - IS-IS level-2
ia - IS-IS inter area, * - candidate default, U - per-user static route
o - ODR, P - periodic downloaded static route
Gateway of last resort is not set
20.0.0.0/8 is variably subnetted, 10 subnets, 3 masks
D 20.0.0.0/8 is a summary, 00:14:54, Null0
D 20.0.64.0/21 [90/412160] via 12.120.0.1, 00:01:44, FastEthernet0/0
D EX 20.0.112.0/21 [170/2223616] via 12.120.0.1, 00:31:44, FastEthernet0/0
D 20.0.96.0/21 [90/156160] via 12.120.0.1, 00:31:44, FastEthernet0/0
D EX 20.0.104.0/21 [170/2223616] via 12.120.0.1, 00:31:44, FastEthernet0/0
D EX 20.0.144.0/21 [170/2221056] via 12.136.0.2, 00:28:29, Serial1/0
[170/2221056] via 12.128.0.2, 00:28:29, Serial1/2
C 20.0.128.0/21 is directly connected, Loopback10
D EX 20.0.136.0/21 [170/2297856] via 12.136.0.2, 00:51:08, Serial1/0
[170/2297856] via 12.128.0.2, 00:51:08, Serial1/2
D 20.0.160.0/21 [90/409600] via 12.152.0.2, 00:14:54, Ethernet2/0
D 20.0.192.0/24 [90/412160] via 12.152.0.2, 00:14:54, Ethernet2/0
12.0.0.0/8 is variably subnetted, 19 subnets, 3 masks
D 12.0.0.0/8 is a summary, 00:31:46, Null0
D 12.64.0.0/13 [90/2198016] via 12.120.0.1, 00:01:44, FastEthernet0/0
D 12.88.0.0/13 [90/284160] via 12.120.0.1, 00:20:32, FastEthernet0/0
D EX 12.80.0.0/13 [170/2249216] via 12.120.0.1, 00:01:44, FastEthernet0/0
D 12.104.0.0/13 [90/2172416] via 12.120.0.1, 00:31:44, FastEthernet0/0
D 12.96.0.0/13 [90/2172416] via 12.120.0.1, 00:31:44, FastEthernet0/0
C 12.120.0.0/13 is directly connected, FastEthernet0/0
D EX 12.112.0.0/13 [170/2223616] via 12.120.0.1, 00:31:44, FastEthernet0/0
C 12.136.0.0/13 is directly connected, Serial1/0
C 12.128.0.0/13 is directly connected, Serial1/2
C 12.152.0.0/13 is directly connected, Ethernet2/0
D EX 12.144.0.0/13 [170/2681856] via 12.136.0.2, 00:49:49, Serial1/0
[170/2681856] via 12.128.0.2, 00:49:49, Serial1/2
D 12.168.0.0/13 [90/2195456] via 12.152.0.2, 00:14:54, Ethernet2/0
D 12.160.0.0/13 [90/2195456] via 12.152.0.2, 00:14:54, Ethernet2/0
D 12.184.0.0/13 [90/284160] via 12.152.0.2, 00:14:54, Ethernet2/0
D 12.176.0.0/13 [90/2707456] via 12.152.0.2, 00:13:53, Ethernet2/0
D 12.192.0.0/24 [90/2198016] via 12.152.0.2, 00:14:54, Ethernet2/0
D 12.192.1.0/24 [90/2198016] via 12.152.0.2, 00:14:54, Ethernet2/0
D EX 12.192.2.0/24 [170/2249216] via 12.152.0.2, 00:14:54, Ethernet2/0R1 sh ip pro
Routing Protocol is "eigrp 100"
Outgoing update filter list for all interfaces is not set
Incoming update filter list for all interfaces is not set
Default networks flagged in outgoing updates
Default networks accepted from incoming updates
EIGRP metric weight K1=1, K2=0, K3=1, K4=0, K5=0
EIGRP maximum hopcount 100
EIGRP maximum metric variance 1
Redistributing: eigrp 100
EIGRP NSF-aware route hold timer is 240s
Automatic network summarization is in effect
Automatic address summarization:
20.0.0.0/8 for Serial1/2, Serial1/0, FastEthernet0/0
Ethernet2/0
Summarizing with metric 128256
12.0.0.0/8 for Loopback10
Summarizing with metric 28160
Maximum path: 4
Routing for Networks:
12.120.0.0/13
12.128.0.0/13
12.136.0.0/13
12.152.0.0/13
20.0.128.0/21
Routing Information Sources:
Gateway Distance Last Update
(this router) 90 00:14:54
12.120.0.1 90 00:01:44
12.136.0.2 90 00:01:44
12.128.0.2 90 00:01:44
12.152.0.2 90 00:01:44
Distance: internal 90 external 170
R2
더보기
R2 sh run
Building configuration...
Current configuration : 1883 bytes
!
upgrade fpd auto
version 12.4
service timestamps debug datetime msec
service timestamps log datetime msec
no service password-encryption
!
hostname R2
!
boot-start-marker
boot-end-marker
!
logging message-counter syslog
!
no aaa new-model
ip source-route
no ip icmp rate-limit unreachable
ip cef
!
!
!
!
no ip domain lookup
no ipv6 cef
!
multilink bundle-name authenticated
!
!
voice dsp waitstate 0
!
!
!
!
!
!
!
!
!
!
!
!
!
memory-size iomem 0
archive
log config
hidekeys
!
!
!
!
!
ip tcp synwait-time 5
!
!
!
!
interface Loopback100
ip address 20.0.136.1 255.255.248.0
!
interface FastEthernet0/0
no ip address
shutdown
duplex half
!
interface Serial1/0
bandwidth 1000
ip address 12.136.0.2 255.248.0.0
serial restart-delay 0
!
interface Serial1/1
ip address 12.144.0.1 255.248.0.0
serial restart-delay 0
!
interface Serial1/2
ip address 12.128.0.2 255.248.0.0
serial restart-delay 0
!
interface Serial1/3
no ip address
shutdown
serial restart-delay 0
!
interface Ethernet2/0
no ip address
shutdown
duplex half
!
interface Ethernet2/1
no ip address
shutdown
duplex half
!
interface Ethernet2/2
no ip address
shutdown
duplex half
!
interface Ethernet2/3
no ip address
shutdown
duplex half
!
router eigrp 100
redistribute connected
redistribute rip metric 1500 10 255 10 1500
network 12.128.0.0 0.7.255.255
network 12.136.0.0 0.7.255.255
auto-summary
!
router rip
version 2
redistribute connected
redistribute eigrp 100
network 12.0.0.0
!
ip forward-protocol nd
no ip http server
no ip http secure-server
!
!
!
logging alarm informational
no cdp log mismatch duplex
!
!
!
!
!
!
!
control-plane
!
!
!
mgcp fax t38 ecm
!
!
!
!
gatekeeper
shutdown
!
!
line con 0
exec-timeout 0 0
privilege level 15
logging synchronous
stopbits 1
line aux 0
exec-timeout 0 0
privilege level 15
logging synchronous
stopbits 1
line vty 0 4
login
!
end
R2 sh ip ro
Codes: C - connected, S - static, R - RIP, M - mobile, B - BGP
D - EIGRP, EX - EIGRP external, O - OSPF, IA - OSPF inter area
N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2
E1 - OSPF external type 1, E2 - OSPF external type 2
i - IS-IS, su - IS-IS summary, L1 - IS-IS level-1, L2 - IS-IS level-2
ia - IS-IS inter area, * - candidate default, U - per-user static route
o - ODR, P - periodic downloaded static route
Gateway of last resort is not set
20.0.0.0/8 is variably subnetted, 3 subnets, 2 masks
D 20.0.0.0/8 [90/2297856] via 12.128.0.1, 00:35:06, Serial1/2
R 20.0.144.0/21 [120/1] via 12.144.0.2, 00:00:08, Serial1/1
C 20.0.136.0/21 is directly connected, Loopback100
12.0.0.0/8 is variably subnetted, 18 subnets, 2 masks
D 12.64.0.0/13 [90/2710016] via 12.128.0.1, 00:01:48, Serial1/2
D 12.88.0.0/13 [90/2198016] via 12.128.0.1, 00:20:35, Serial1/2
D EX 12.80.0.0/13 [170/2761216] via 12.128.0.1, 00:01:48, Serial1/2
D 12.104.0.0/13 [90/2684416] via 12.128.0.1, 00:30:38, Serial1/2
D 12.96.0.0/13 [90/2684416] via 12.128.0.1, 00:30:38, Serial1/2
D 12.120.0.0/13 [90/2172416] via 12.128.0.1, 00:30:40, Serial1/2
D EX 12.112.0.0/13 [170/2735616] via 12.128.0.1, 00:30:38, Serial1/2
C 12.136.0.0/13 is directly connected, Serial1/0
C 12.128.0.0/13 is directly connected, Serial1/2
D 12.152.0.0/13 [90/2195456] via 12.128.0.1, 00:16:57, Serial1/2
C 12.144.0.0/13 is directly connected, Serial1/1
D 12.168.0.0/13 [90/2707456] via 12.128.0.1, 00:14:58, Serial1/2
D 12.160.0.0/13 [90/2707456] via 12.128.0.1, 00:14:58, Serial1/2
D 12.184.0.0/13 [90/2198016] via 12.128.0.1, 00:14:58, Serial1/2
D 12.176.0.0/13 [90/3219456] via 12.128.0.1, 00:13:57, Serial1/2
D 12.192.0.0/24 [90/2710016] via 12.128.0.1, 00:14:58, Serial1/2
D 12.192.1.0/24 [90/2710016] via 12.128.0.1, 00:14:58, Serial1/2
D EX 12.192.2.0/24 [170/2761216] via 12.128.0.1, 00:14:58, Serial1/2R2 sh ip pro
Routing Protocol is "rip"
Outgoing update filter list for all interfaces is not set
Incoming update filter list for all interfaces is not set
Sending updates every 30 seconds, next due in 24 seconds
Invalid after 180 seconds, hold down 180, flushed after 240
Redistributing: connected, rip, eigrp 100
Default version control: send version 2, receive version 2
Interface Send Recv Triggered RIP Key-chain
Serial1/0 2 2
Serial1/1 2 2
Serial1/2 2 2
Automatic network summarization is in effect
Maximum path: 4
Routing for Networks:
12.0.0.0
Routing Information Sources:
Gateway Distance Last Update
12.144.0.2 120 00:00:09
Distance: (default is 120)
Routing Protocol is "eigrp 100"
Outgoing update filter list for all interfaces is not set
Incoming update filter list for all interfaces is not set
Default networks flagged in outgoing updates
Default networks accepted from incoming updates
EIGRP metric weight K1=1, K2=0, K3=1, K4=0, K5=0
EIGRP maximum hopcount 100
EIGRP maximum metric variance 1
Redistributing: connected, rip, eigrp 100
EIGRP NSF-aware route hold timer is 240s
Automatic network summarization is in effect
Maximum path: 4
Routing for Networks:
12.128.0.0/13
12.136.0.0/13
Routing Information Sources:
Gateway Distance Last Update
12.136.0.1 90 00:01:49
12.128.0.1 90 00:01:49
Distance: internal 90 external 170
R3
더보기
R3 sh run
Building configuration...
Current configuration : 1667 bytes
!
upgrade fpd auto
version 12.4
service timestamps debug datetime msec
service timestamps log datetime msec
no service password-encryption
!
hostname R3
!
boot-start-marker
boot-end-marker
!
logging message-counter syslog
!
no aaa new-model
ip source-route
no ip icmp rate-limit unreachable
ip cef
!
!
!
!
no ip domain lookup
no ipv6 cef
!
multilink bundle-name authenticated
!
!
voice dsp waitstate 0
!
!
!
!
!
!
!
!
!
!
!
!
!
memory-size iomem 0
archive
log config
hidekeys
!
!
!
!
!
ip tcp synwait-time 5
!
!
!
!
interface Loopback10
ip address 20.0.144.1 255.255.248.0
!
interface FastEthernet0/0
no ip address
shutdown
duplex half
!
interface Serial1/0
no ip address
shutdown
serial restart-delay 0
!
interface Serial1/1
ip address 12.144.0.2 255.248.0.0
serial restart-delay 0
!
interface Serial1/2
no ip address
shutdown
serial restart-delay 0
!
interface Serial1/3
no ip address
shutdown
serial restart-delay 0
!
interface Ethernet2/0
no ip address
shutdown
duplex half
!
interface Ethernet2/1
no ip address
shutdown
duplex half
!
interface Ethernet2/2
no ip address
shutdown
duplex half
!
interface Ethernet2/3
no ip address
shutdown
duplex half
!
router rip
version 2
network 12.0.0.0
network 20.0.0.0
no auto-summary
!
ip forward-protocol nd
no ip http server
no ip http secure-server
!
!
!
logging alarm informational
no cdp log mismatch duplex
!
!
!
!
!
!
!
control-plane
!
!
!
mgcp fax t38 ecm
!
!
!
!
gatekeeper
shutdown
!
!
line con 0
exec-timeout 0 0
privilege level 15
logging synchronous
stopbits 1
line aux 0
exec-timeout 0 0
privilege level 15
logging synchronous
stopbits 1
line vty 0 4
login
!
end
R3 sh ip ro
Codes: C - connected, S - static, R - RIP, M - mobile, B - BGP
D - EIGRP, EX - EIGRP external, O - OSPF, IA - OSPF inter area
N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2
E1 - OSPF external type 1, E2 - OSPF external type 2
i - IS-IS, su - IS-IS summary, L1 - IS-IS level-1, L2 - IS-IS level-2
ia - IS-IS inter area, * - candidate default, U - per-user static route
o - ODR, P - periodic downloaded static route
Gateway of last resort is not set
20.0.0.0/8 is variably subnetted, 2 subnets, 2 masks
R 20.0.0.0/8 [120/1] via 12.144.0.1, 00:00:10, Serial1/1
C 20.0.144.0/21 is directly connected, Loopback10
12.0.0.0/13 is subnetted, 3 subnets
R 12.136.0.0 [120/1] via 12.144.0.1, 00:00:10, Serial1/1
R 12.128.0.0 [120/1] via 12.144.0.1, 00:00:10, Serial1/1
C 12.144.0.0 is directly connected, Serial1/1R3 sh ip pro
Routing Protocol is "rip"
Outgoing update filter list for all interfaces is not set
Incoming update filter list for all interfaces is not set
Sending updates every 30 seconds, next due in 25 seconds
Invalid after 180 seconds, hold down 180, flushed after 240
Redistributing: rip
Default version control: send version 2, receive version 2
Interface Send Recv Triggered RIP Key-chain
Serial1/1 2 2
Loopback10 2 2
Automatic network summarization is not in effect
Maximum path: 4
Routing for Networks:
12.0.0.0
20.0.0.0
Routing Information Sources:
Gateway Distance Last Update
12.144.0.1 120 00:00:10
Distance: (default is 120)
'네트워크 및 서버 > 네트워크' 카테고리의 다른 글
| UCMP, EIGRP 인증 실습 (0) | 2024.10.07 |
|---|---|
| ECMP/UCMP, EIGRP 인증 (0) | 2024.10.07 |
| EIGRP(3) (0) | 2024.10.01 |
| EIGRP - SIA (0) | 2024.10.01 |
| EIGRP 실습 (2) (0) | 2024.09.27 |
